RECEPTION - MODE: ANT
This configuration allows to receive RF signals from remote antennas.

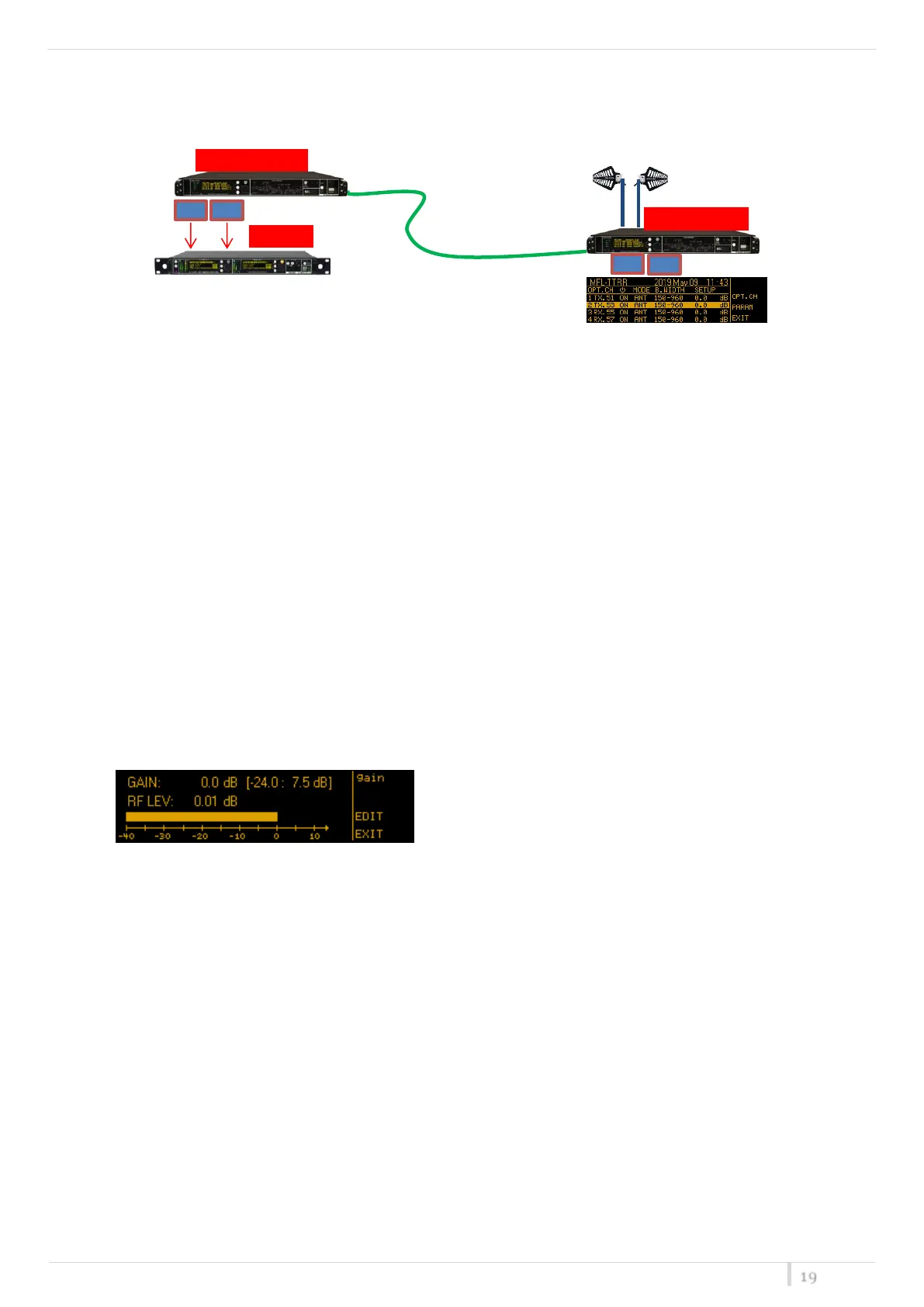

Above an example of reception of 2 diversity remote antennas.
In this configuration in the remote area 2 antennas are connected to 2 Tx optical module and the MUX combines
the optical signal in one fiber. In the local area the DEMUX split the optical signal to 2 RX opt. modules which convert
it into RF. Next, the RF signals are connected to the receiver.
System setup and configuration:
REMOTE AREA
Connect the 2 antennas to the 2 TX optical modules
Configure the 2 TX opt. modules in MODE ANT
Enabled filter on each TX opt. modules using “OPT. CHANNEL > Filter” or “B.WIDTH” menu.
connect the single mode fiber SC/APC between local MFL and remote MFL
If used antennas with booster or booster:
o enabled Booster in the “OPT. CHANNEL > Booster” menu
o set the RF Gain using “OPT. CHANNEL > Gain” o “SETUP” menu
NOTE: set the Gain in order to work at 0dB as maximum level in the RF BAR (e.g. when you have the
microphone close to the antenna).
REMOTE AREA
Configure the 2 RX opt. modules in MODE ANT
