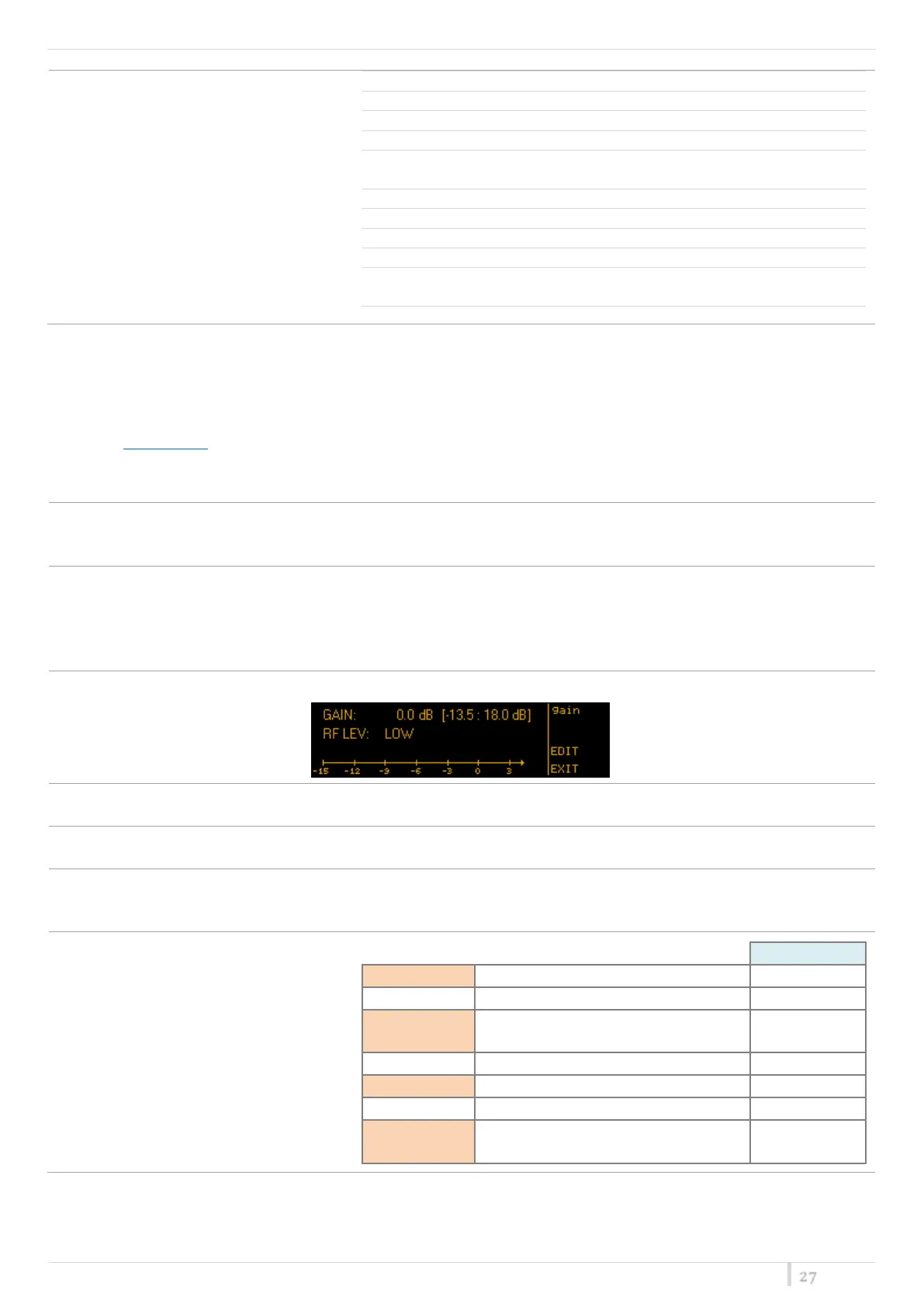

WisyCom MFL - RX LINK MENU; RX Link Configuration; Receiver Parameters; TRANSMITTER PARAMETERS

MFL User Manual
27
Transmitter
param:
here it’s possible to see all
the transmitter
parameters:
Example
ID
ID of the transmitter
OTM001
Serial
Serial number of the transmitter
T1845210
TX laser current
Current measured
34.08 mA
Current limits
Laser current working range
10.0mA -
50.0mA
Optical power
Transmission optical power
2.0 mW
Temperature
Working temperature
39°C
Offset gain
Offset gain correction
0.0 dB
Wavelength
Optical wavelength
1510nm
Life time
Life time of the device
3 d - 00 h - 49
m
RX Link menu
From the Main screen, pushing the rotary knob, it’s possible to enter on the selection screen and then, pushing the
upper right button on the desiderate receiver module, it’s possible to enter on the RX Link menu:
Status:
status of the transmitter
(default ON)
Mode:
working mode selection:
- ANT for remote antenna reception
- IFB for remote intercom in isofrequency areas applications
- 1ifb/2ifB/3ifb/4ifB for multicarriers IFB transmission
(default ANT mode)
Gain:
settable gain from -13.5 to 18.0dB with step of 0.5dB. (typ.)
(default 0.0dB)
Failsafe:
to enable or disable the Failsafe option
(default disabled)
Optical
power:
this parameter show the received optical power
Optical
pwr. corr.:
this option can be enabled to ensure that, in case in changes of optical power, the overall gain of the
system remains unchanged (to keep the gain in the RF output at 0dB).
(default ON)
Receiver
param:
here it’s possible to see all
the receiver parameters:
Example
ID
ID of the receiver
ORM001
Serial
Serial number of the receiver
T1841930
Opt rx pwr
limits
Optical power working limits
0.3mW –
3.0mW
Temperature
Working temperature
NA
Offset gain
Offset gain of the module
0.0 dB
Wavelength
Optical wavelength
1550nm
Life time
Life time of the device
3 d - 00 h - 49
m
