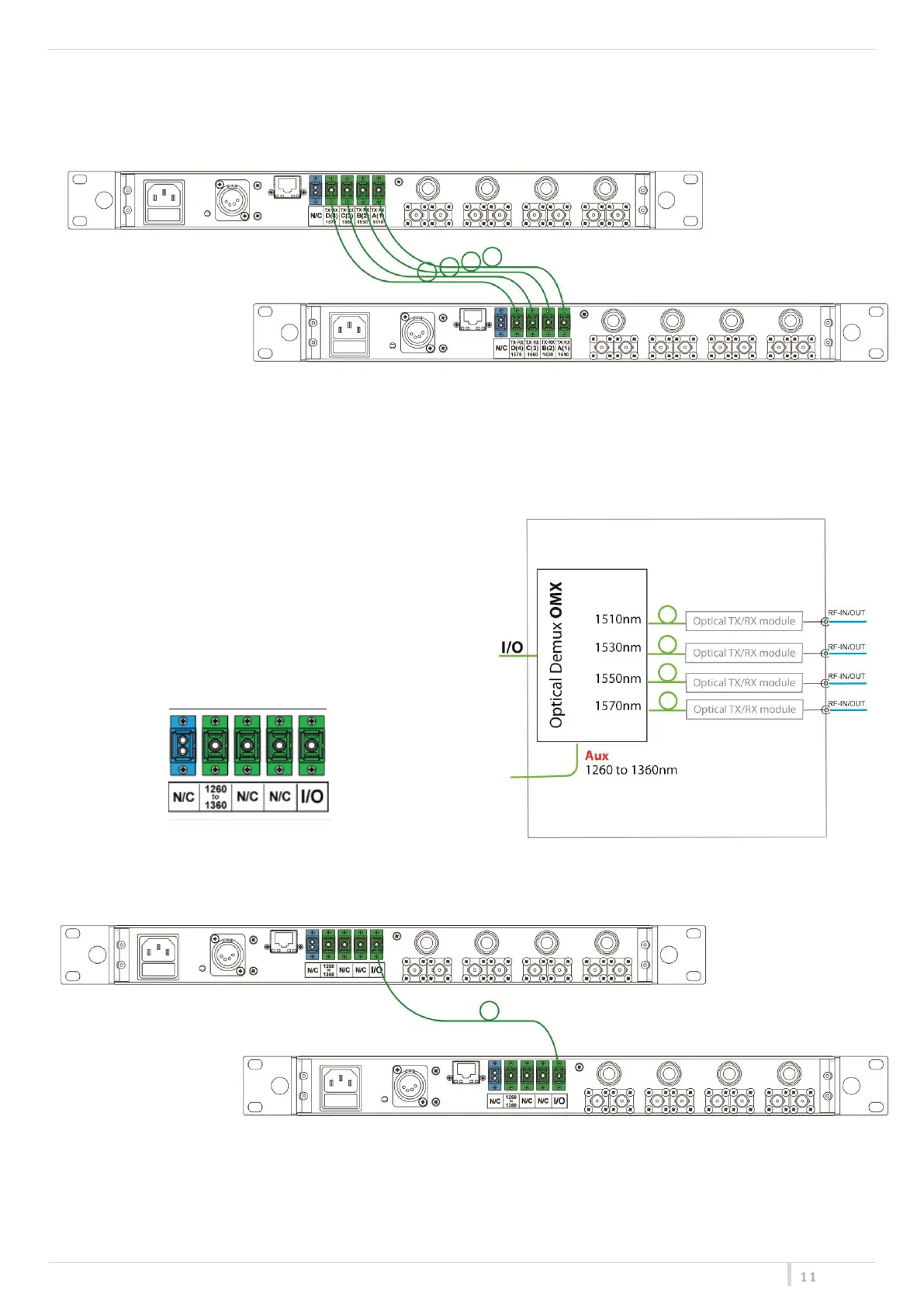

Link without MUX/DEMUX Module
Optical link without MUX/DEMUX Module requires one SC/APC single mode fiber to link each TX/RX module (up to 4
fibers)
Optical MUX/DEMUX Module
Thanks to the optical MUX/DEMUX module it is possible to carry with a single fiber several optical signals.
OMX option
With OMX option the MUX/DEMUX module combine/split
o 4 optical signals related to RF over fiber
(1510nm/1530/1550/1570nm)
o ausiliary optical signal in the second
window “1300 WideBand” to embed
other optical signal in range 1260÷1360nm
(e. g. Optical signal from Camera)
Optical connections:
