DC Option
This option adds a DC power supply module on MFL.
Connector: XLR-4M
pin1: GND
pin2: NC
pin3: NC
pin4: VDC (10-28Vdc, max 5A)
N48 Option

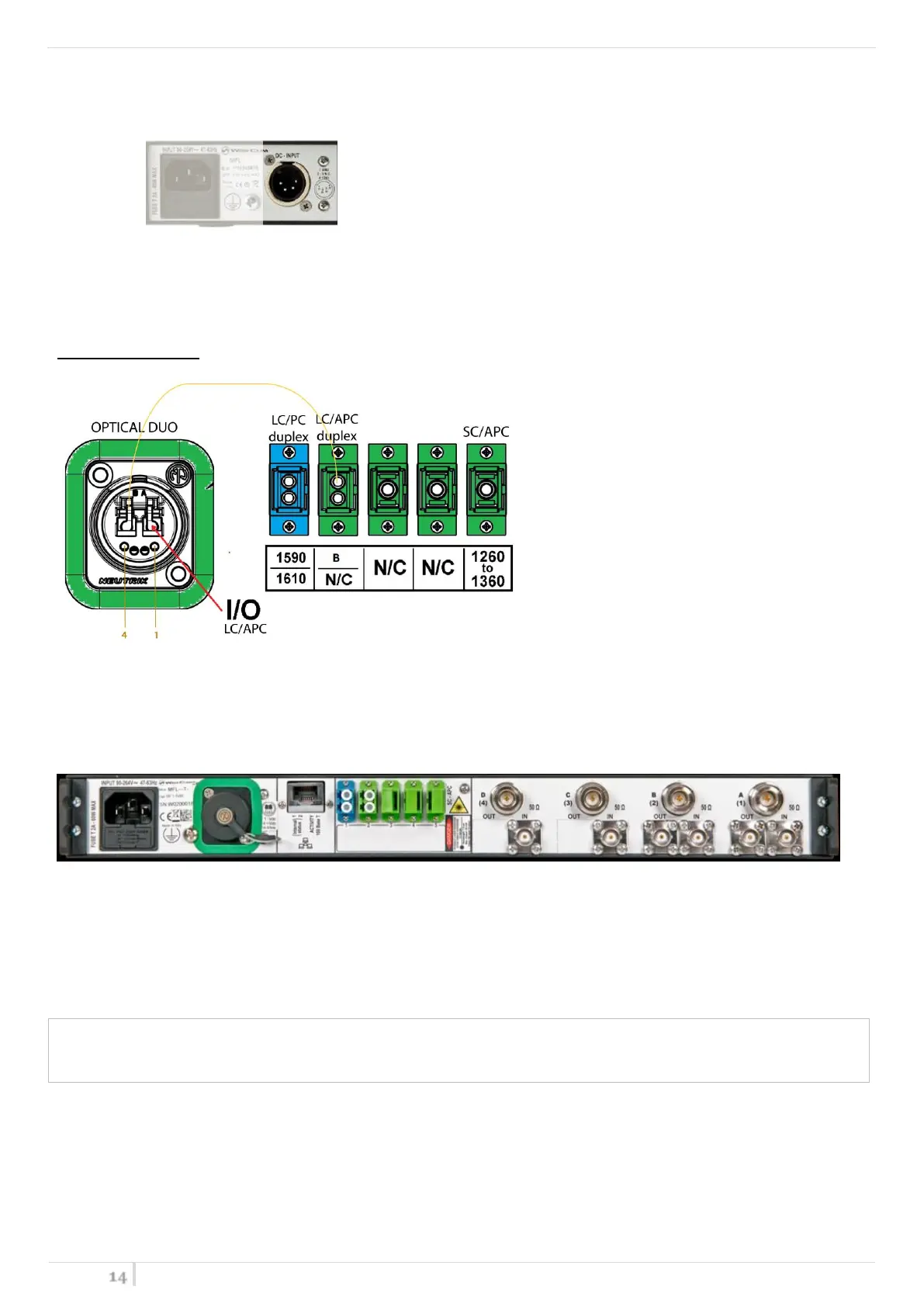

Option N48 mounts an Neutrik opticalCON DUO connector for fiber and DC power supply.
Optical connections:
DC input
18÷50Vdc
pin 1: -Vdc
pin2: +Vdc
OPTICAL DUO connector:
“A” is connected to the main fiber (I/O)
“B” is linked to the LC/APC connector in the rear panel (as aux port)
V48 Option
Option V48 allows to power the MFL with DC input 18÷50Vdc.
To sum up:
option DC: DC input 10÷28Vdc, XLR-4 connector
option V48: DC input 18÷50Vdc, XLR-4 connector
option N48: DC input 18÷50Vdc, opticalCON DUO Neutrik connector for fiber and DC power supply
