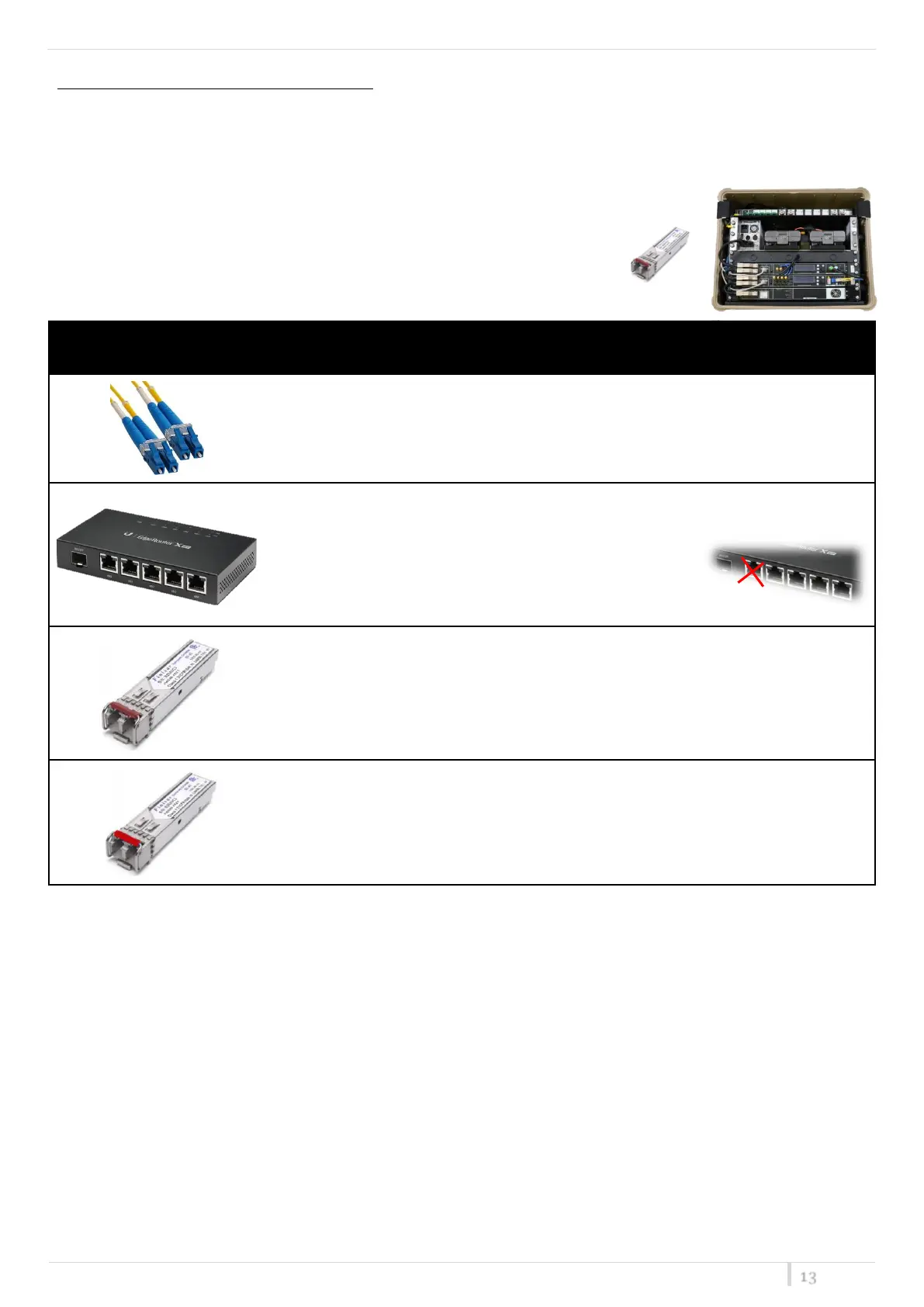

NOTE of Ethernet Data connection with OMS:
Use LC/PC-LC/PC patches to connect 1590nm and 1610nm data ports of MFL to the SFP modules of Ethernet switch.
Please, pay attention on TX or RX wavelength. For a proper use, it is necessary to cross one of the LC/PC-LC/PC blue
patch cords.
Fiberbox BX2 system uses SFP module TX@1610nm therefore Wisycom
suggests to use the SFP module with TX@1590nm in the LOCAL AREA.
patch duplex LC-PC to LC-PC length 3mt
SWITCH 5 PORTS 10/100/1000 + SFP slot, UBIQUITY ER-X-SFP
DO NOT connect ethernet cable
Ubiquity switch port [eth0] as it is for
monitoring (not switched)
CWDM SFP MODULE 1610nm BROWN 1000BASE BI-DIRECTIONAL
CWDM SFP MODULE 1590nm RED 1000BASE BI-DIRECTTIONAL
