Optical receiver and transmitter modules
Optical RX module is designed to convert optical signal into RF signal while Optical TX module converts RF signal to
optical signal.
RX and TX modules can be used for both RECEPTION AND TRANSMISSION SYSTEMS.

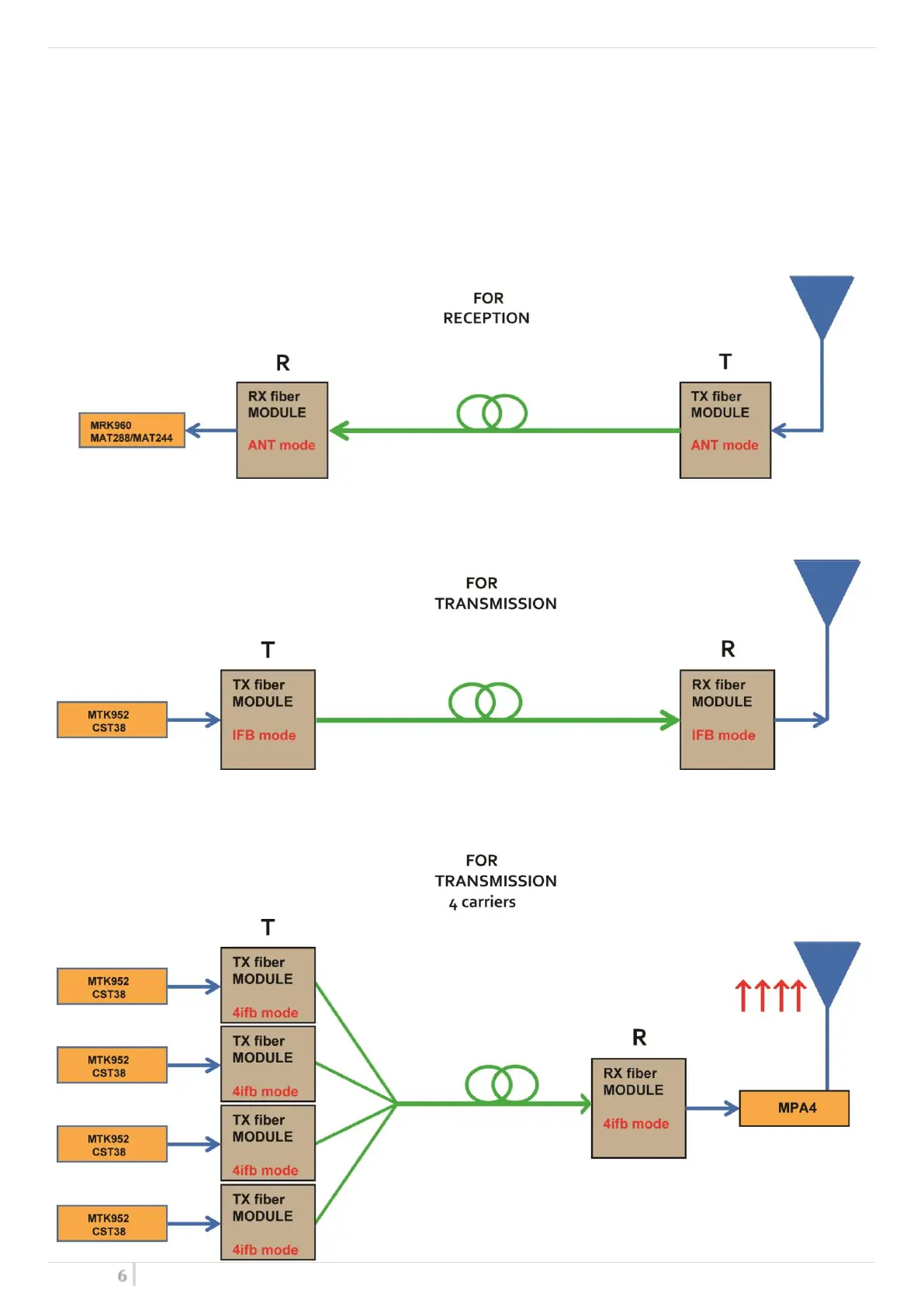

When they are used for reception of RF signal from one receiving antenna to a receiver or combiner, both RX and
TX modules have to be configured in “ANT” mode
When they are used for transmission of RF signal from one transmitter to an antenna, both RX and TX modules have
to be configured in “IFB” mode
When they are used for transmission of RF signal from <n> transmitters to an antenna, both RX and TX modules
have to be configured in “<n>ifb” mode. Below the example for 4 carriers (4ifb mode)
