WisyCom MFL - MODULAR SYSTEM CONFIGURATION; Mainboard and Modules; Optional Modules

MFL User Manual
5
Following the main code and option that can build up a MFL system:
Code
Description
❶
MFL [BASE]
WIDEBAND RF OVER FIBER MAINBOARD
19' 1U Rack units , aluminium frame
Oled display - Ethernet - failsafe switch - realtime clock
AC Powered 230V
❷
RX Module
Optical RX module for MFL (CWDM)
❸
TX Module
Laser TX module for MFL (CWDM), wavelength 1510/1530/1550/1570 nm
❹
DC
DC power supply (10÷28Vdc) on XLR-4M connector
N48
Neutrik OPTICAL DUO connector for fiber and DC power supply (15÷48Vdc)
V48
DC power supply (15÷48Vdc) on XLR-4M connector
SPLxx
Optical splitter option [1:2],[1:3],[1:4]
Optional
MUX
❺
OMX
Module Mux/Demux for 1:4 CWDM
OMS
Module Mux/Demux for 1:6 CWDM
Filter
❻
BF1 (old)
RF filter 25MHz tuning range over 404÷788 MHz
F41
Tunable filter 410-730MHz, 40MHz of Bandwidth,
Selectable Filter HP: 410/470/510 MHz + LP: 600/700/810 MHz,
Fixed Filter 940 ÷ 960 MHz (Europe/Usa)
F42
Tunable filter 410-730MHz, 40MHz of Bandwidth,
Selectable Filter HP: 470/520/550 MHz + LP: 617/662/698 MHz,
Fixed Filter 940 ÷ 960 MHz (Europe/Usa)
F45
Tunable filter 410-730MHz, 40MHz of Bandwidth,
Selectable Filter HP: 410/470/510 MHz + LP: 600/714/810 MHz,
Fixed Filter 806 ÷ 810MHz (for Japan)
①
④
⑤
⑥
⑥
②
③
②
③
②
③
②
③
Max 4 optical
modules (TX/RX)
*

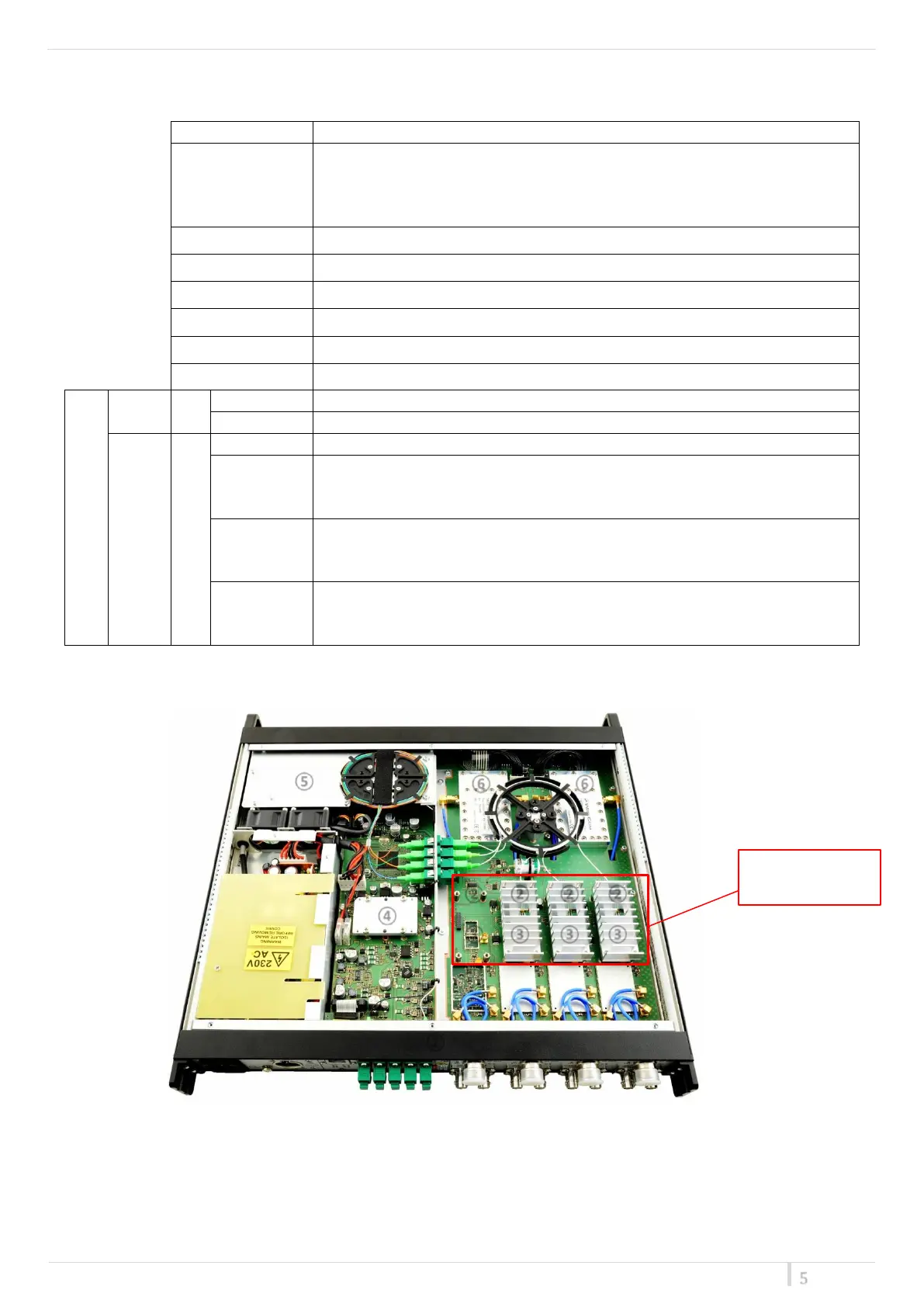

* The images are purely for information. This represent one of
the possible configurations
