Witschi Watch Expert - Connections and Interfaces

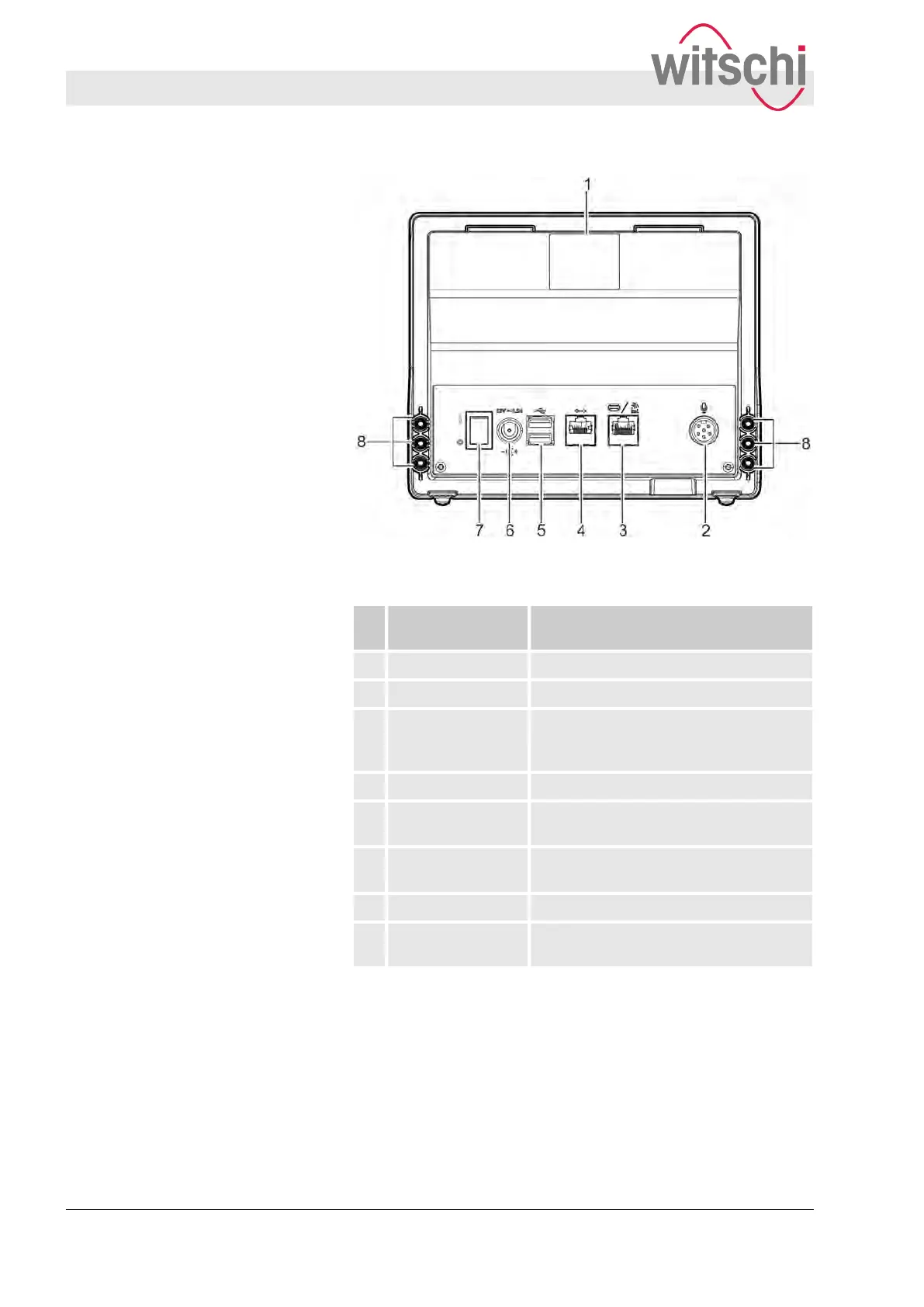

Fig. 2: Rear
No
.
Designation Function
1 Rating plate
Identifying the device
Ä page 20
2 Microphone socket Connection socket for the microphone
3 Printer port
(RS232)/connec-
tion for calibration
n Connection for the thermal printer
4 Ethernet interface Connection for future applications
5 2x USB connec-
tions
Connections for USB sticks
6 Power supply Connection socket for the power supply
unit
7 [I/O] switch Switches the Watch Expert on/off
8 Openings for the
stand
Openings for inserting the stand, in 6
dif
ferent positions
Connections and interfaces
Product description
