1.2 Microphone

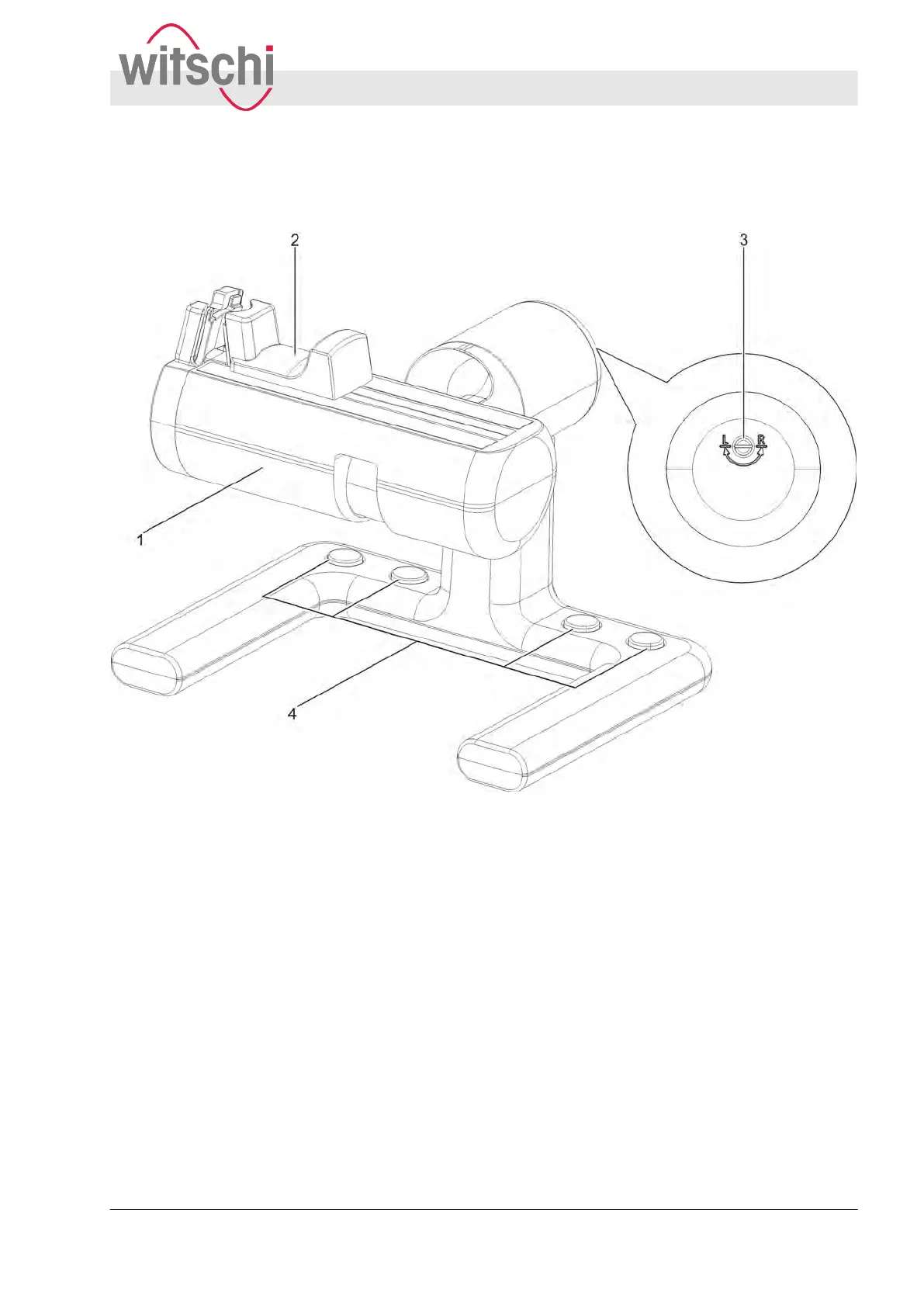

Fig. 3: Microphone
1 Pivoting microphone
2 Clamping jaws
3 Switching screw for left/right-handed user
adjustment
4 Programmable keys
The pivoting microphone (Fig. 3/1) provides 12 different test posi-
tions for measuring mechanical watches. The neoprene clamping
jaw (Fig. 3/2) can be adjusted in accordance with the size of the
watch. T
o ensure a stable hand resting position, the microphone
can be adjusted for left/right-hand users with the aid of the
switching screw (Fig. 3/3). The freely programmable keys (Fig. 3/4)
are used to navigate through the menu. Alternatively, the keys can
be assigned an individual function.
Microphone
Product description
Microphone
27.02.2018 Precision measuring device Watch ... 9
