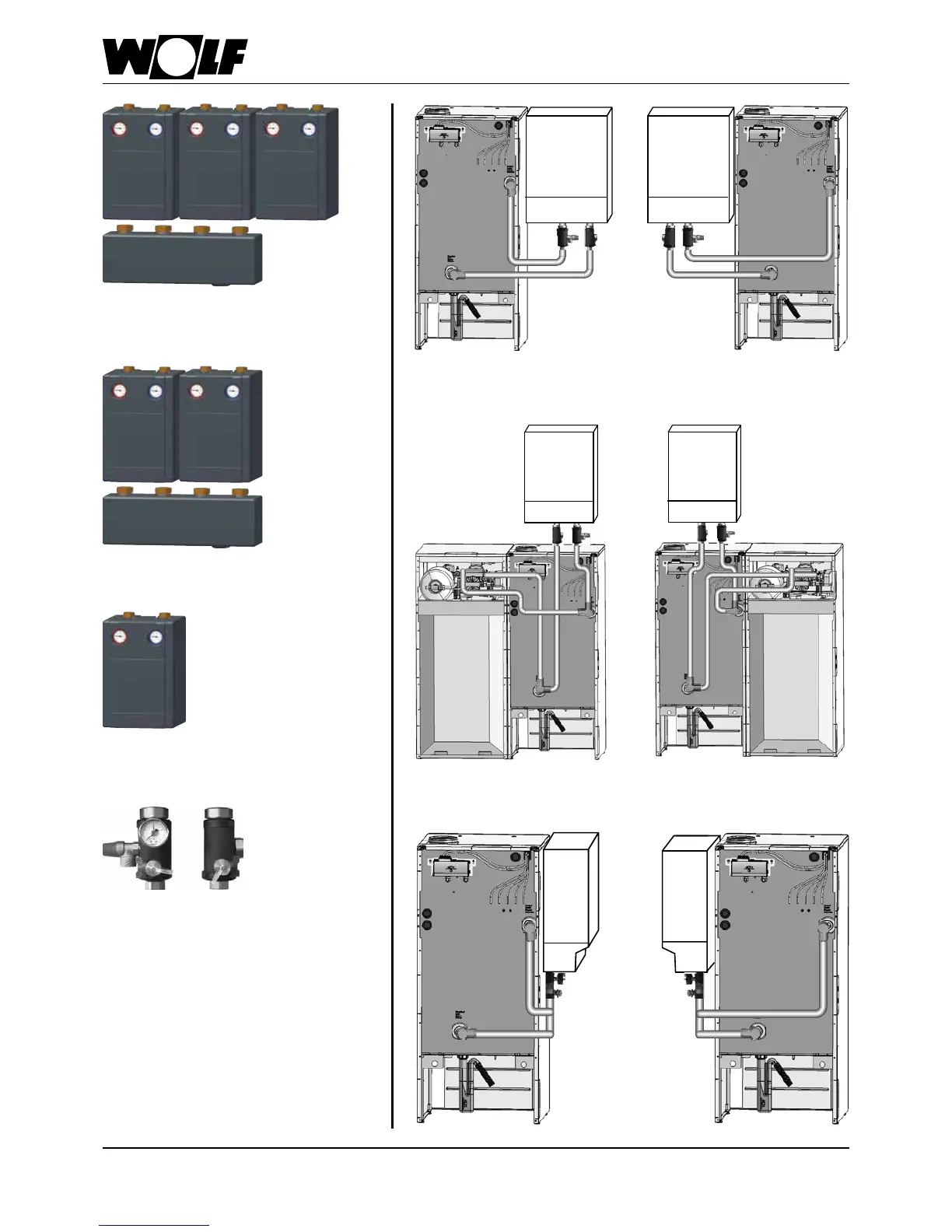

15 Installationexamples
Pipeassemblyfortwoheatingcircuits
withmanifoldforsafetyassembly
installation
Pipeassemblyforoneheatingcircuitfor
safetyassemblyinstallation
Safetyassemblyforxingtothe
corrugatedstainlesssteelpipesof
heatingowandreturn
The safety assembly and the required pipe
assembly can be installed on the left, on
the right or at the back of the boiler on a
wall or attached to the side of the boiler
casing.
Note: The pipe assembly for three heating
circuits should always be wall mounted.
Pipeassemblyforthreeheatingcircuits
withmanifoldforsafetyassembly
installation
