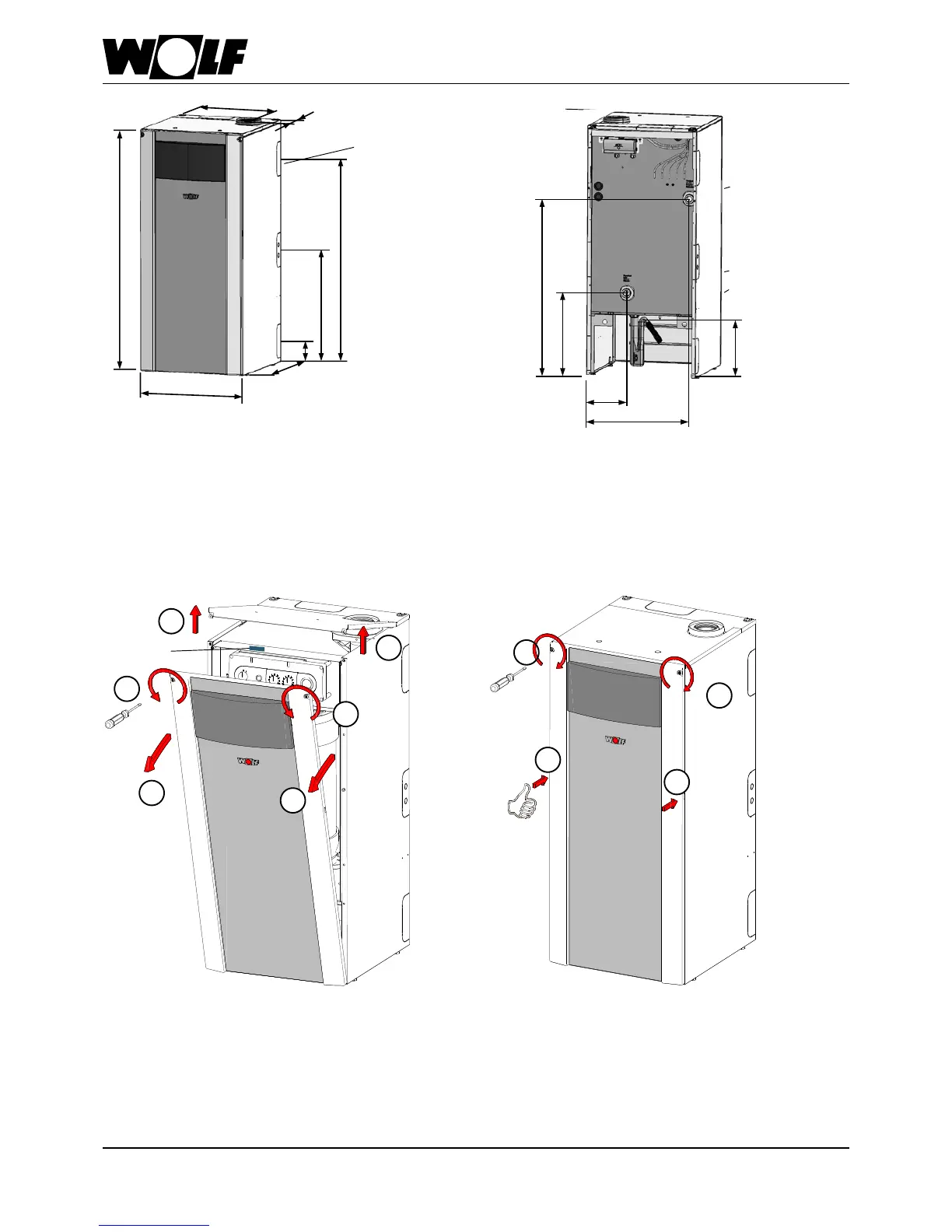

5 Dimensions/Openingthecasing
Openingthecasing Closingthecasing
Type plate
Knock-outs for
individual pipework for
heating connections
COB-29: 1029
1084
566
605
603
122
COB-15/20/29: 1290
COB-40: 1490
462
203
COB-40: 1209
COB-15/20: 919
194
516
260
426
1
1
1
1
2
2
2
3
4
4
Ventilation/
ue gas
connection
Return
Optional xing
point for oil lter
Flow
Entries for oil
hoses (optional)
Drain level
Condensate
