Wolf COB - Electrical Connection

27
3062547_201802
20 Electricalconnection
Generalinformation
Thedevicepowersupplyterminalsare'live'even
whentheON/OFFswitchhasbeenswitchedOFF.
The installation may be carried out only by an
approved electrical contractor. Observe VDE
regulationsaswellasalllocalregulationsofyour
powersupplyutility.
Terminalbox
In the delivered condition, the terminal box is tted to the back
panel of the boiler.
Unclip the terminal box from the holder. The terminal box can
be mounted on the wall to the right or left of the boiler. The
control and safety devices are fully wired and tested.
Powersupply
In the case of a permanent connection, provide the power supply
via a mains isolator (e.g. fuse, heating system emergency stop),
which ensures at least 3 mm contact separation for all poles.
Power cable, exible, 3x 1.0 mm² or rigid, max. 3x 1.5 mm².
The maximum current carrying capacity of the outputs is 2 A,
but a total of 5 A must not be exceeded.
Installationinformation–electricalconnection
Isolate the system from the power supply before opening.
Unclip the terminal box from the holder.
Open the terminal box.
Screw the strain relief into the holes provided.
Strip approx. 70 mm off the power cable insulation.
Push the cable through the strain relief and tighten the strain
relief.
Terminate the appropriate cores at the Rast-5 plug.
Push the inserts back into the terminal box casing.
Insert the Rast-5 plug
Fit the cover.
Fuse
M 5A
Mains
230 V / 50 Hz

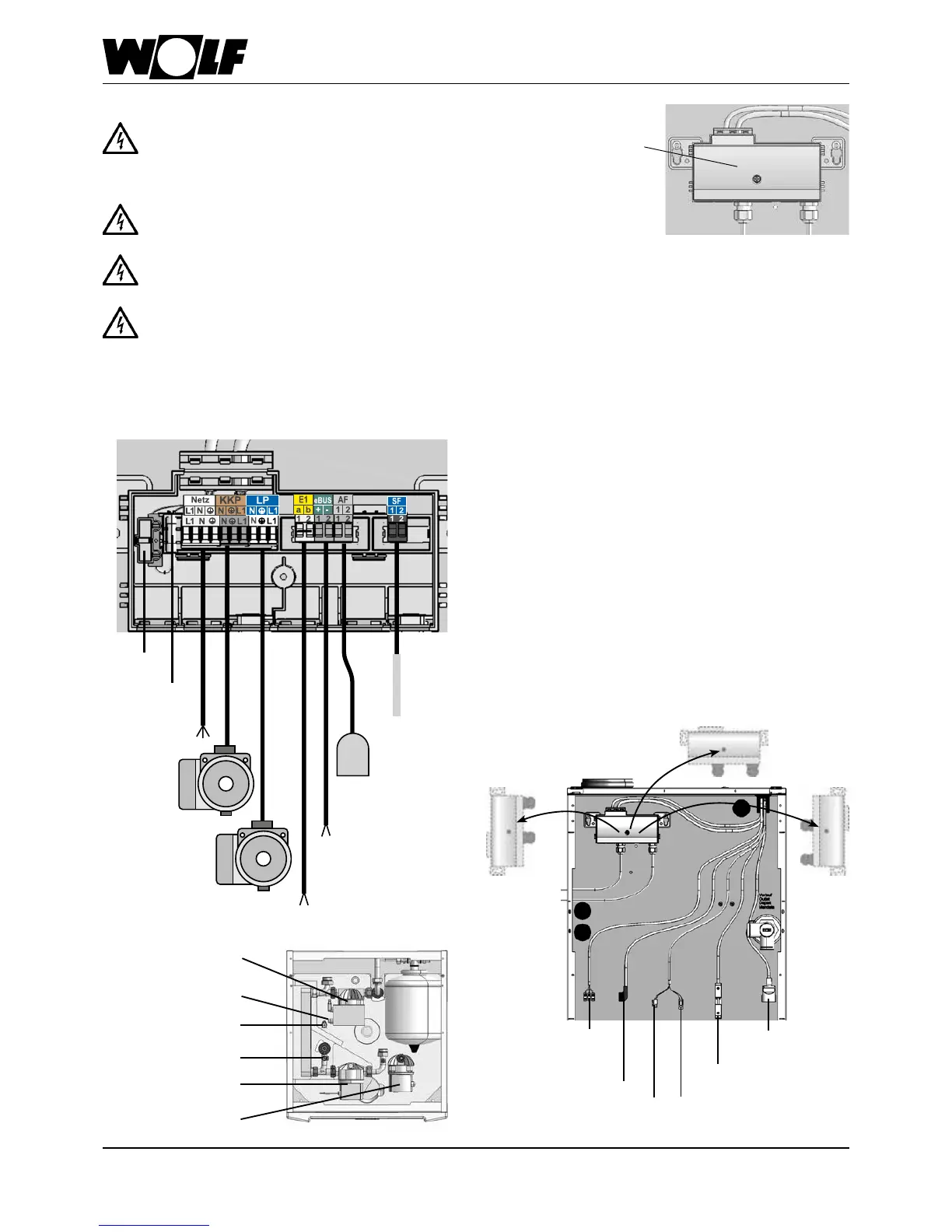

2-wire eBus connection
Replacement
Fuse
Outside sensor
Cylinder
sensor
Programmable input E1
(24 V), potential-free
Remove jumper a/b when
making the connection
Heating
circuit
pump
Cylinder primary
pump
Electric
Junction boxes
Power condensate
pump max. 2 A
TS stratication pump
Stratication
sensor
Control signal
Stratication pump
Alarm switch
Condensate pump
Programmable
Output A1
(230VAC; 200VA)
Output A1 to
DHW circulation
Stratication sensor
Control signal
Stratication pump
Cylinder sensor
Stratication pump
Cylinder charging pump
Isolatetheboilerfromthepowersupplybefore
changing the fuse. The ON/OFF switch on the
appliance does not provide isolation from the
power supply. Danger from 'live' electrical
components.Nevertouchelectricalcomponents
orcontactsaslongastheboilerhasnotbeen
isolatedfromthepowersupply.Dangertolife!
For installation inAustria: Observe the ÖVE
regulationsandrequirementsandthoseofyour
localpowersupplyutility.
