3-26 Installation of the Mounting System (Optional) Rev AB
Wolke m600 touch Operator Manual
The mounting adapter for green, red and gold coloured printheads is as
shown in Figure 3-39. The mounting adapter for a red, green or gold
printhead assembly is available in lengths of 400 or 600 mm.
The mounting adapter for gold coloured printheads is shown in Figure 3-
40. The mounting adapter for a gold printhead assembly is available in a
length of 400 mm.
Figure 3-41 shows an example for single-head mounting system.

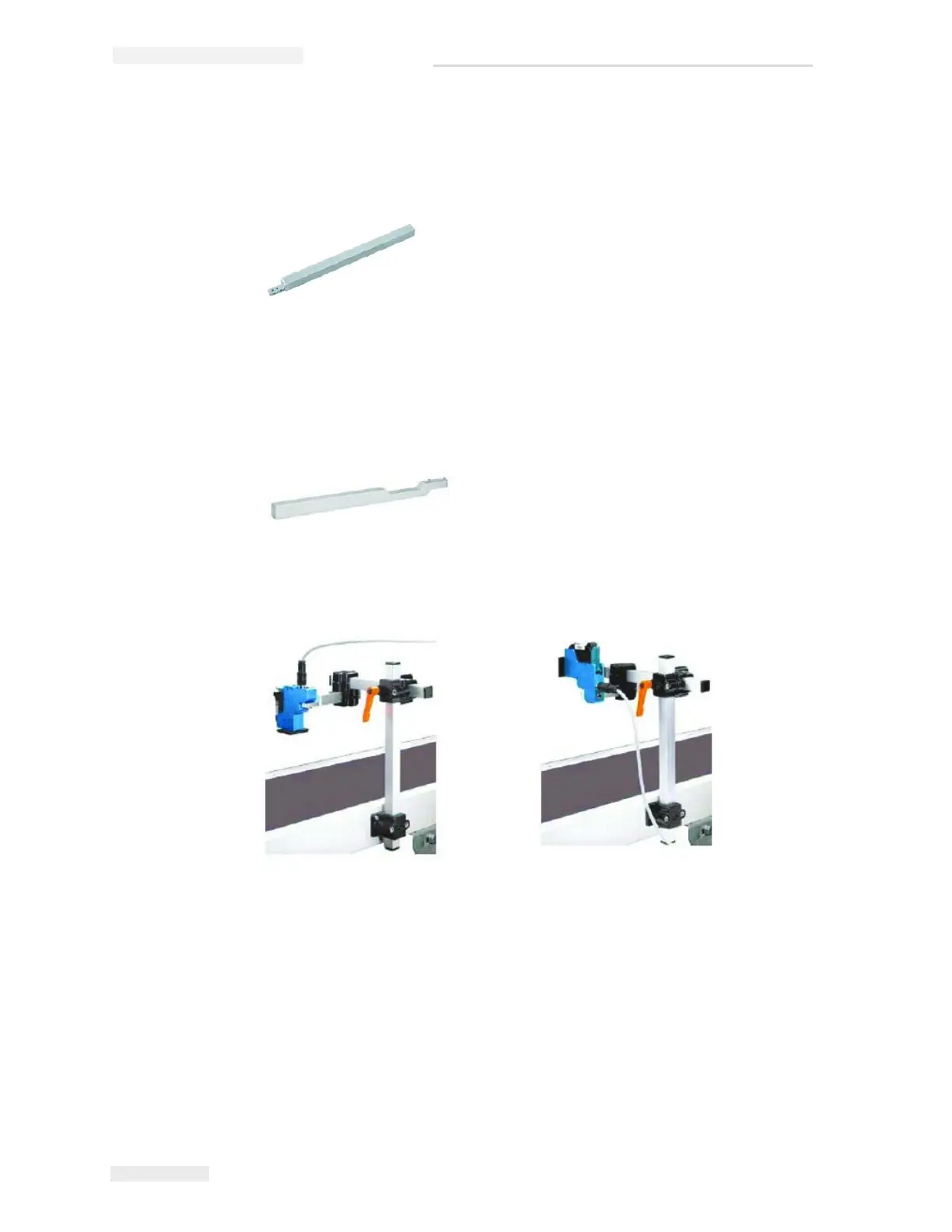

Figure 3-39: Mounting Adapter
Figure 3-40: Mounting Adapter - Gold Printhead
Figure 3-41: Single-head Mounting System
Print from above
Print from the side
