used. This is to make sure a constant optimum print result for such
applications.
It is suitable for side or top mounting. The maximum deflection is 90 mm,
measured from the rest position. Figure 3-46 shows the possible positions
of the parallelogram.
Description of functions
The springs included in delivery have different tensile strengths. The
different attachment positions are for weight compensation for one, two,

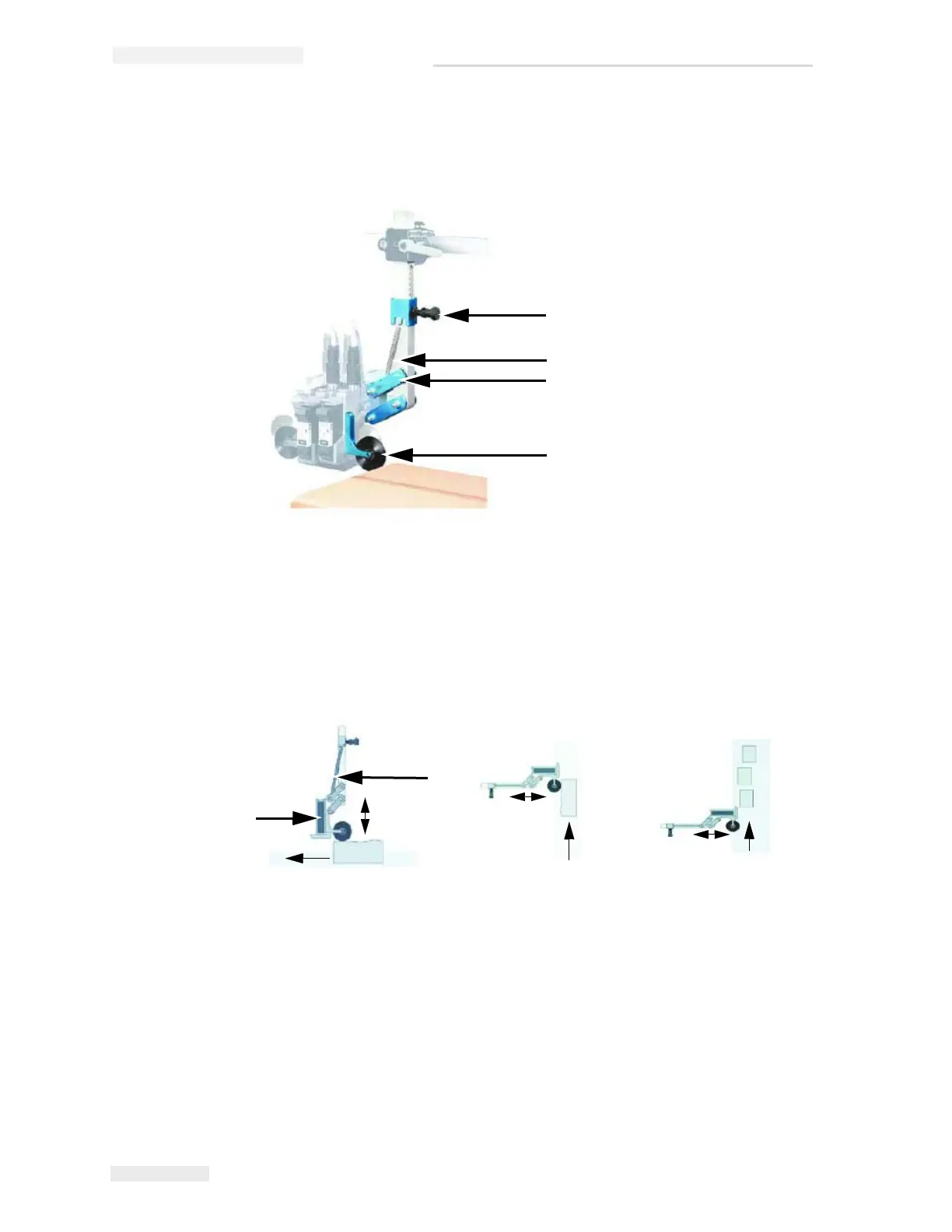

Figure 3-45: Parallelogram
1
2
3
4
1. Adjustment of spring force
2. Spring
3. Attachment positions
4. Locating wheel/deflector
Figure 3-46: Parallelogram Positions
At the top
Lateral, uneven/cambered
products or packages
Lateral, different
product positions
1. Parallelogram
2. Printhead
1
2
