Manual 26815 QuickTrip Electro-Hydraulic Trip Block Assembly
Woodward 33
Fai
lure to isolate each QuickTrip actuator cavity from the environment
and from each other may result in an unintended explosion hazard.
Once all wiring is complete, carefully thread the top electronics cover onto each actuator cavity, being
careful not to cross-thread them. Thread the covers all the way down by hand, and then torque them to
136-190 Nm (100-140 ft-lbf). Woodward tool 1013-6603 can be used to torque the cover.
Take care not to damage the electronics’ cover seal, the cover
surface, the threads, or the QuickTrip housing mating surface while
installing the cover.
Proper wiring
Due to the hazardous location listings associated with this product,
proper wire type and wiring practices are critical to operation.
Once all covers are in place, install the two cover clamps to secure the covers in place. The clamps must
engage the lip of each cover to prevent the covers from unintentionally coming loose (ex. due to
vibration). Torque the two screws to 24-32 Nm (18-24 (in-lbf). See Figure 3-7 Below.

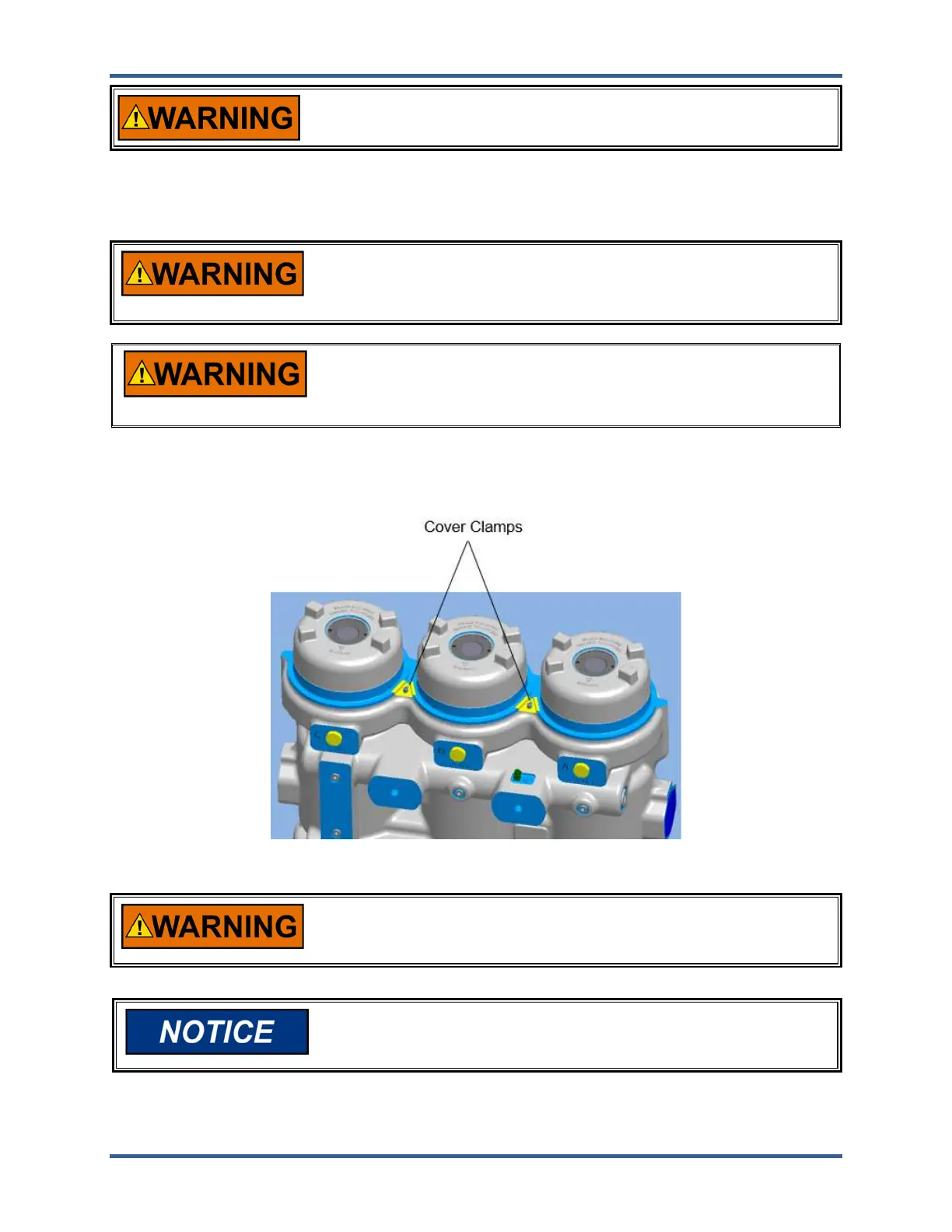

Figure 3-9. Cover Clamps
Failure to install the cover clamps may allow the electronics covers
to unintentionally loosen, and may result in an unintended explosion
hazard.
Do not connect any cable grounds to “instrument ground”, “control
ground”, or any non-earth ground system. Make all required
electrical connections based on the wiring diagrams.
Released
