Woodward QuickTrip User Manual

Manual 26815 QuickTrip Electro-Hydraulic Trip Block Assembly
Woodward 49

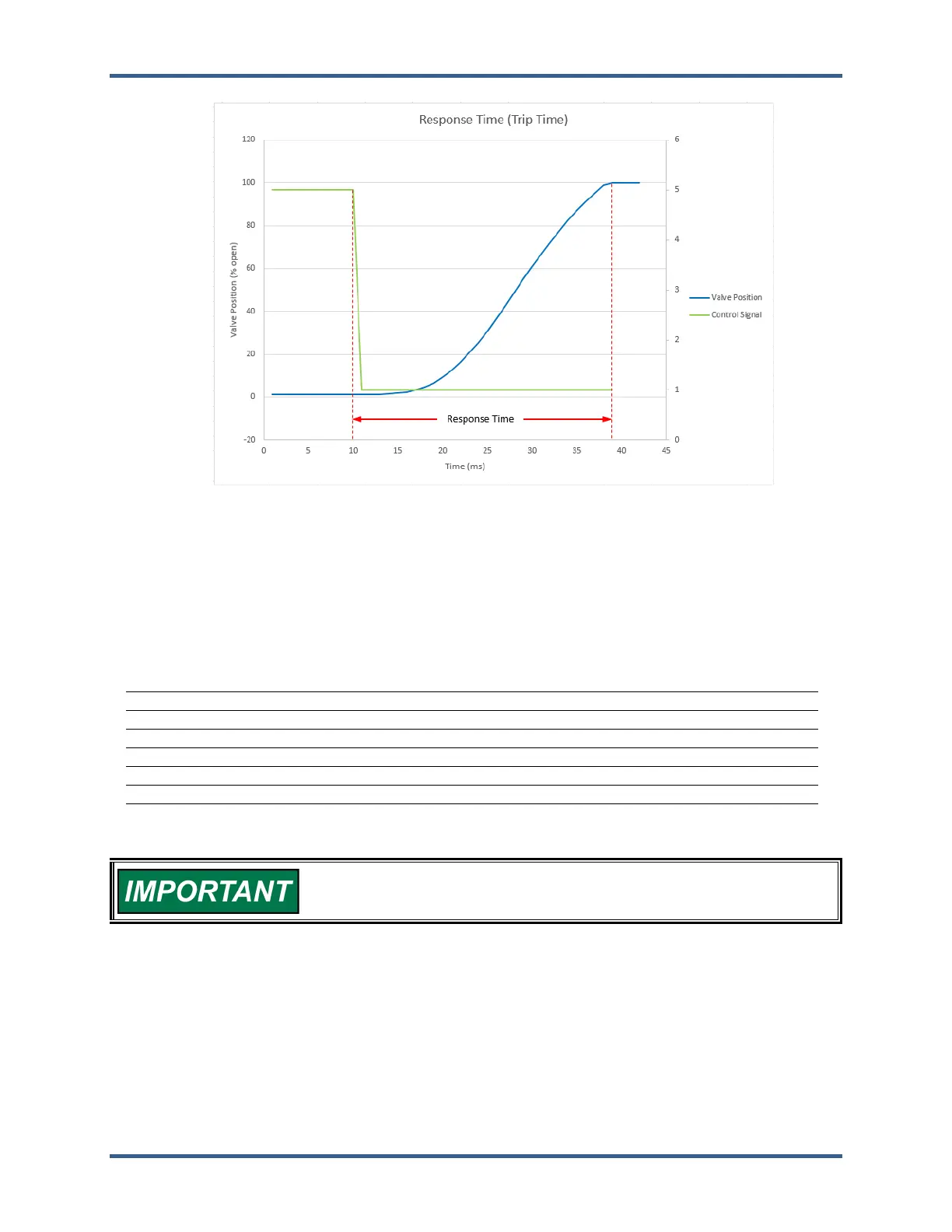

Figure 6-2. Response Time
Limitations
When proper installation, maintenance, proof testing, and environmental limitations are observed, the
product life of the QuickTrip is 20 years.
Table 6-8. Environmental Specifications:
Operating Temperature
–40 to +85 °C
Storage Temperature
(Non
-
operational)
–40 to +85 °C
Relative humidity
up to 95% non-condensing
Vibration
2 h/axis, 1.04 Grms, 10–500 Hz, three axis
Shock
±3 pulses, 10 G, 11 ms sawtooth shock pulse, three axis
IP rating
66
Altitude
up to 3000 meters above sea level
Electromagnetic Compatibility
Emissions: EN61000-6-4
Immunity: EN61000-6-2
These limitations are critical to the SIL certification. See Ch. 2 for a
complete list of specifications.
Management of Functional Safety
The QuickTrip is intended for use according the requirements of a safety lifecycle management process
such as IEC61508 or IEC61511. The safety performance numbers in this chapter can be used for the
evaluation of the overall safety lifecycle.
Released
