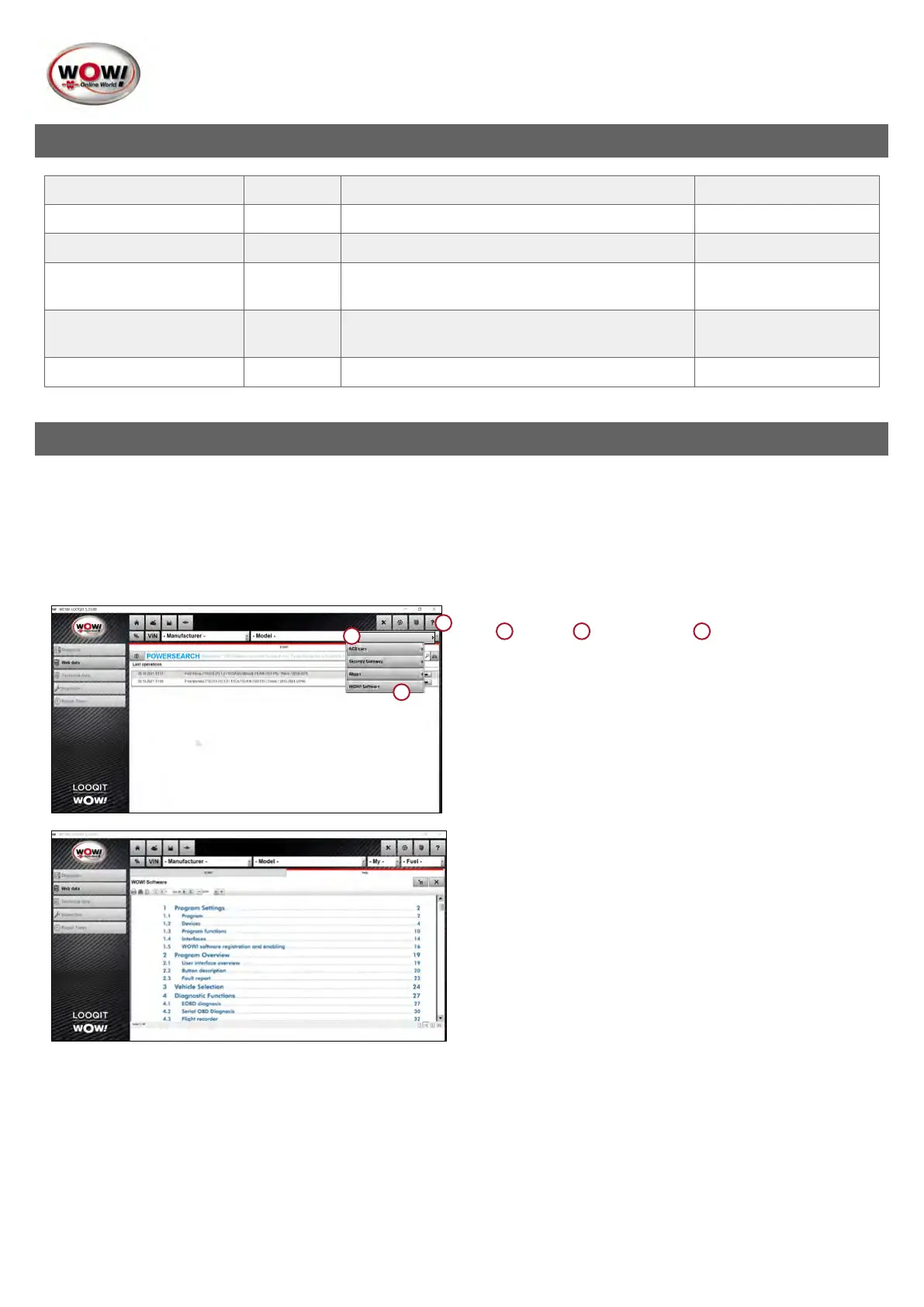

5. LEDdisplaysignaldescription
Function Colour Comment Sound
Power supply White Continuous light for voltage supply -
PC connection Blue
USB or Bluetooth
®
connection
-
Diagnosis Green With active diagnostic session, communication
with the vehicle
-
Battery voltage low Red Voltage range outside 11 V - 16 V Warning sound! Battery
low
Flight recorder Yellow Flight recorder session started -
6. Flightrecorder
Description:
Thedevicehasanintegratedightrecorderformobiledatacollection.Whenrecordingduringatestrun,noadditionaldis-
play unit (computer) is required. The recorded data sets can be copied to the WOW! diagnosis system later for analysis.
Tousetheightrecorderfunction,thevehicleandsystemparametersmustbecopiedtothedevice.
This procedure is described in the instructions for the WOW! diagnostic software.
Manuals
2
1
3
To do this, click in the WOW! diagnostic software on:
Help
1
Manuals
2
WOW! software
3
The procedure is described in section „4.3 Flight recorder“.
