L3-M3
M9540Low Profile, WSM
TRANSMISSION
Turning Angle Inspection Switch
The turning angle inspection switch is on the front
wheel case support of left side, and this switch is
controlled “ON” position or “OFF” position of Bi-speed
turn.
When the 4WD / Bi-speed turn switch is set at the Bi-
speed turn position, if the turning angle is less than 0.56
rad (32 °), switch is “OFF” position, and current flows
from the battery to the 4WD solenoid. If the turning angle
exceeds approximately 0.56 rad (32 °), switch is “ON”
position, and current flows to 4WD / Bi-speed turn relay’s
coil, and the relay contact is set to Bi-speed turn position
by electromagnetic force. Therefore, current from the
battery flows to Bi-speed turn solenoid.
W1013308

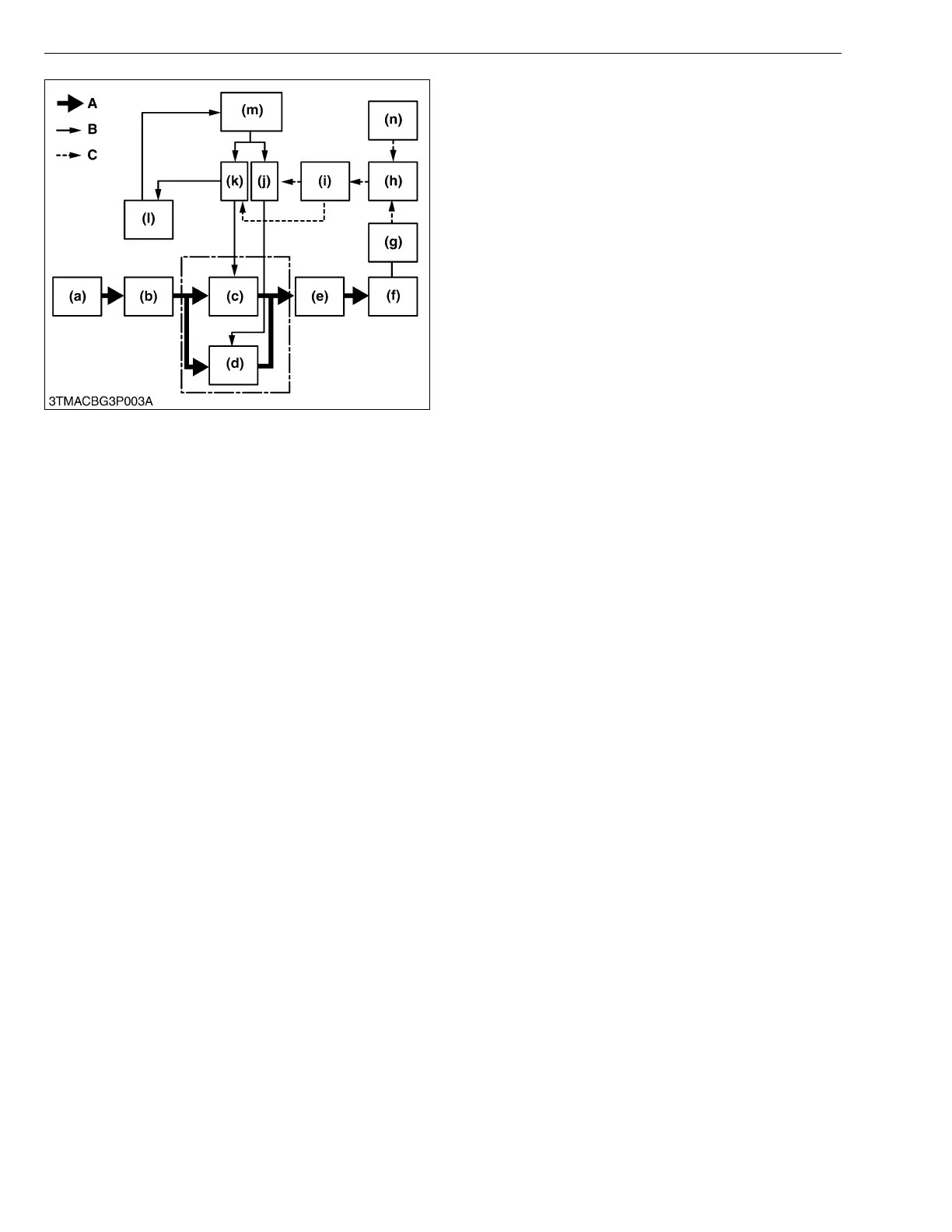

A : Power
B : Oil
C : Electrical Signal
(a) Engine
(b) Transmission Case
(c) 4WD Clutch
(d) Bi-speed Turn Clutch
(e) Front Axle
(f) Front Wheel
(g) Turning Angle Inspection
Switch
(h) 4WD / Bi-speed Turn Relay
(i) 4WD / Bi-speed Turn Switch
(j) 4WD Solenoid Valve
(k) Bi-speed Turn Solenoid
Valve
(l) Oil Reservoir (Transmission
Case)
(m) Hydraulic Pump and Relief
Valve
(n) Brake Pedal Switch
