L6-S2
M9540Low Profile, WSM
FRONT AXLE
2. DISASSEMBLING AND ASSEMBLING
[1] DISASSEMBLING AND ASSEMBLING
Turning Angle Inspection Switch
1. Remove the cover (2).
2. Remove the turning angle inspection switch (3).
(When reassembling)
• Adjust the turning angle inspection switch operating angle with
adjusting shim.
•Shim
0.5 mm (0.02 in.) : 3A481-40470
1.0 mm (0.039 in.) : 3A481-40460
NOTEQ
• Remove the turning angle inspection switch to execute the
“Separating Front Axle” and “Disassembling Front Axle”.
W1010690
Turning angle inspection
switch operating angle
Factory spec.
0.53 to 0.59 rad
30 to 34 degree

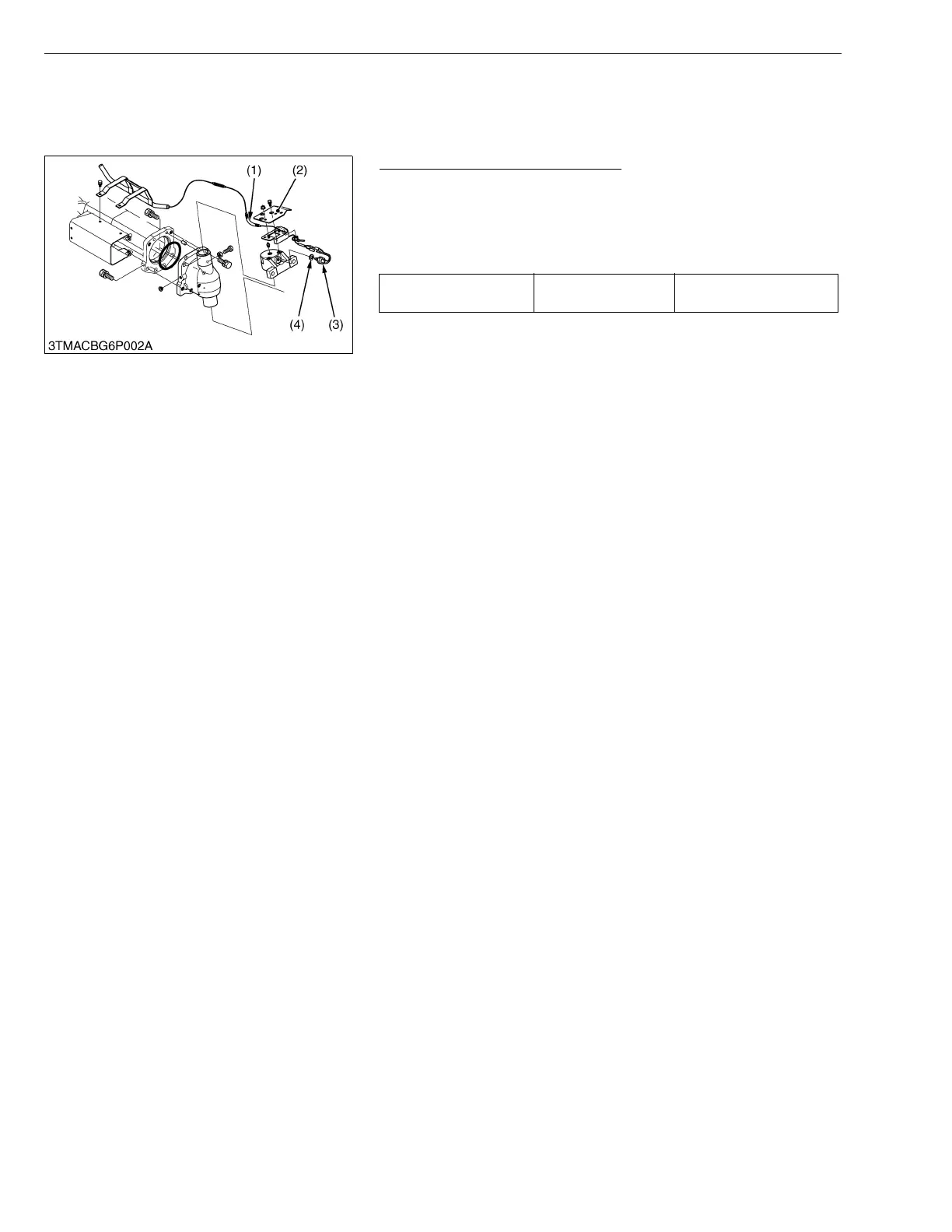

(1) Wire Harness
(2) Cover
(3) Turning Angle Inspection Switch
(4) Adjusting Shim
KiSC issued 09, 2008 A
