Control Panel

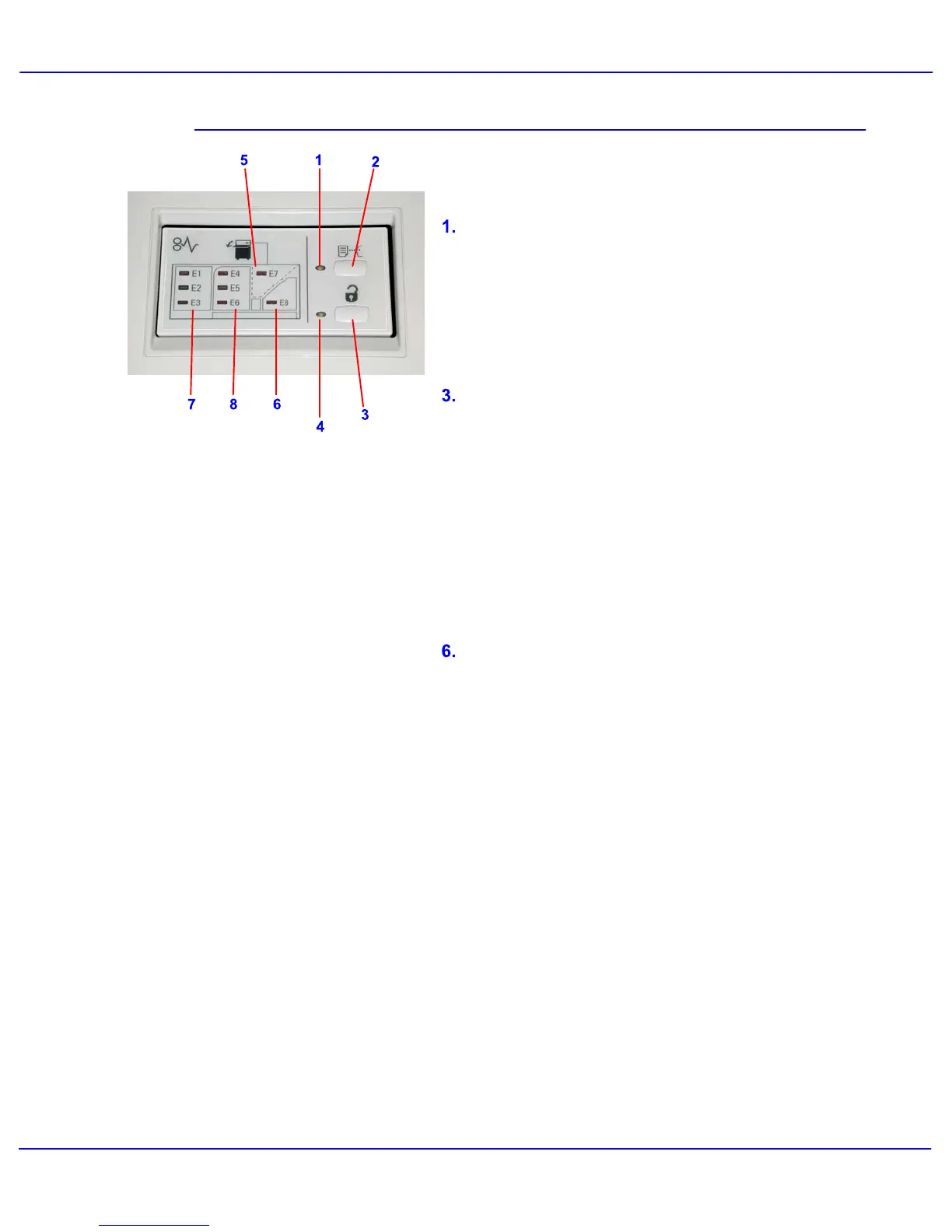

The HCS Control Panel consists of:
2.
Sample button:
Press this button to have the HCS deliver the next
collated set to the top tray.
Unload button:
Press once to lower the Stacker Tray and unlock the
front door.
Unload indicator:
This indicator lights when the Stacker Tray has
reached the down position and the front door can be
4
Sample indicator:
This indicator blinks until a proof set is delivered to
the Top Tray.
5.
Top Tray jam area:
Blinks when there is a jam in the top tray area (E7).
Exit jam area:
Blinks where there is a jam in the exit area (E8).
Stacker Entrance jam area:
Blinks when there is a jam in the Stacker Entrance
area (E1, E2, or E3).
7.
4.
Stacker Transport jam area:
Blinks when there is a jam in the Stacker Transport
area (E4, E5, or E6).
