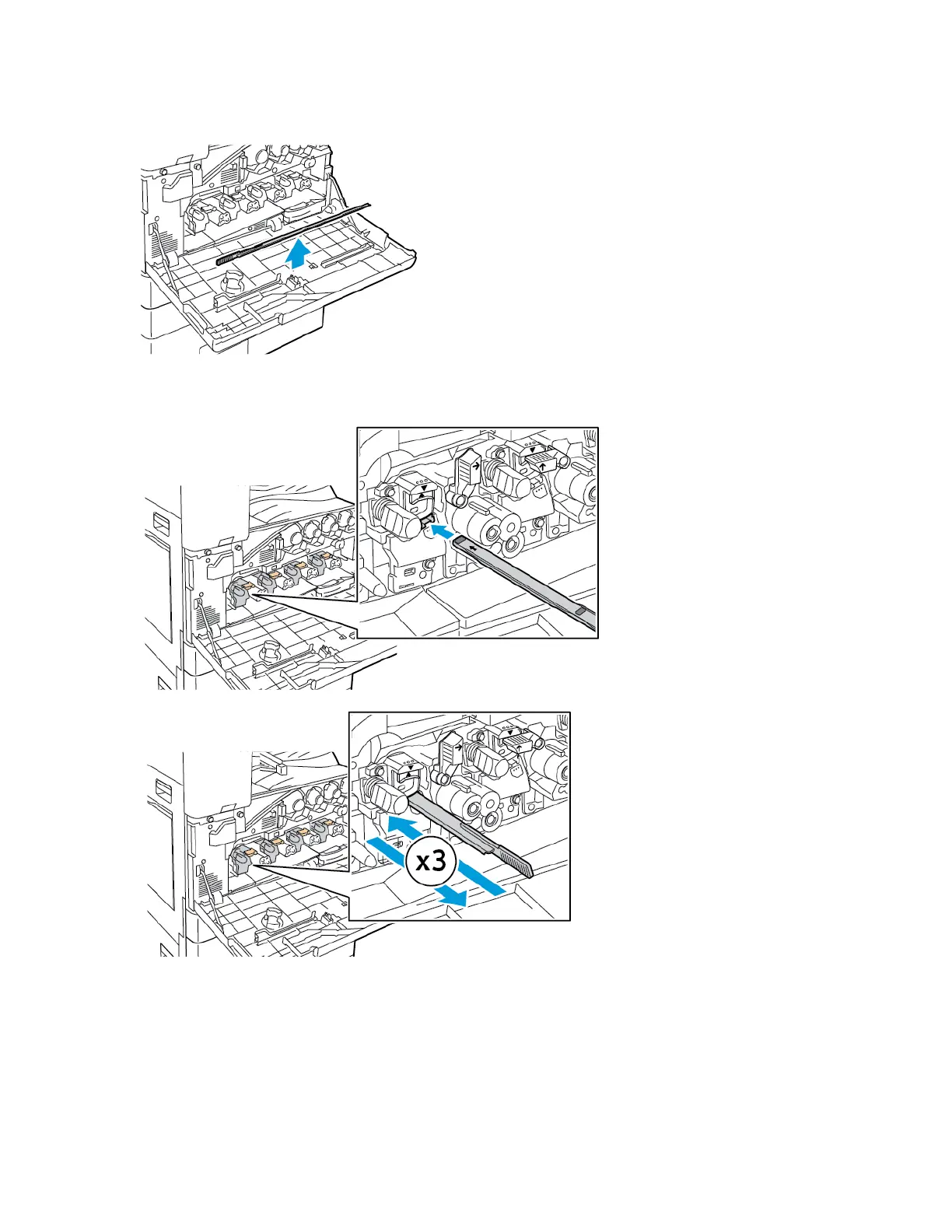

3. Remove the printhead LED lens-cleaning rod from inside the front door.
4. For the first printhead, slowly push the cleaning rod into the printhead LED lens cleaning slot until it stops, then
pull out the rod. Repeat this action two more times.
5. Repeat step 4 for each printhead LED lens.
6. Return the cleaning rod to its original location.
7. To insert the waste toner transport unit:
242
Xerox
®
AltaLink
®
C8130/C8135/C8145/C8155/C8170 Series Color Multifunction Printer User Guide
Maintenance
