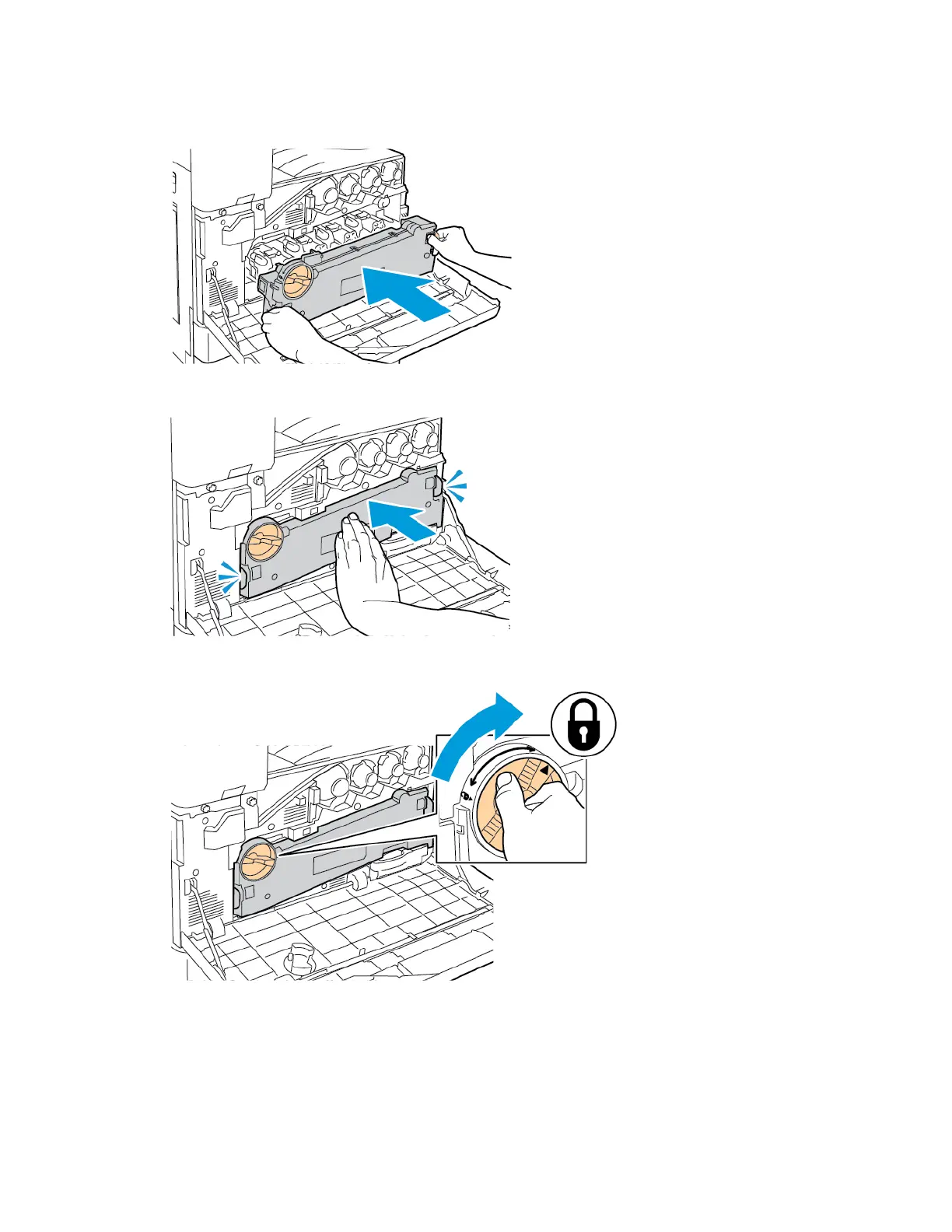

a. Position the waste toner transport unit as shown.
b. Press the waste toner transport unit toward the printer, until both ends click into place.
c. To lock the waste toner transport unit, rotate the locking lever 45 degrees clockwise.
Xerox
®
AltaLink
®
C8130/C8135/C8145/C8155/C8170 Series Color Multifunction Printer User Guide 243
Maintenance
