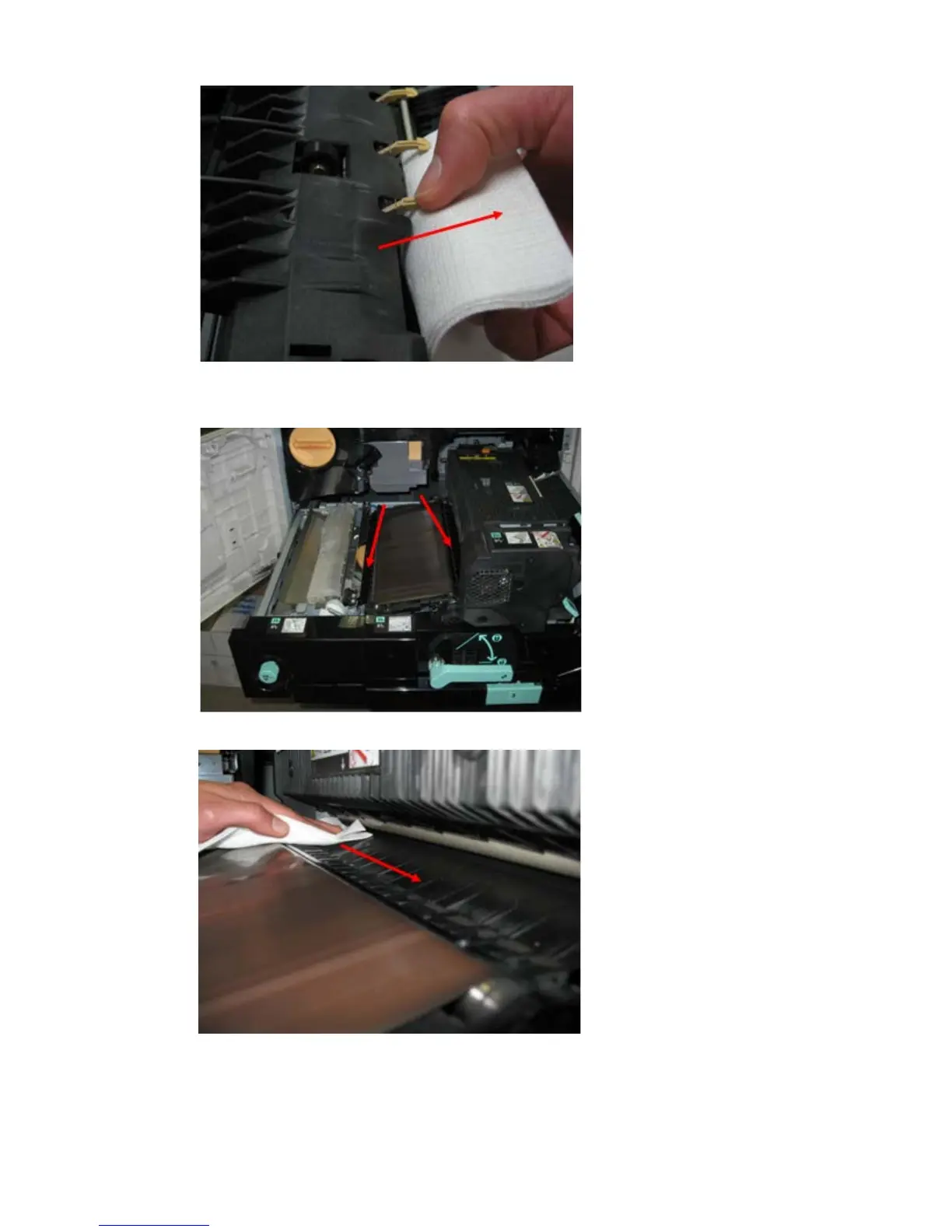

8. Return the 2c handle to its original position.

9. Clean the input baffles to the Transfer and Fuser.

10. Wipe the Fuser input baffle.

11. Wipe the Transfer input baffle.

14-7Xerox

®

D95/D110/D125/D136 Copier/Printer

User Guide

Maintenance

Table of Contents

Default Chapter3
- Table of Contents3
1 Product Overview17
- Machine Components17
  - Document Feeder19
- User Interface (UI)19
- Power Source21
  - Power on21
  - Power off22
- Energy Saver22
  - Exiting the Energy Saver Mode23
- Print Server Overview23
- Feeding and Finishing Devices23
2 Where to Find Help31
- Customer Documentation CD/DVD31
- Print Server Customer Documentation31
- Help on the World Wide Web31
3 Paper and Other Media33
- Loading Paper in Trays 1 and 234
- Loading Paper in Trays 3 and 435
- Loading Tab Stock in Trays 3 and 436
- Loading Pre-Drilled Stock in Trays 1, 2, 3, and 436
- Loading Transparencies in Trays 1-437
- Loading Media in Optional Feeding Devices38
- Loading Post-Process Media in Optional Finishing Devices38
  - Loading Tab Stock with the GBC Advancedpunch38
4 Copy39
- Basic Copy Using the Document Feeder39
- Basic Copy Using the Document Glass40
- Selecting Copy Options for a DFA Finishing Device41
- Copy Tab42
- Image Quality44
- Layout Adjustment45
- Output Format49
- Job Assembly Tab59
5 Scan65
- Simple Scanning65
- Scan Settings68
- E-Mail69
- Network Scanning73
- Scan to PC75
- Store to Folder77
- Store to USB78
- Send to Folder82
- Web Services for Devices (WSD)84
- Advanced Settings Tab85
- Layout Adjustment Tab88
- Filing Options90
- Email Options Tab92
6 Send from Folder95
- Folder Operating Procedure95
- Selecting a Folder95
- Checking Files in Copy & Print Job96
- Deleting Files in Copy & Print Jobs96
- Copying/Moving Files in Copy & Print Jobs96
  - Copy97
  - Move97
- Editing Files97
- Merging/Batch Printing Files in Copy & Print Jobs98
- Printing Files in Copy & Print Jobs102
- Selecting a Folder under Scan & Other Jobs107
- Checking/Operating Files in Scan & Other Jobs107
- Checking File Details in Scan & Other Jobs108
- Printing Files in Scan & Other Jobs108
- Configuring/Starting Job Flow108
  - Link Job Flow Sheet to Folder109
  - Job Flow Restrictions109
- Making Backups of Files in Folders109
  - Setting a Password109
7 Job Flow111
- Job Flow Procedures112
8 Stored Programming117
- Storing a Program117
- Deleting Stored Programs119
- Naming/Renaming a Stored Program119
- Stored Program Icons119
- Calling a Stored Program120
9 Media Print - Text121
- Overview121
  - Supported File Formats121
  - Notes and Restrictions122
- Selecting Media Files122
- Inserting USB Memory Device123
- Setting the Printing Options123
  - Media Print - Text Printing Options123
  - Index Print124
10 Web Applications125
- Web Application Overview125
- Accessing Using Buttons Registered on the Services Home Window125
11 Computer Operations127
- Network Printing127
  - Printing with the PS Print Drivers127
  - Printing with the PCL Print Drivers127
- Copying a Job with Tabs128
- Network Tab Printing129
  - Network Printing on Tabs Using the PS Print Drivers129
  - Network Printing on Tabs Using the PCL Print Drivers129
- E-Mail Print130
  - Sending E-Mails130
- Importing Scanned Data131
  - Importing from a TWAIN-Compatible Application131
12 Job Status133
- Job Status Overview133
- Active Jobs133
- Completed Jobs134
- Secure Print Jobs & more Tab134
13 Machine Status137
- Machine Information Tab137
- Faults Tab139
- Supplies Tab139
- Billing Information Tab140
  - Accessing Billing Information140
  - Billing Meters/Usage Counters140
    - Usage Counters140
    - User Account Billing Information141
- Tools Tab142
  - Changing the Paper Tray Attributes142
14 Maintenance145
- Cleaning the Machine145
- Replacing Consumable Supplies152
15 Problem Solving159
- Paper Jams159
- Fault Codes174
- Fault Codes 073-210...116-720184
- Machine Troubleshooting186
16 Specifications209
- D95 Copy Specifications209
- D110/D125 Copy Specifications211
- D136 Copy Specifications213
- Print Specifications215
- Scan Specifications216
- Duplex Automatic Document Feeder (DADF) Specifications217
17 High Capacity Feeder (Hcf/Trays 6 and 7), 8.5 X 11219
- 11 In./A4219
18 Oversized High Capacity Feeder (OHCF), 1 or 2 Trays (Trays 6/7)231
- Postcard Bracket232
  - Using the Postcard Bracket232
- Loading Media in the 1 or 2-Tray OHCF234
- Skew Adjustment Levers238
- OHCF Problem Solving239
  - Clearing OHCF Jams239
  - OHCF Fault Codes244
- OHCF Specifications252
19 Interface Module/Interface Cooling Module253
- Module Overview255
  - Control Panel255
  - Paper Path256
- Paper Curl Settings on the Module256
  - Preset Decurler Settings256
  - Manual Decurler Buttons256
- Problem Solving257
  - Clearing Jams257
  - Fault Codes261
20 High Capacity Stacker (HCS)267
- Overview267
- Unloading the Stacker Tray270
- Problem Solving271
- Specifications291
21 Perfect Binder (D110/D125/D136 with Integrated Controller)293
- Binder Components295
- Book Binding Path301
- Power On/Off304
  - Power Saver Mode304
- Loading Media in the Cover Inserter Tray305
- Removing Books from the Binder306
- Using the Perfect Binder306
- Maintenance312
- Binder Problem Solving314
- Paper Size and Trim Recommendations for Perfect Bound Books324
- Binder Specifications324
22 Standard/Booklet Maker Finisher329
- Manual Decurling Feature on the Finisher331
- Folding Feature332
  - Fold Types332
- Loading Paper/Tabs in Tray 8/T1 (Post-Process Inserter)334
- Maintenance335
- Finisher Problem Solving341
- Specifications375
  - Standard/Booklet Maker Finisher375
  - Optional C/Z Folder378
23 Squarefold Trimmer Module379
- Overview379
- Identifying the Components380
- Square Fold Feature382
  - Square Fold Options383
  - Accessing the Square Fold Options384
    - Accessing the Square Fold Options for Network Print Jobs384
    - Accessing the Square Fold Options for Copy Jobs385
- Trimmer Feature385
- Hints and Tips389
  - Printing Full-Page Images on Booklets389
  - Follow These Tips390
- Problem Solving390
  - Jam Clearance390
  - Fault Codes394
- Technical Data404
  - Specifications404
24 Standard Finisher Plus405
- Overview405
- Finisher Module406
  - Finisher Module Main Components406
    - Folding Feature407
    - Fold Types408
  - Loading Paper/Tabs in Tray 8/T1 (Post-Process Inserter)409
- Finishing Transport410
  - Finishing Transport Main Components410
  - Finishing Transport Status Indicators411
- Standard Finisher Plus Maintenance412
- Problem Solving417
- Specifications448
  - Finisher Module Specifications448
    - Optional C/Z Folder451
  - Finishing Transport Specifications451
