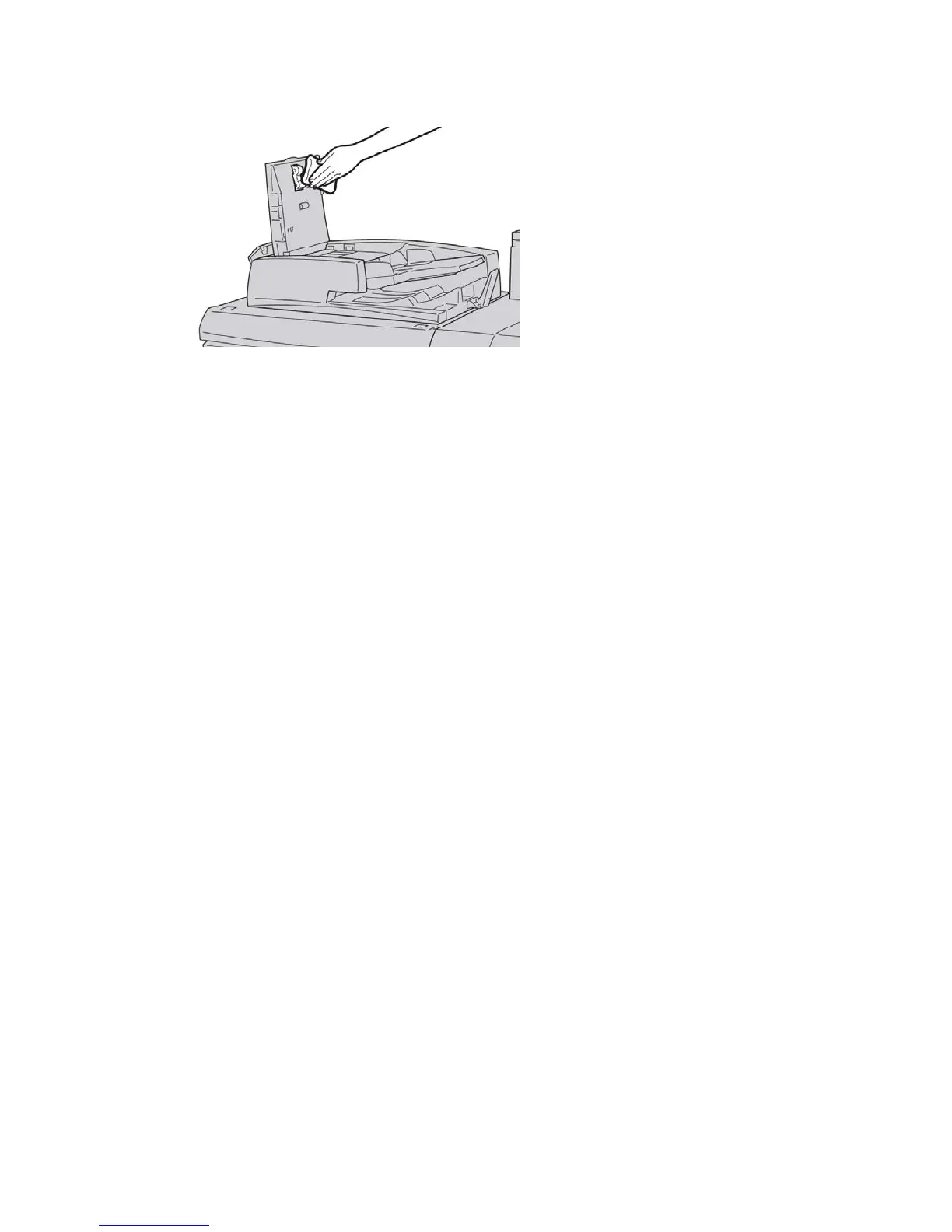

If dirt is difficult to remove, try gently wiping with a soft cloth moistened with a small
amount of neutral detergent.
3. Close the top cover of the document feeder until you hear it click into place.
4. Close the left cover of the document feeder until you hear it click into place.
Cleaning the Fuser Stripper Fingers
Note
It is recommended to read through all of the installation instructions before performing
this procedure.
Note
It is recommended to perform this operation prior to powering up the machine for the
day. However, if it is necessary to perform it during the day, to avoid injury, wait
approximately 50 minutes from the time the machine is powered off to allow the machine
to cool down.
Fuser oil can cause irritation upon contact with the eye. Make sure to wash your hands
thoroughly with soap and water after completing this procedure. Be careful not to touch
other areas of the machine after servicing the Fuser area.
1. Make sure that the machine has stopped copying / printing, and then power the
machine off.
2. Allow the machine to cool for approximately 50 minutes.
3. Open the front door.
4. Move handle 2 to the right and down to the unlocked position.
5. Pull the drawer out until it stops.
6. Lift the 2c handle.
7. Carefully clean the six yellow stripper fingers with a clean, dry, lint free cloth by using
a pinching grip between your finger and thumb to wipe the underside of the stripper
fingers.
User Guide14-6
Maintenance
