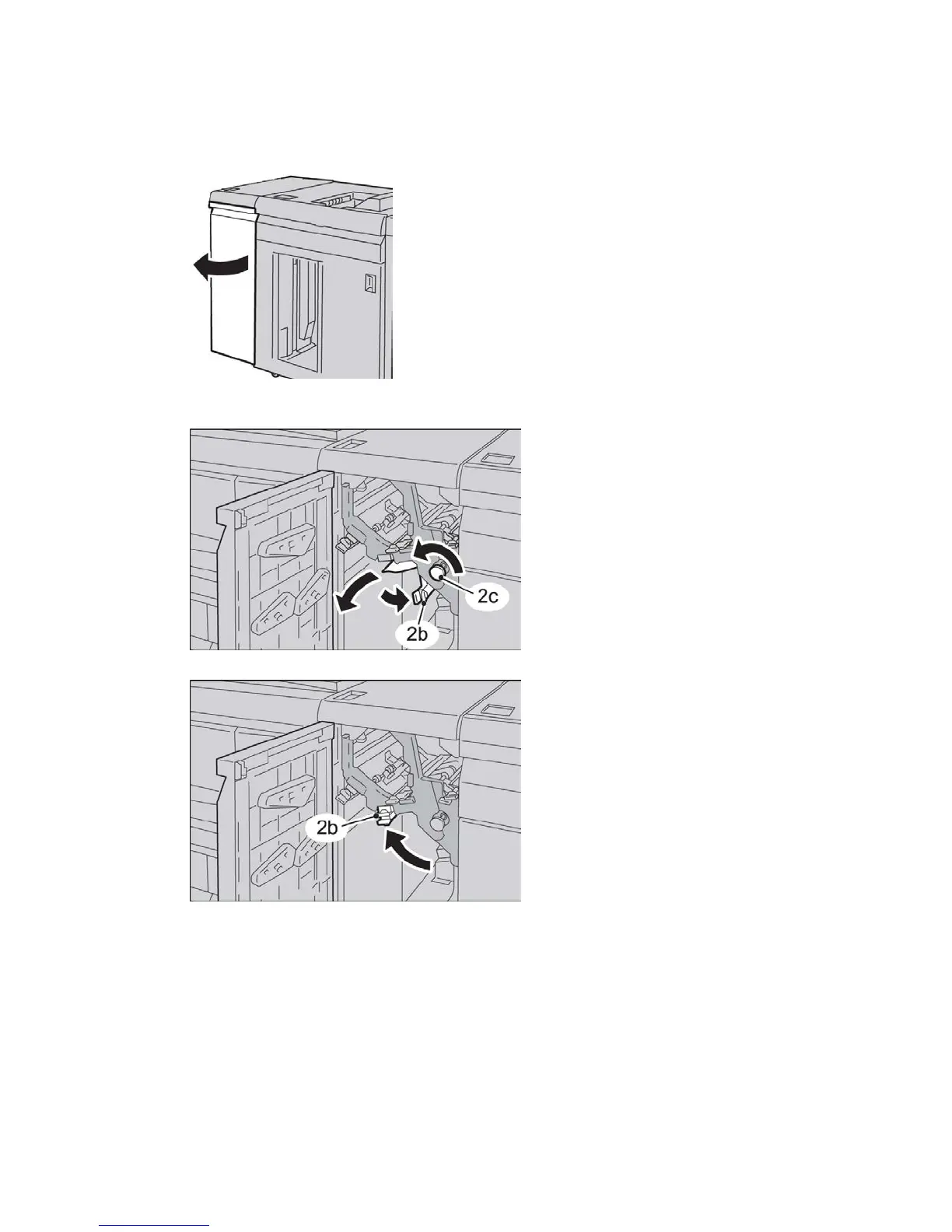

Paper jams at lever 2b

1. Open the front cover of the module.

2. Move the lever downward, turn the knob 2c counterclockwise, and remove the jammed

paper.

3. Return the lever 2b to the original position.

User Guide19-8
