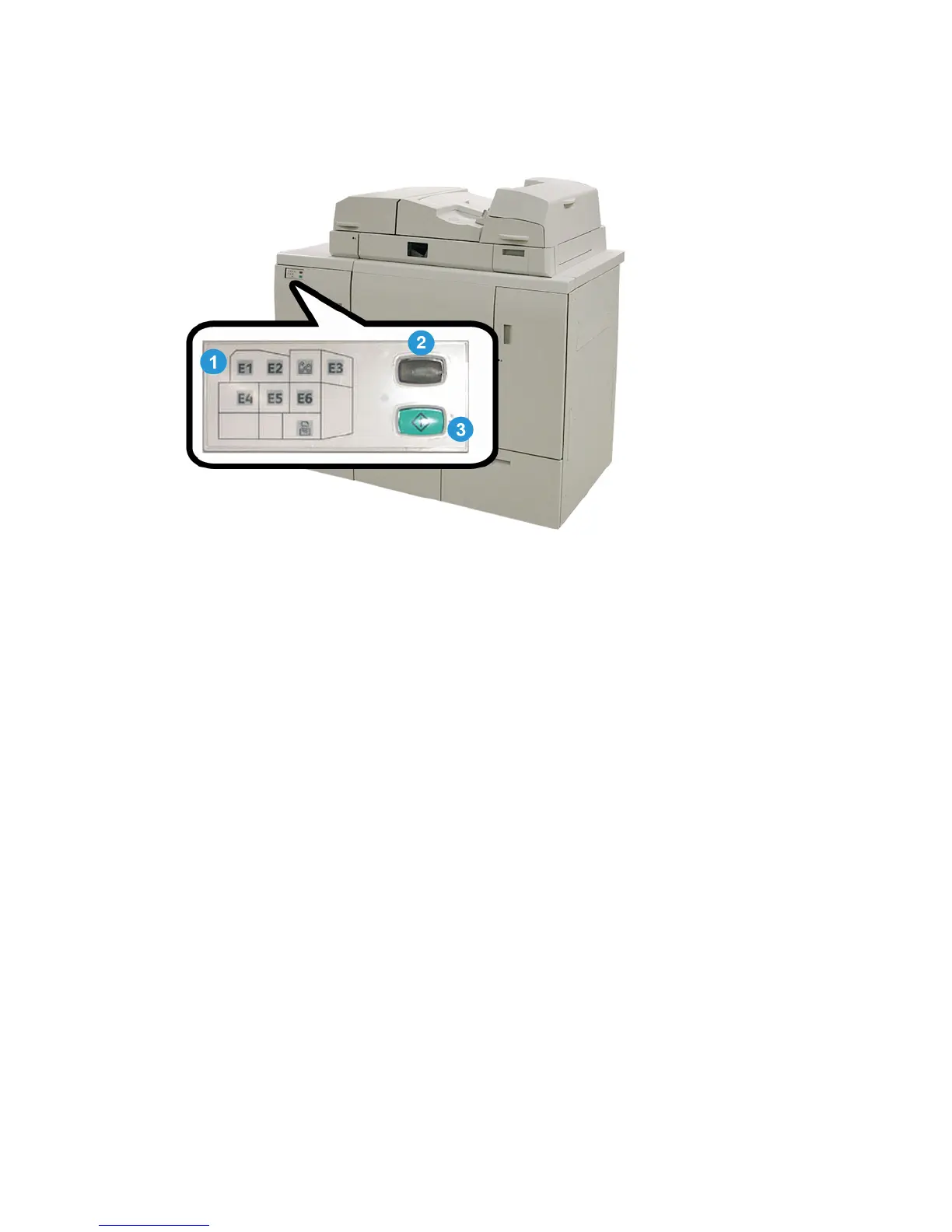

Binder control panel
1 Fault indicators/location
These indicators light when a fault or a jam occurs in a particular area of the binder.
2 Adhesive temperature indicator
This indicator displays the status of the adhesive temperature:
Indicator flashing on/of
The binder is warming up; adhesive is warming up.
Indicator is off (no light)
The binder is in power saver mode.
Indicator is on (steady light)
The binder is ready for operation.
3 Start/Adhesive temperature button
Press this button to warm up the adhesive or to start the manual mode process for a
job.
21-7Xerox
®
D95/D110/D125/D136 Copier/Printer
User Guide
Perfect Binder (D110/D125/D136 with integrated controller)
