Paper jams inside lower left cover

Tip

Always ensure that all paper jams, including any small ripped pieces of paper, are cleared

before proceeding with your copy/print jobs.

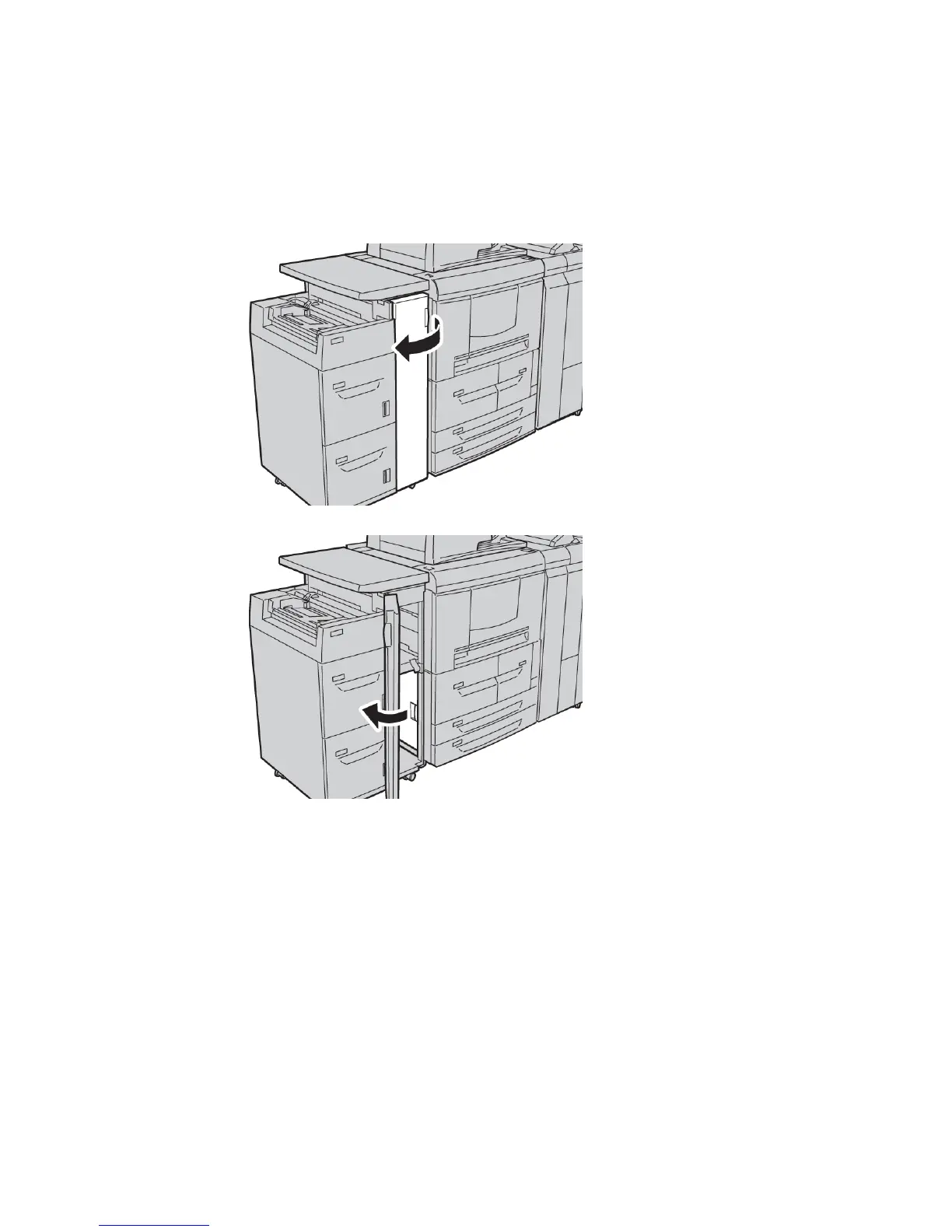

1. Open the front cover of the HCF.

2. Open the lower left cover while gripping the release lever.

17-5Xerox

®
