Paper jams inside the OHCF trays

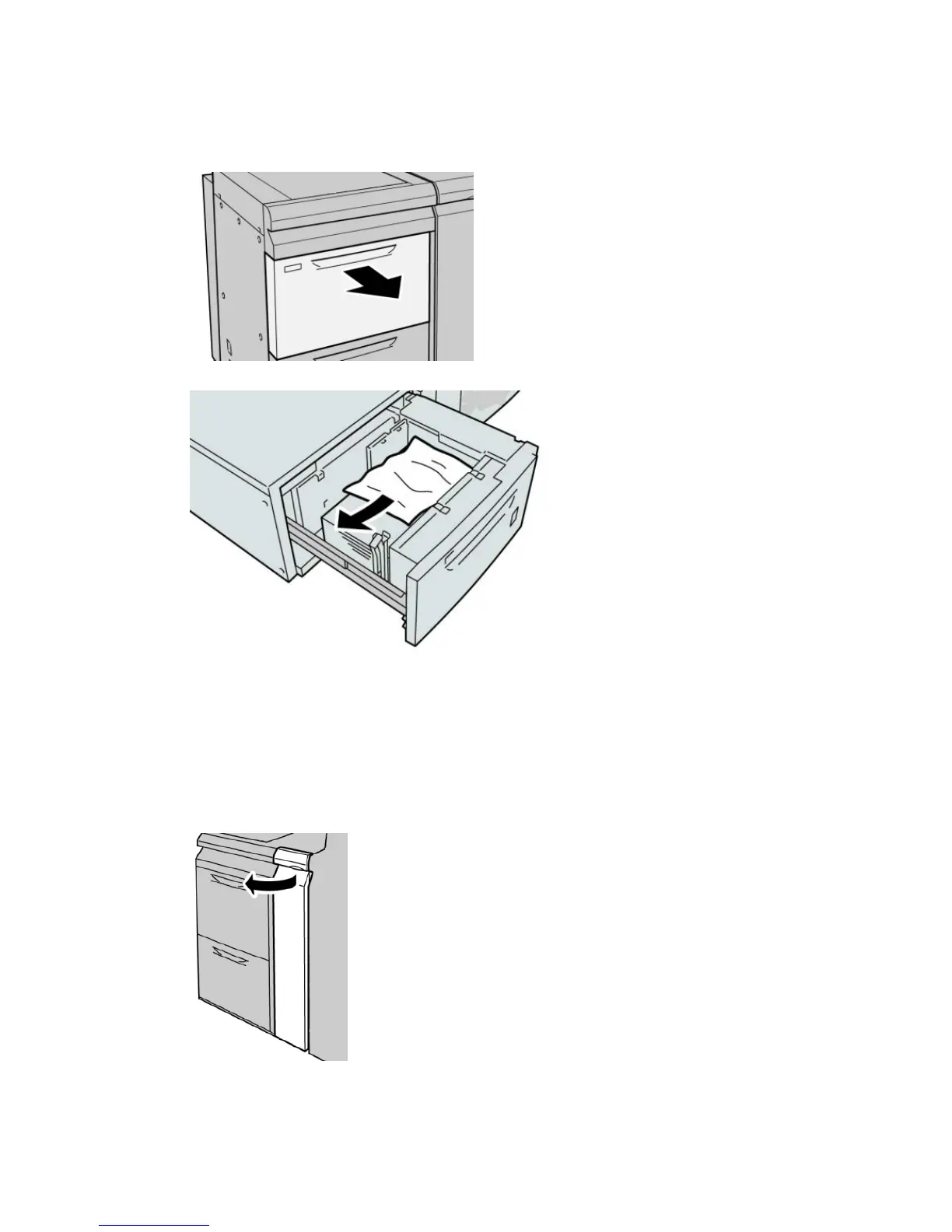

1. Pull out the tray where the paper jam occurred.

2. Remove the jammed paper.

Note

If paper is torn, check inside the machine and remove it.

3. Gently push in the tray until it comes to a stop.

OHCF paper jams at lever 1a and knob 1c

1. Open the front cover of the OHCF.

User Guide18-10
