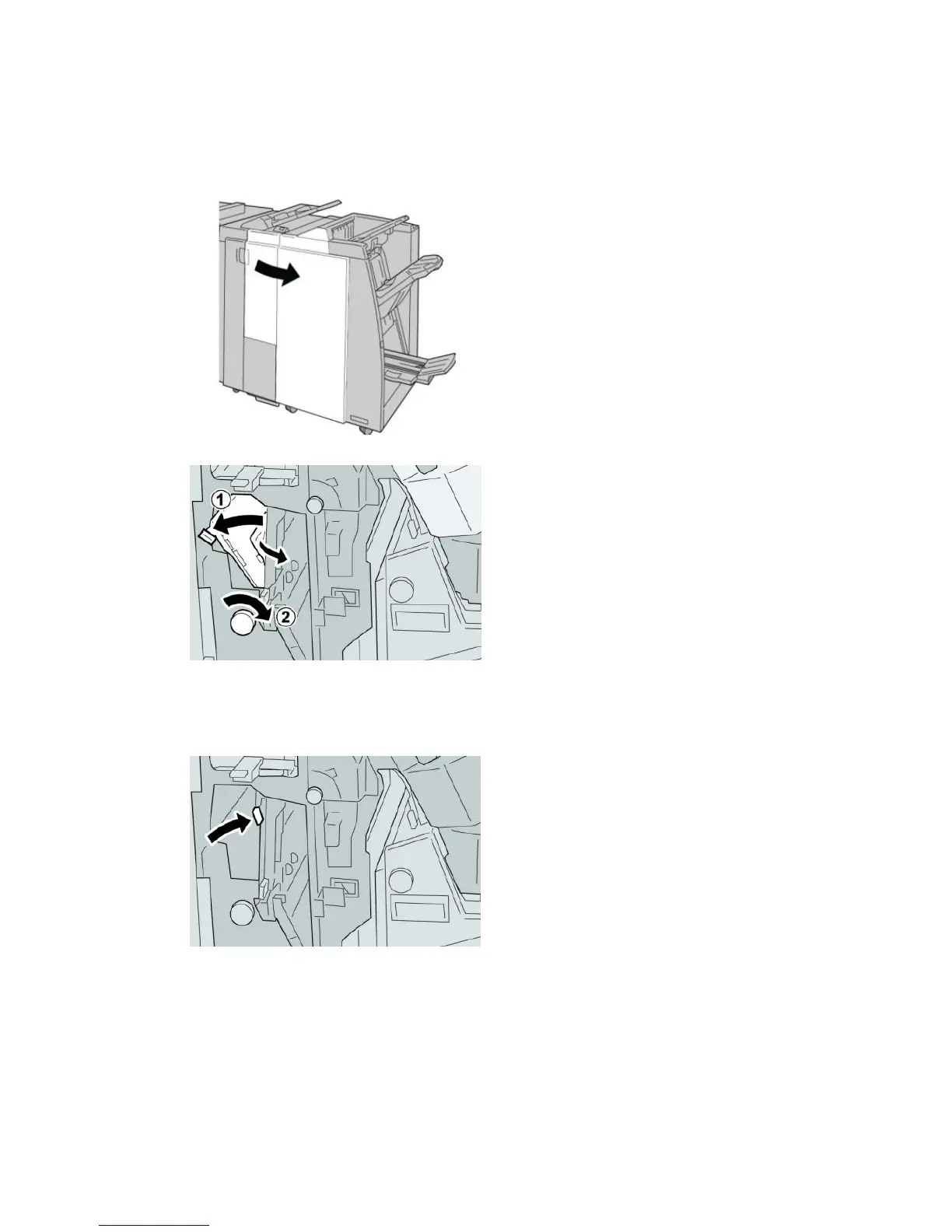

Paper jams at lever 2b and knob 2c

1. Make sure that the machine has stopped printing.

2. Open the right cover on the finisher.

3. Move the lever 2b and turn the knob 2c; remove the jammed paper.

Note

If paper is torn, check inside the machine and remove it.

4. Return the lever 2b to its original position.

5. Close the right cover on the finisher.

Note

A message will display and the machine will not operate if the right cover is open

even slightly.
