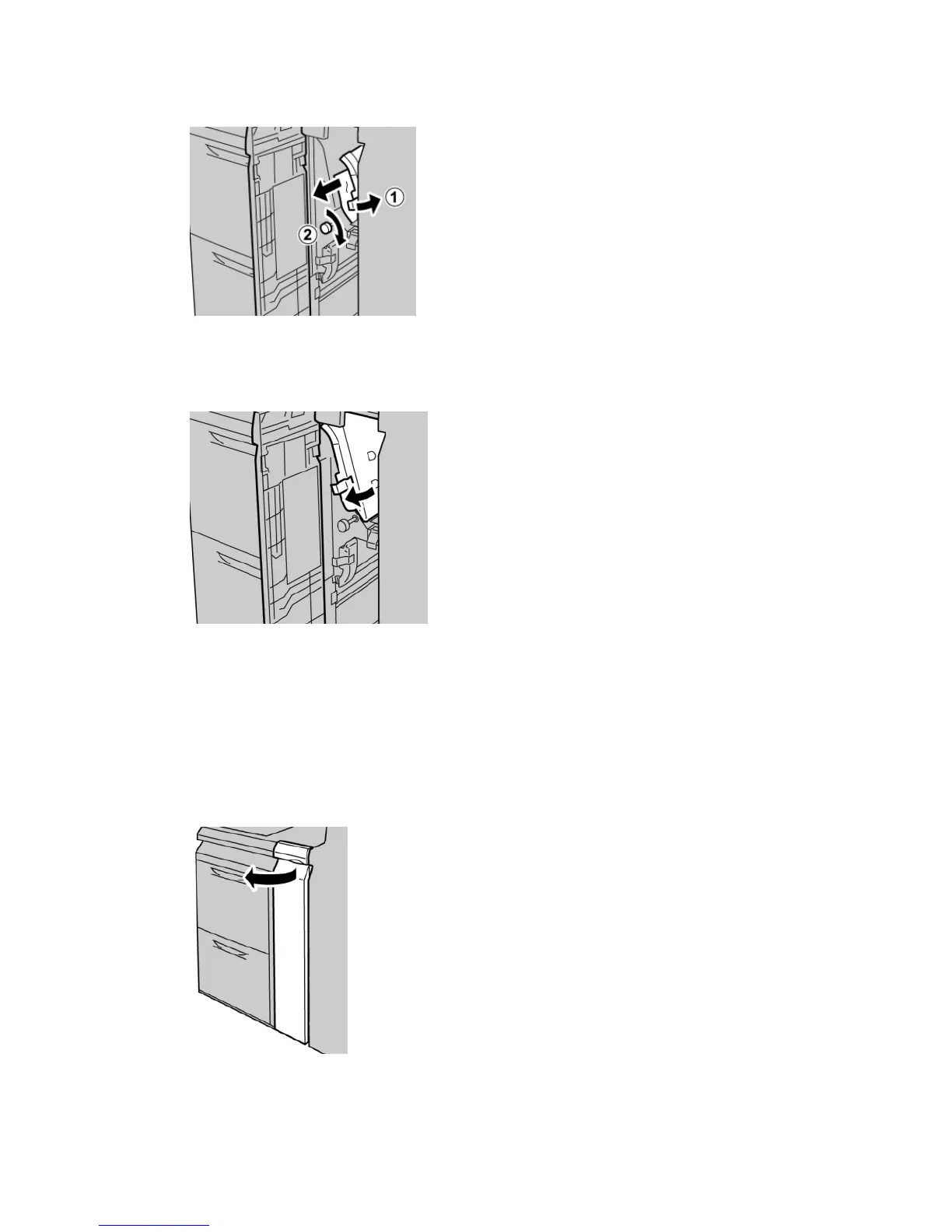

2. Move the lever 1a to the right and turn the knob 1c to the right. Remove the jammed

paper.

Note

If paper is torn, check inside the machine and remove it.

3. Return the lever 1a to the original position.

4. Close the front cover of the OHCF.

Note

If the front cover of the OHCF is not completely closed, a message will appear and

the machine will not operate.

OHCF paper jams at lever 1b and knob 1c

1. Open the front cover of the OHCF.

18-11Xerox

D95/D110/D125/D136 Copier/Printer

User Guide

Oversized High Capacity Feeder (OHCF), 1 or 2 trays (Trays 6/7)

Default Chapter3
- Table of Contents3
