Paper path

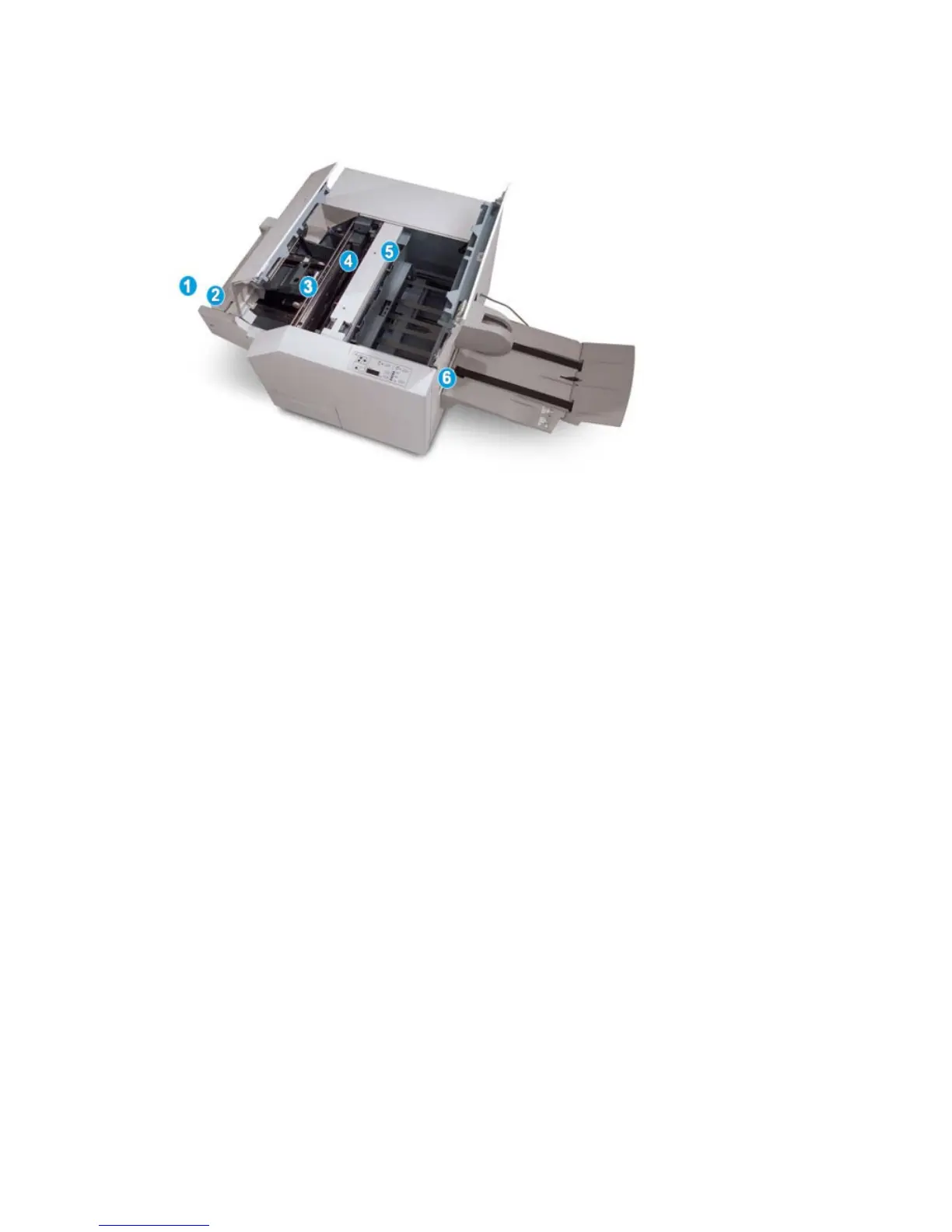

1. The booklet leaves the booklet area of the finisher and enters the SquareFold
Trimmer Module.
2. The Booklet Exit sensor (in the SquareFold Trimmer Module) detects the lead edge
(spine) of booklet and moves the booklet to the square fold area.
3. Once the booklet spine reaches the square fold area, the booklet is clamped and
the square-folding operation begins.
4. The booklet is flattened and the spine squared according to the square-fold setting
indicated on the control panel.
5. After the booklet is flattened and the spine squared, it is moved to the trimmer area.
a. Based on the finished booklet size, the booklet is moved until the trail edge
reaches the trimmer cutter.
b. The trail edge is trimmed/cut (based on the finished booklet size entered for
the Trimmer Mode Setting).
6. The booklet is then moved to the exit area where it is transported to the Booklet
Output Tray.
Note
Booklets exiting/leaving the SquareFold Trimmer Module may contain trim
remnants/scraps from the previously trimmed booklet. This is due to static electricity
build-up and is normal. If booklets contain trim remnants/scraps, simply remove and
discard them.
