Replacing the Staple Waste Container on the finisher

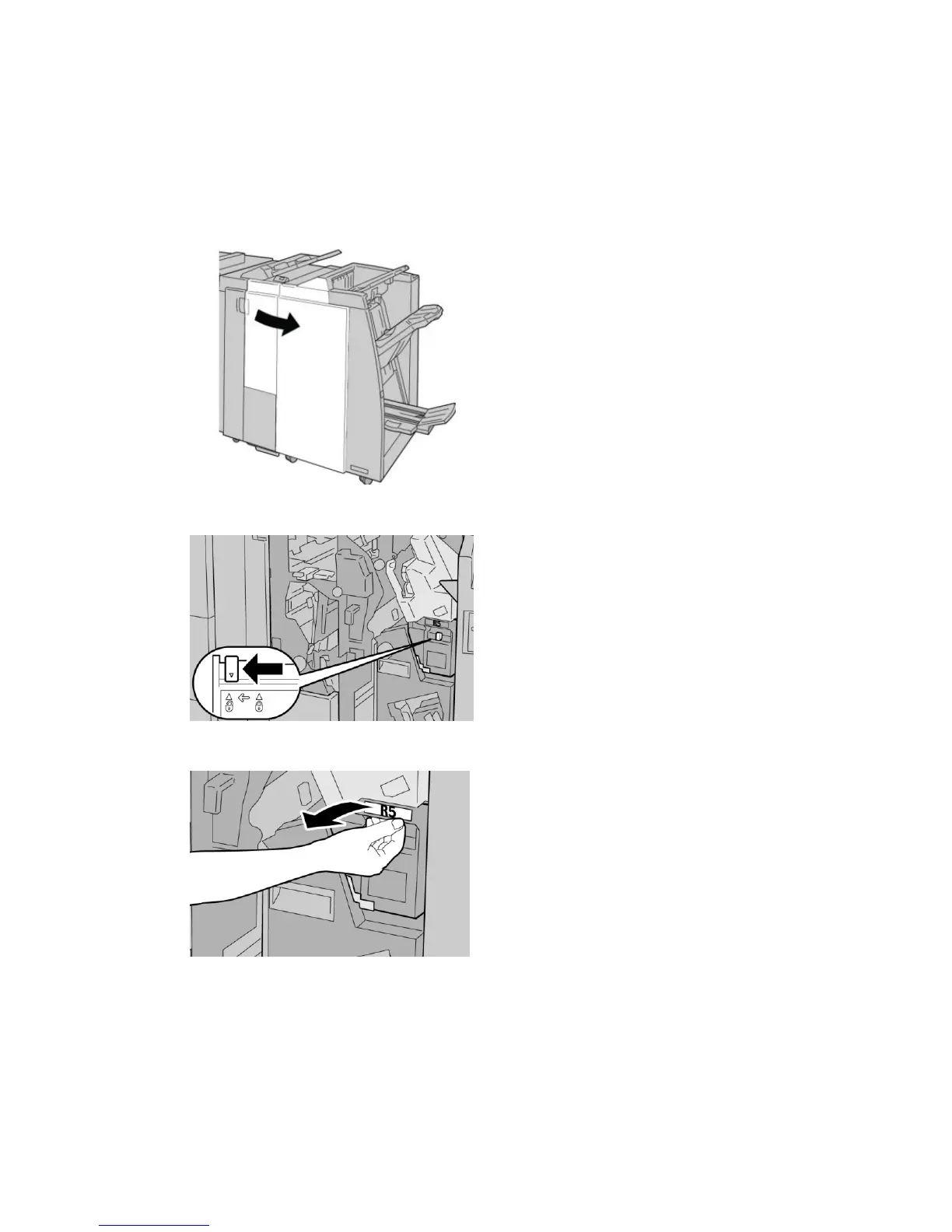

The machine displays a message indicating that the Staple Waste Container is full. To

replace the container:

1. Make sure that the machine has stopped printing.

2. Open the right cover on the finisher.

3. Locate the Staple Waste Container ( R5) in the finisher, and move the lock lever to

the unlock position.

4. Hold R5 as shown in the figure and remove the staple waste container from the

machine.

User Guide24-10
