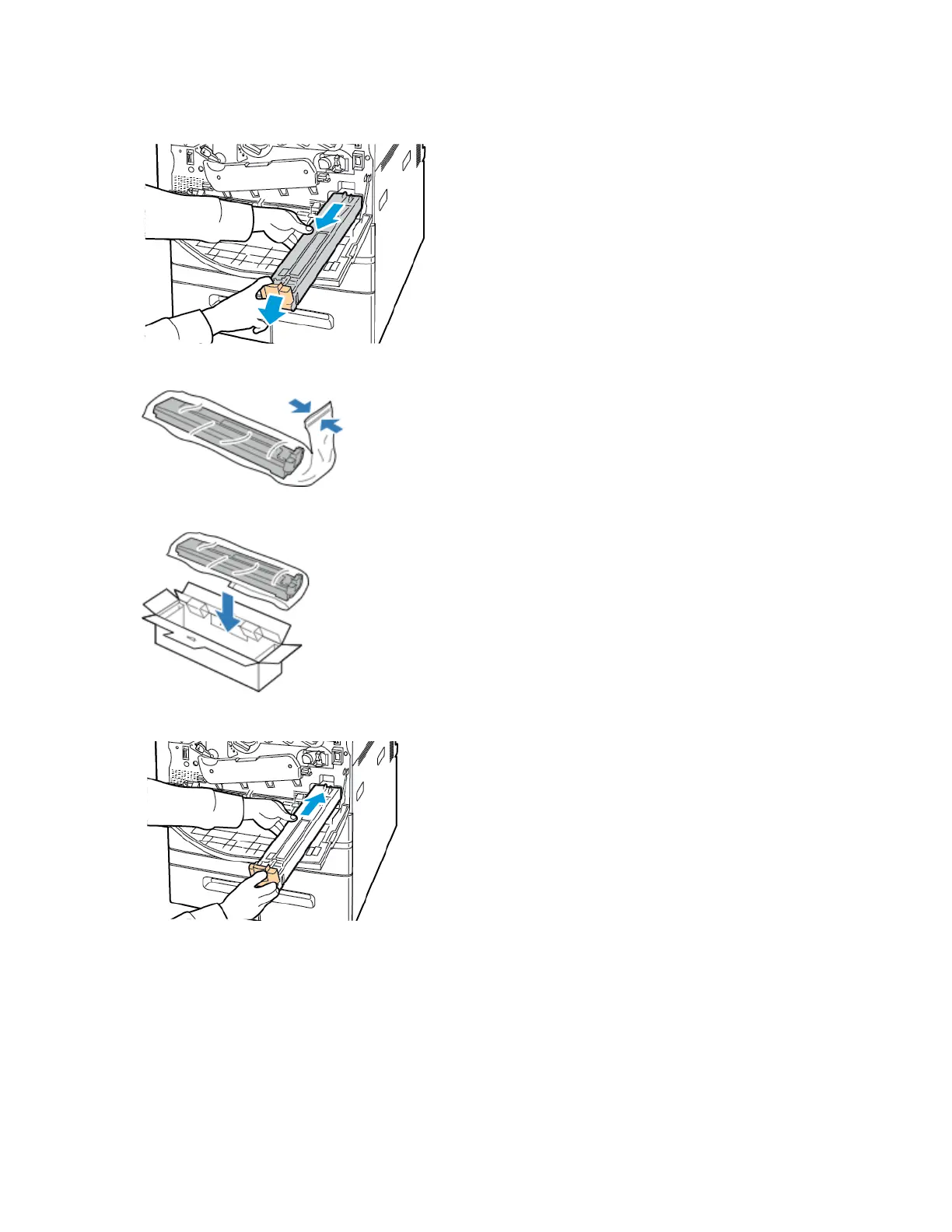

4. Grip the orange handle of the drum cartridge as shown, then pull the drum cartridge straight out of the printer.
Place the used drum cartridge in the plastic bag and place in the box.
WWaarrnniinngg:: Do not touch any toner adhering to the drum cartridge.
5. Remove the packing material from the end of the new drum cartridge.
6. Rest the new cartridge, along with its black plastic protective shield, in the cartridge slot. Load the cartridge in
the direction of the arrow on the top of the shield.
7. With the guides inserted in the slot, to remove the black paper sheet, pull it in the direction shown. Remove the
tape from the top of the cartridge shield.
8. Hold the shield, then use the orange handle to push the cartridge into the printer.
