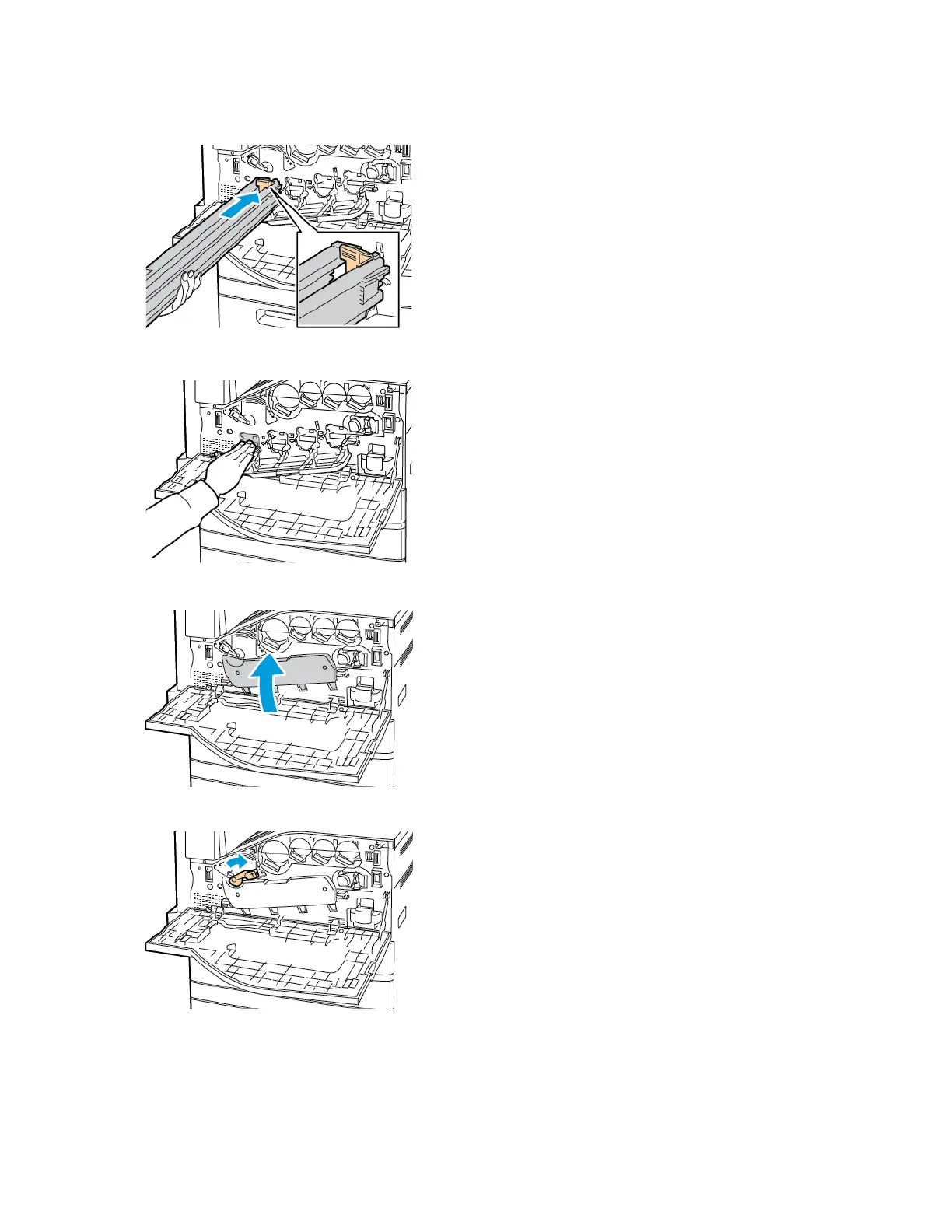

4. Pull the transfer belt cleaner straight out of the printer.
WWaarrnniinngg:: Do not touch any toner adhering to the transfer belt cleaner. Do not tilt the transfer belt
cleaner or toner could spill.
5. Remove the new transfer belt cleaner from the packaging. Retain the packaging.
6. Place the used transfer belt cleaner in the plastic bag.
7. Remove the protective cover from the new transfer belt cleaner.
CCaauuttiioonn:: Do not touch the surface of the transfer belt cleaner. Doing so could deteriorate image quality.
8. Support the new transfer belt cleaner with your left hand and slide it straight into the opening until it stops.
226 Xerox
®
EC8036/EC8056 Color Multifunction Printer User Guide
Maintenance
