Xerox FaxCentre F110 Service Manual

Repairs/Adjustments
4-4 12/04 FaxCentre F110
REP 2 Operation Panel Removal
Parts List on PL 1
1. Refer to REP 1.
2. Open the panel.

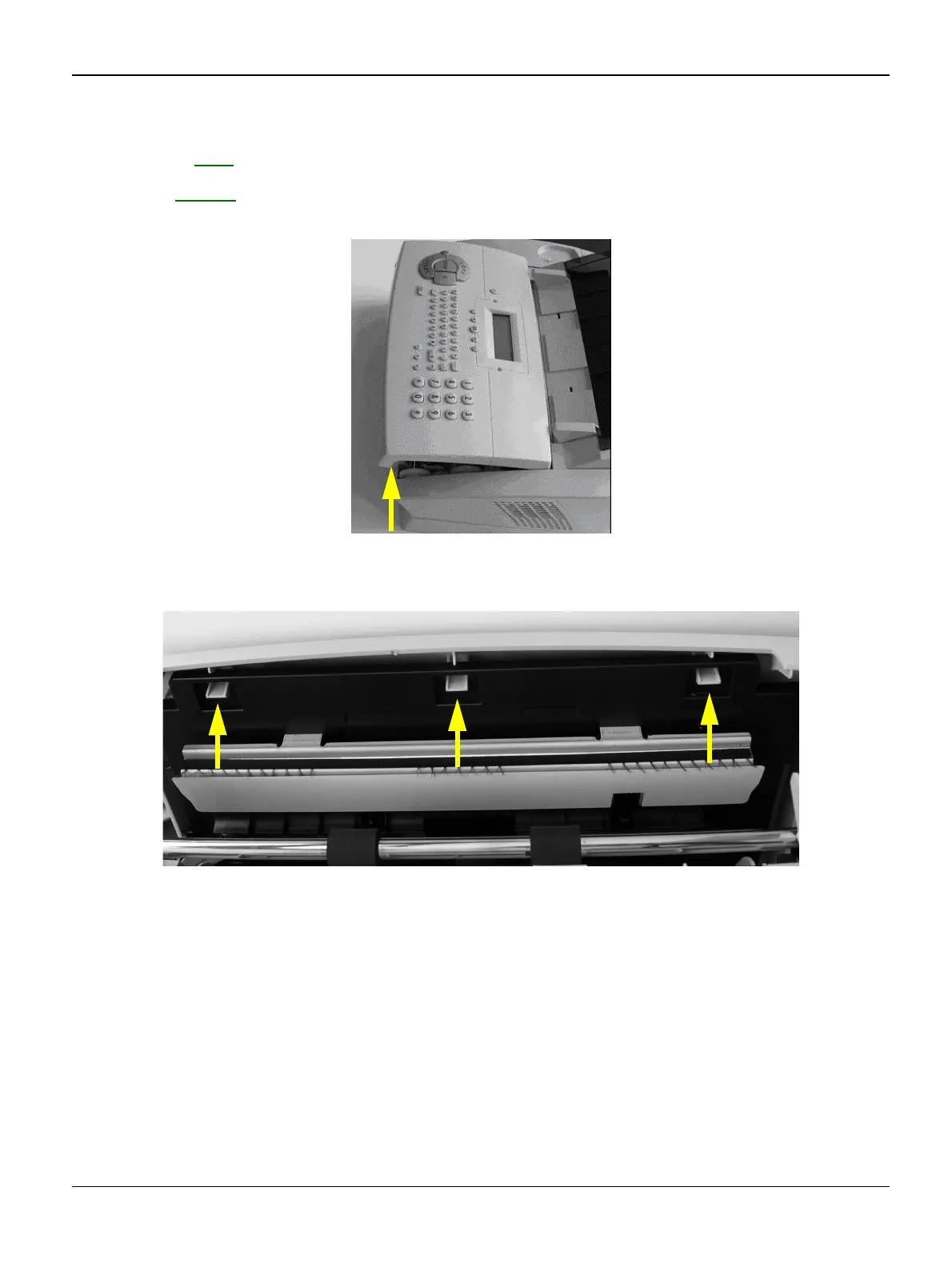

Figure 1
3. Pull the 3 snaps forward on the front underside of the panel.
Figure 2
4. Push the panel rearward to unclip the rear securing tabs.
5. Remove the OPU cable.
