Xerox FaxCentre F110 Service Manual

Repairs/Adjustments
FaxCentre F110 12/04 4-7
REP 5 Main Cover Removal
Parts List on PL 3
Remove Handset Cover and Right Cover
1. Perform REP 3.
2. Remove 2 screws of the Right Cover and the Handset Cover (220V) or Left Cover and pull up
while moving it towards the centre of the machine to release the left side securing tabs.

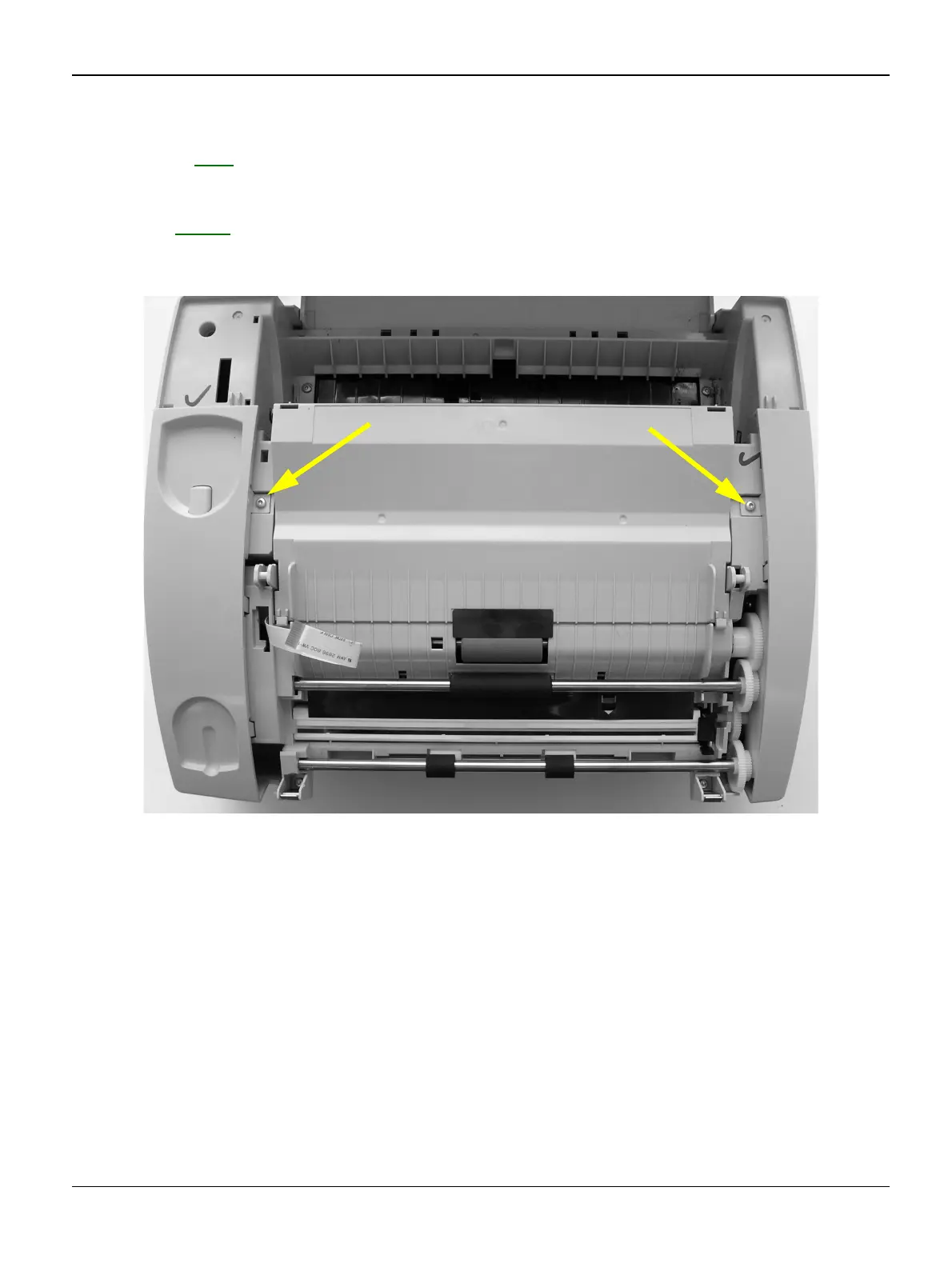

Figure 1
