Spare Parts List
5-6 12/04 FaxCentre F110

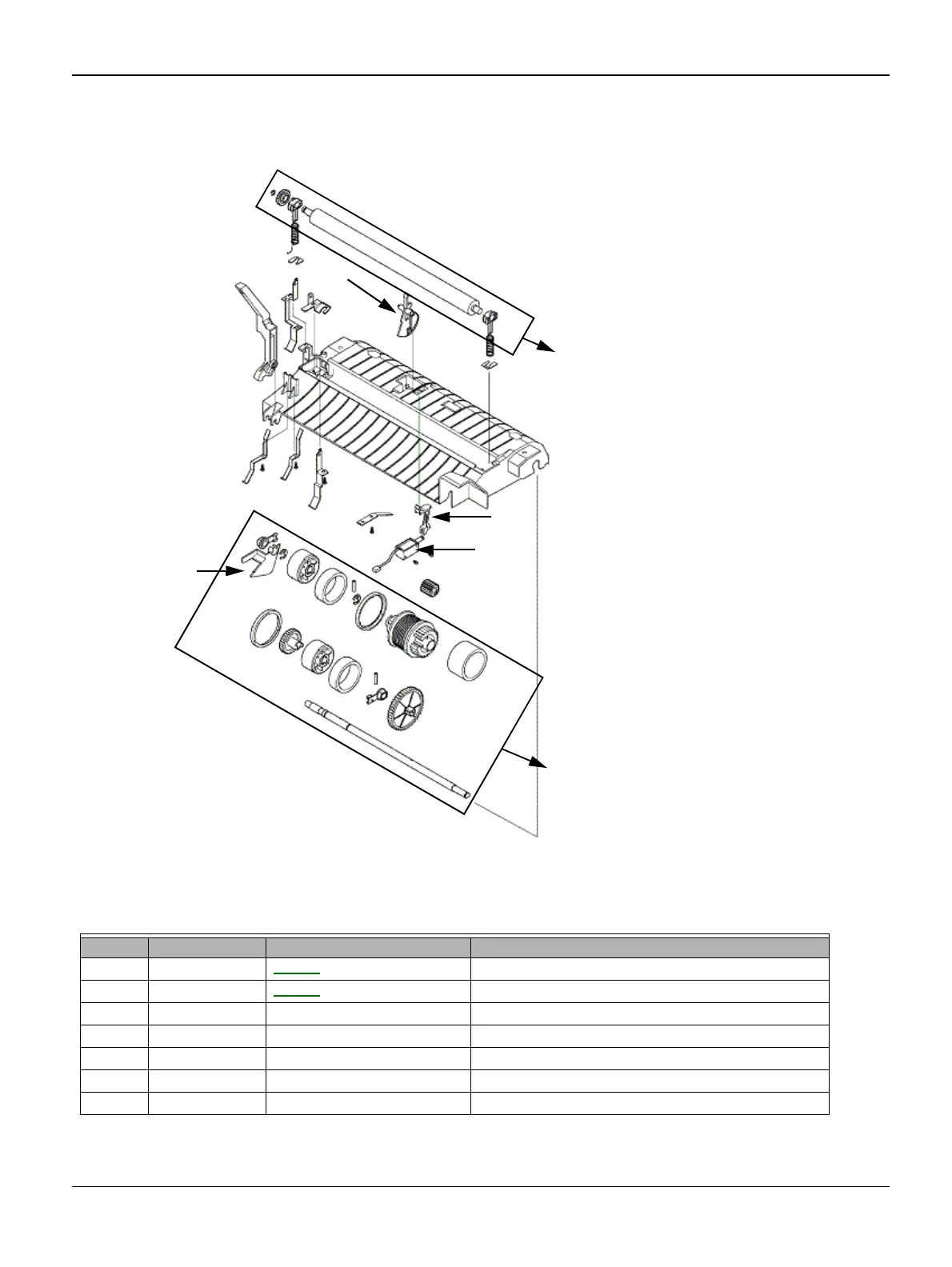

PL 4 Paper Feeder Assembly
INDEX PART NO COMMENT DESCRIPTION
1-6 130N01370 REP 7
PAPER FEEDER COMPLETE
1 022N02106 REP 7
FEED ROLL ASSY
2 022N02107 TRANSFER ROLL ASSY
3 121N01083 SOLENOID ASSY
4 011N00494 PICKUP HOOK LEVER
5 130N01371 ACTUATOR PAPER SENSOR
6 130N01372 ACTUATOR INPUT SENSOR
2
5
3
4
1
6
