CClleeaarriinngg PPaappeerr JJaammss ffrroomm tthhee TTrraayy 11 AArreeaa
To resolve the error displayed on the control panel, clear all paper from the paper path.

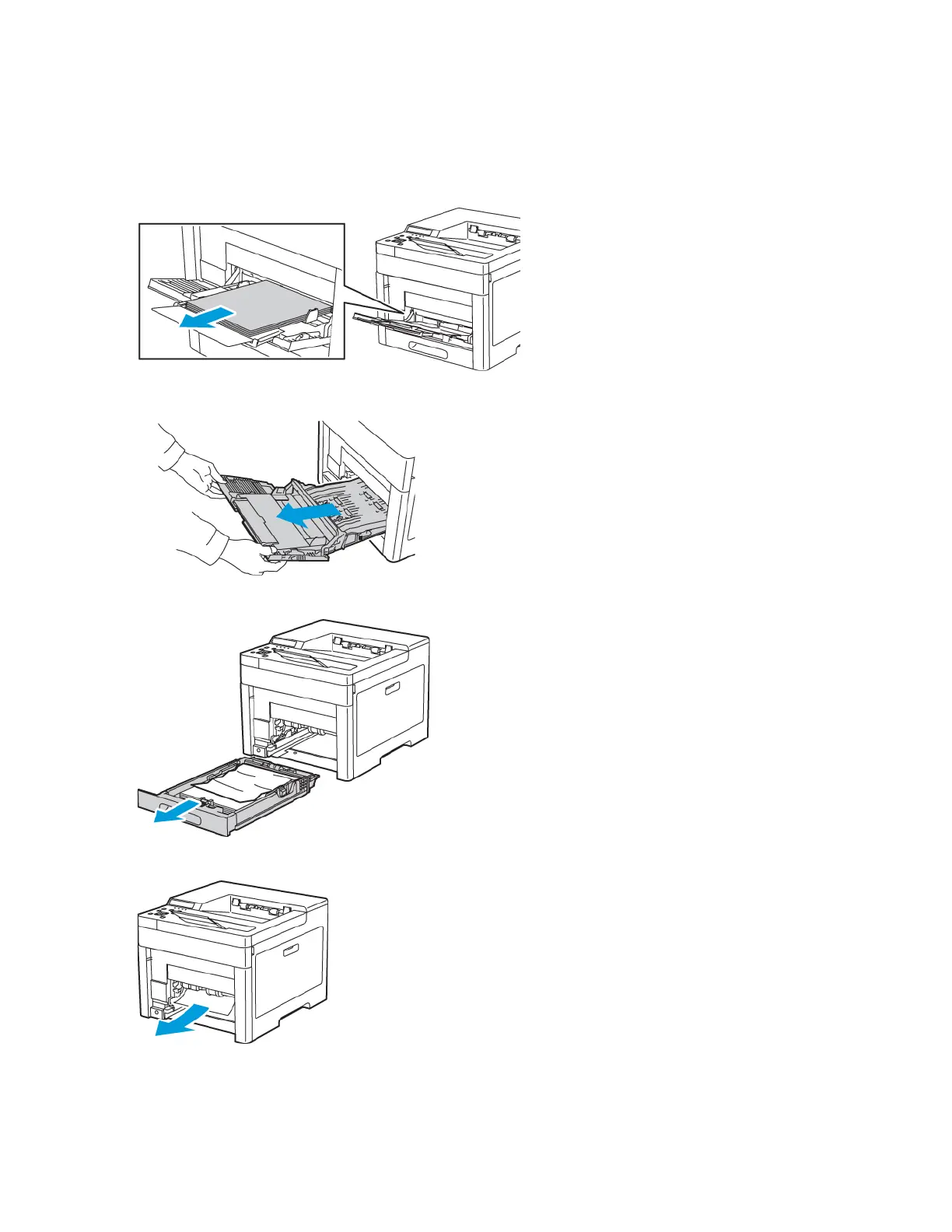

1. Remove any paper from the bypass tray.
2. Grasp both sides of the Bypass Tray, then pull it straight out of the printer.
3. Remove Tray 1 from the printer.
4. Remove any crumpled paper from the tray and any remaining paper jammed in the printer.
Xerox
®
Phaser
®
6510 Printer
User Guide
131
Troubleshooting
