IInntteerrnnaall PPaarrttss

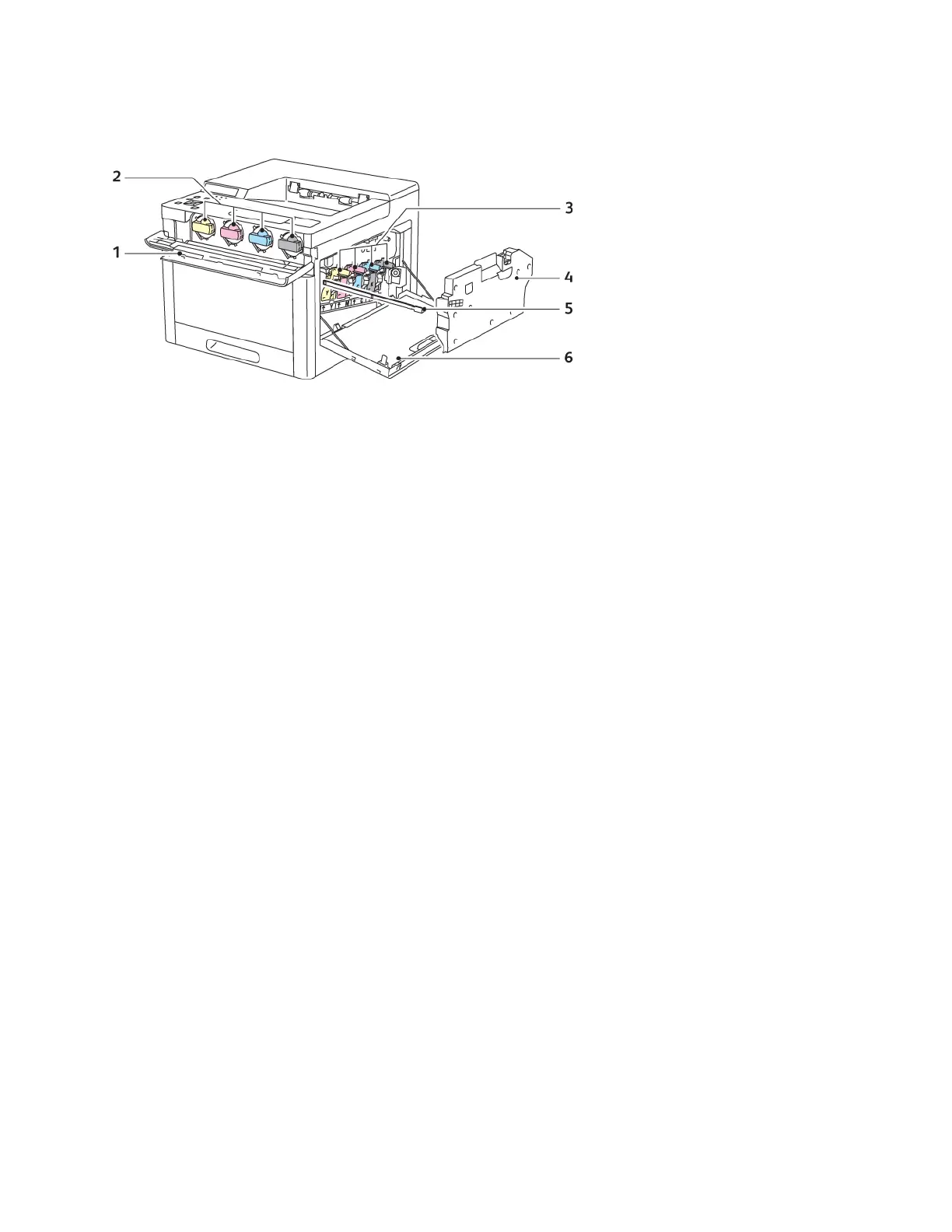

1. Right-Side Door
2. Toner Cartridges
3. Drum Cartridges
4. Waste Cartridge
5. Cleaning Rod
6. Right-Side Door
CCoonnttrrooll PPaanneell
The control panel consists of a touch screen and buttons you press to control the functions available
on the printer. The control panel:
• Displays the current operating status of the printer.
• Provides access to print features.
• Provides access to reference materials.
• Provides access to Tools and Setup menus.
• Prompts you to load paper, replace supplies, and clear jams.
• Displays errors and warnings.
• Provides the Power/Wake button used for turning on or turning off the printer. This button also
supports the power-saver modes, and blinks to indicate the power status of the printer.
Xerox
®
Phaser
®
6510 Printer
User Guide
