Parts of the Printer

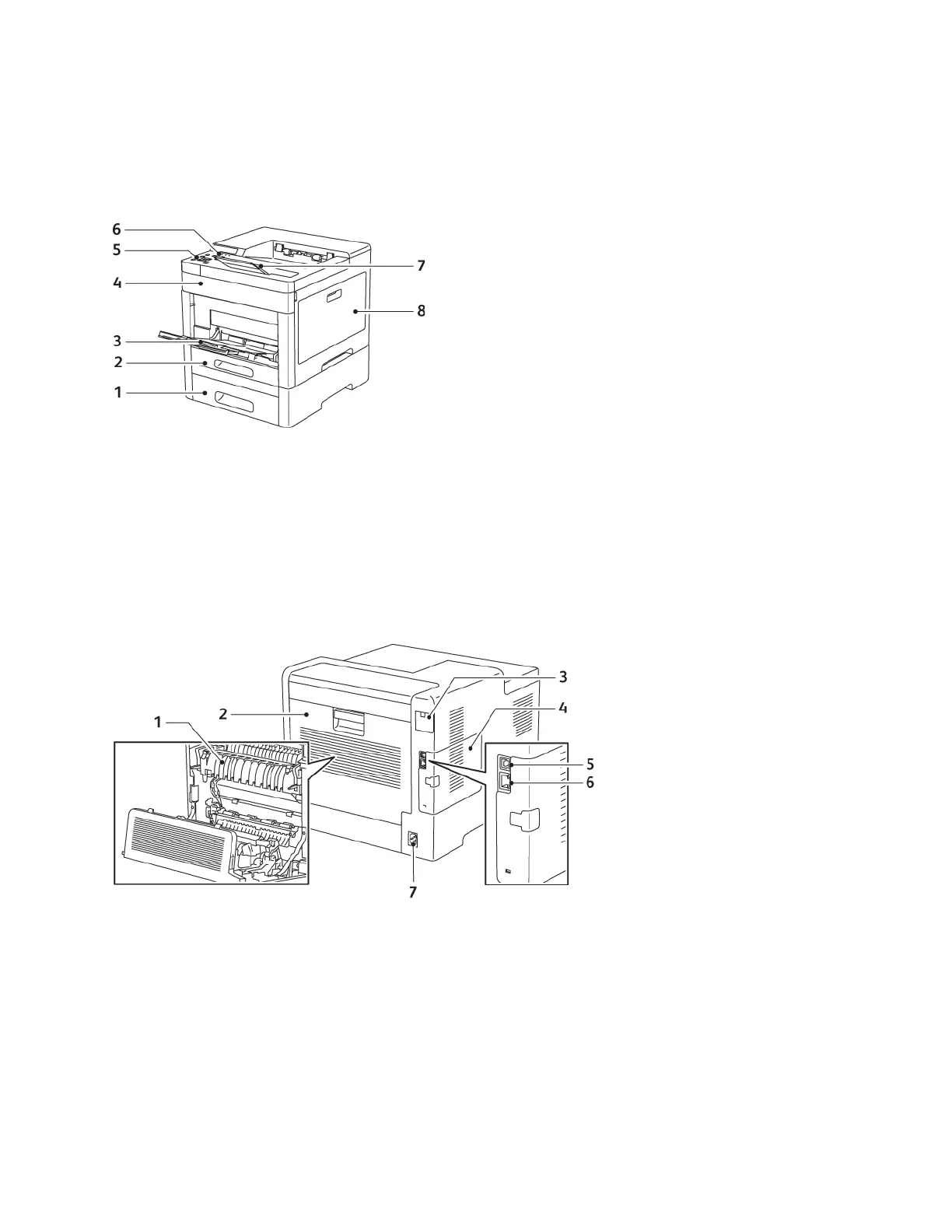

FFrroonntt VViieeww
1. Tray 2, Optional 550-Sheet Feeder
2. Tray 1
3. Bypass Tray
4. Front Door
5. Power/Wake Button
6. Touch Screen
7. Output Tray Extension
8. Right-Side Door
RReeaarr VViieeww
1. Fuser
2. Rear Door
3. Wireless Network Adapter Port Cover
4. Left-Side Cover
5. USB Port
6. Ethernet Connection
7. Power Connector
