Xerox® WorkCentre® 3215/3225 Multifunction Printer Service Manual
REP 1.34
Repairs
17. Remove the Right Frame Paper Path screws (3) and the Exit Assembly screw (2) (Figure
14).

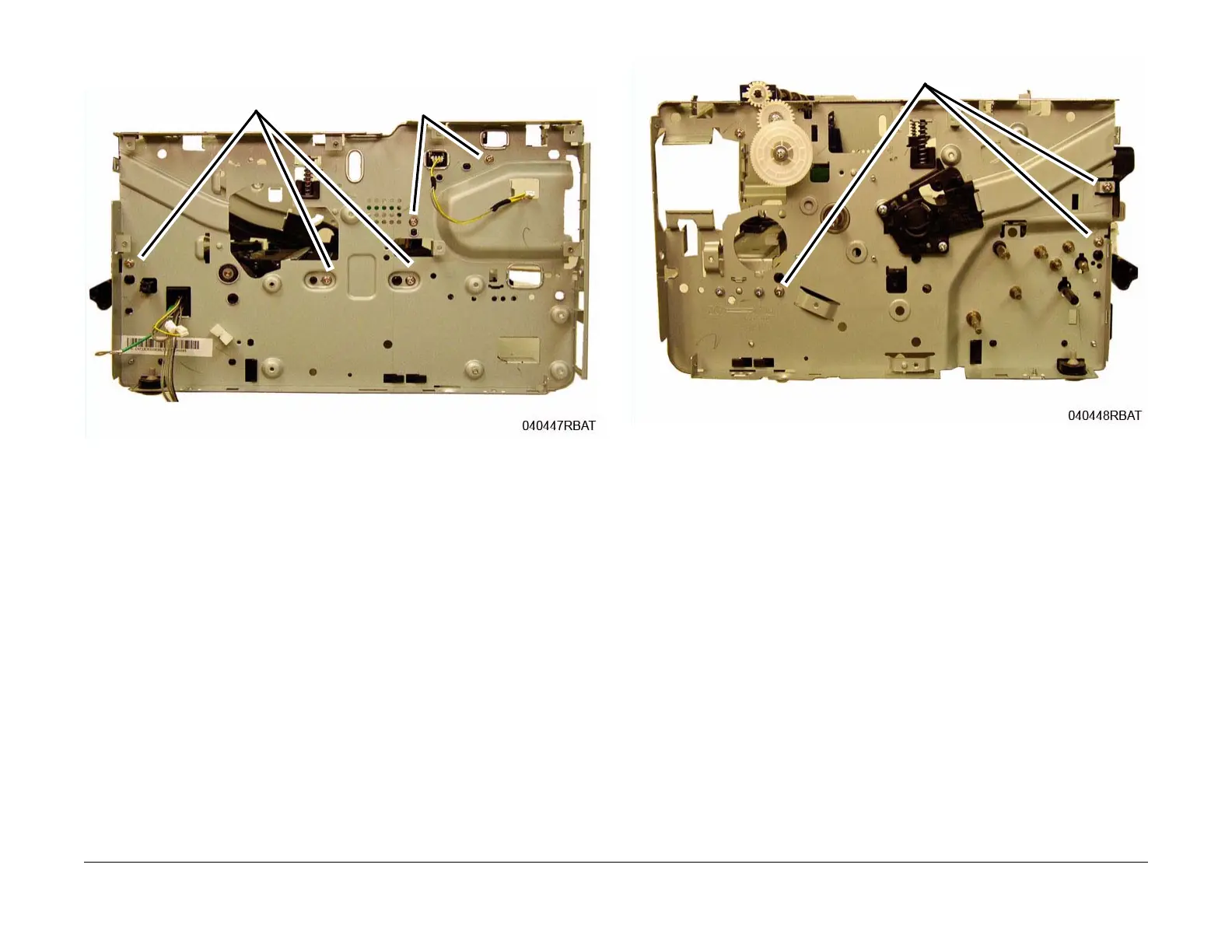

Figure 14 Right Frame Screws Removal
18. Remove the Left Frame Paper Path screws (3) (Figure 15).
Figure 15 Left Frame Screw Removal
19. Separate the Left and Right Frames from the Paper Path Frame, route the wires through
the frames as needed.
Frame Screws
Exit Screw
Screws
