June 2014
4-16
Xerox® WorkCentre® 3215/3225 Multifunction Printer Service Manual
REP 1.9
Repairs

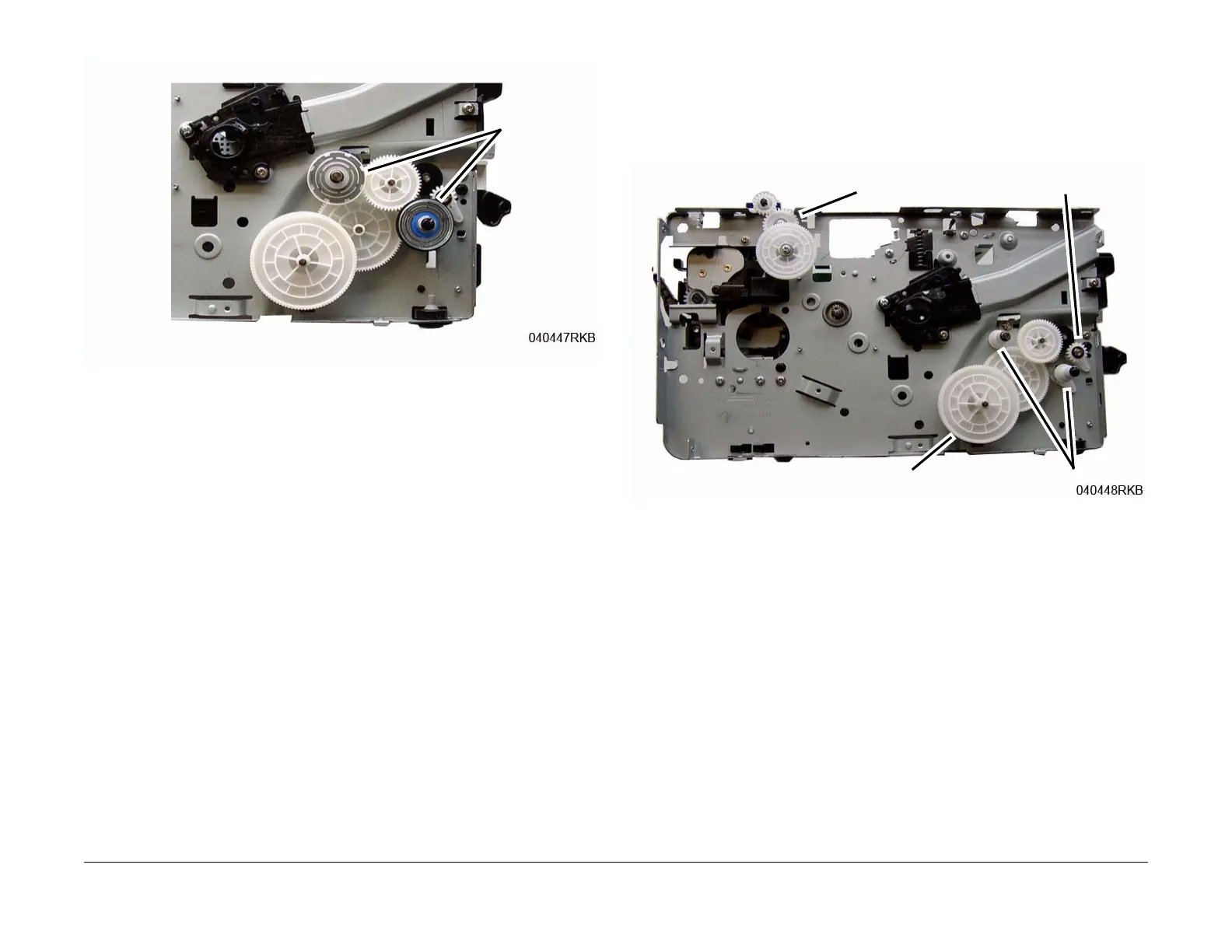

Figure 4 Feed and Registration Clutch Drive Gears
8. Remove the following (Figure 5):
Make note of the order that the Feed and Registration Drive Gears were removed so that
they may be re-installed correctly.
a. Feed and Registration Drive Gears, there is a Snap Ring on one gear.
b. Feed and Registration Clutch Bushings (2 Snap Rings).
c. Exit Drive Gears, (2 screws and a Latch).
Figure 5 Drive Gears and Bushings
Clutch Drive
Gears
Snap Ring
Exit Drive Gears
Feed & Registration Drive Gears
Clutch Bushings
