Xerox® WorkCentre® 3215/3225 Multifunction Printer Service Manual
REP 1.9
Repairs
9. Remove the following from the Left Frame (Figure 6):
a. Shaft Bushings (2), release the latches.
b. LSU Assembly Support (2 screws).
c. Paper Path Module screws (5).

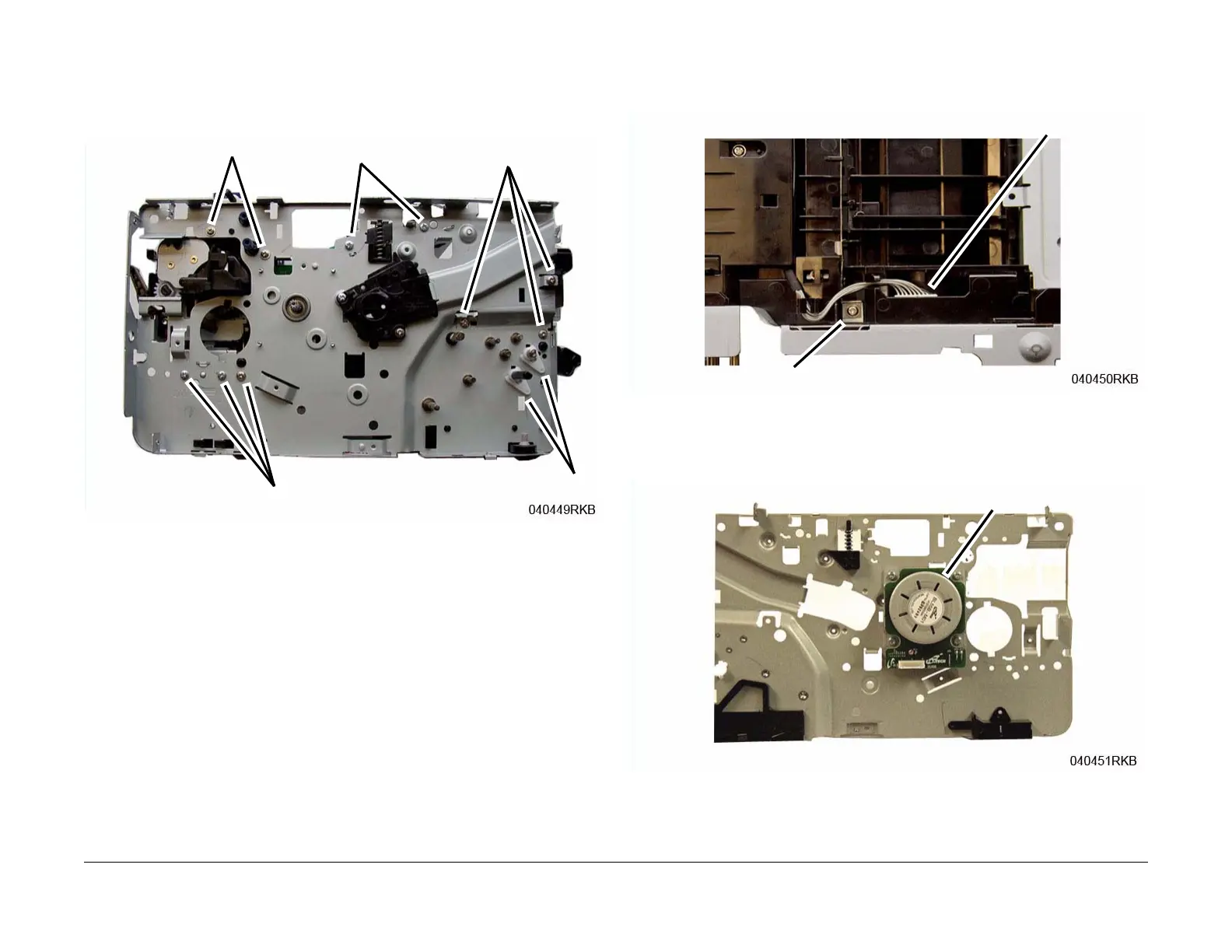

Figure 6 Left Frame Screw Removal
10. On the bottom of the Printer (Figure 7):
a. Disconnect the Drive Motor Connector.
b. Remove the screw (1) and the Ground Clip.
Figure 7 Drive Motor Connector & Ground Clip (Bottom View)
11. Remove the Left Frame screws (3) (Figure 6).
12. Remove the Drive Motor (4 screws) (Figure 8).
Figure 8 Drive Motor
Step 8b
Step 8c
Step 8c
Step 11
Step 8a
Connector
Screw
Drive Motor

Xerox WorkCentre 3215 Specifications

General

Print Technology	Laser
Print Speed	Up to 27 ppm
Scan Resolution	Up to 600 x 600 dpi
Copy Speed	Up to 27 cpm
Copy Resolution	Up to 600 x 600 dpi
Paper Capacity	250 sheets
ADF Capacity	40 sheets
Monthly Duty Cycle	Up to 30, 000 pages
Functions	Print, Copy, Scan, Fax
First Page Out Time	As fast as 8.5 seconds
Processor	600 MHz
Duplex Printing	Manual
Fax Speed	33.6 Kbps
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	A4, A5, A6, B5, Letter, Legal, Executive
Maximum Paper Size	Legal
Operating System Compatibility	Windows, Mac, Linux
