HeiTel by Xtralis ipVG Product Guide
29794_00 19

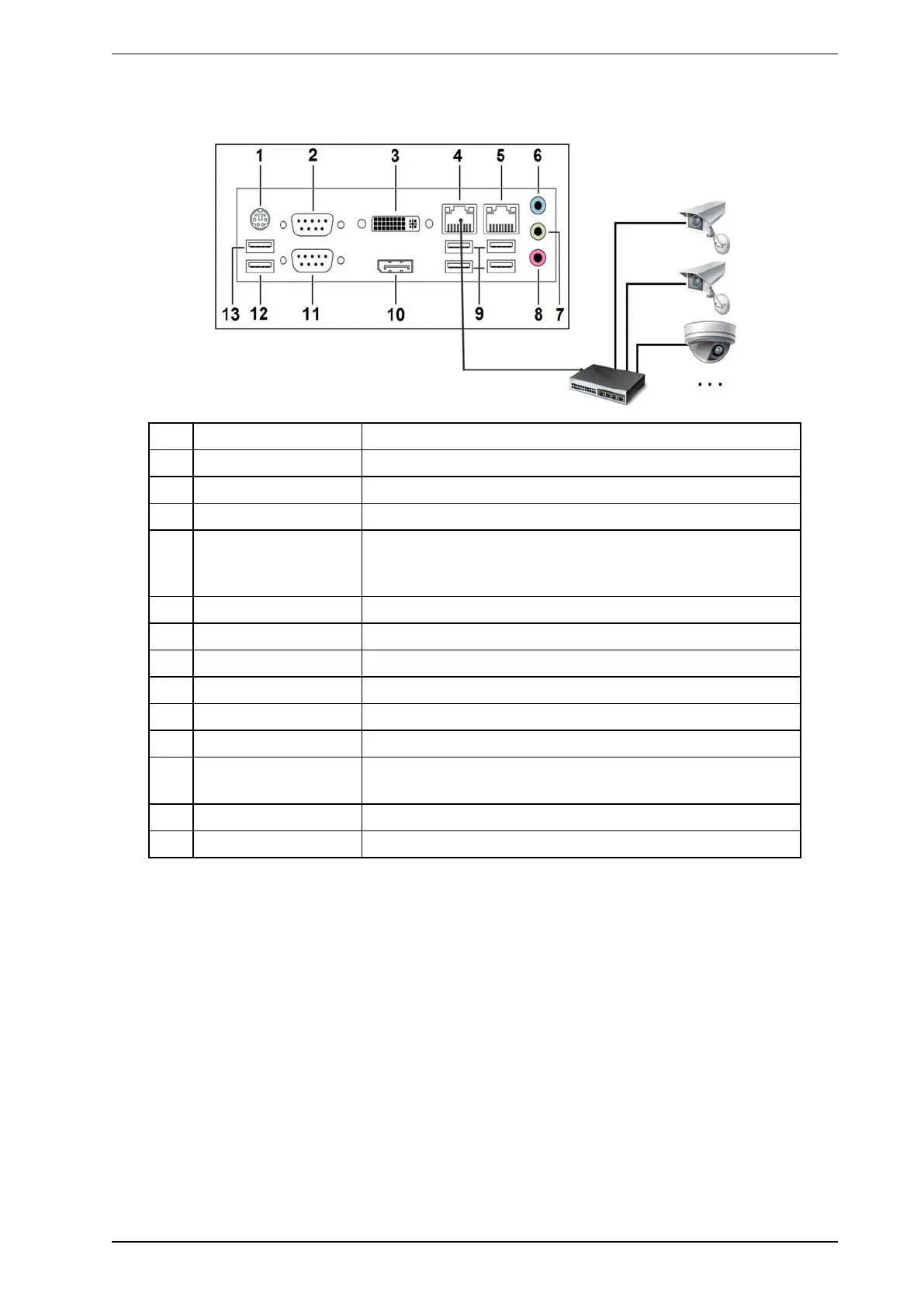

5 Rear View and Description
Item Type / Designation Function
1 PS/2 reserved for further applications
2 RS 232 reserved for further applications
3 DVI-I reserved for further applications
4 Ethernet 1GBit/s Camera network; IP cameras connected using the Ethernet
interface.The illustration above shows an example of how IP
cameras can be connected to the ipVG via a switch.
5 Ethernet 1GBit/s Configuration and communication network
6 Audio Audio line in
7 Audio Audio line out
8 Audio Microphone in for audio recording and talk-back function
9 USB 1-4 reserved for further applications
10 HDMI reserved for further applications
11 RS 232 Transparent serial multifunction data interface / control interface,
e.g. for CIO adapter
12 USB reserved for further applications
13 USB reserved for further applications
