57

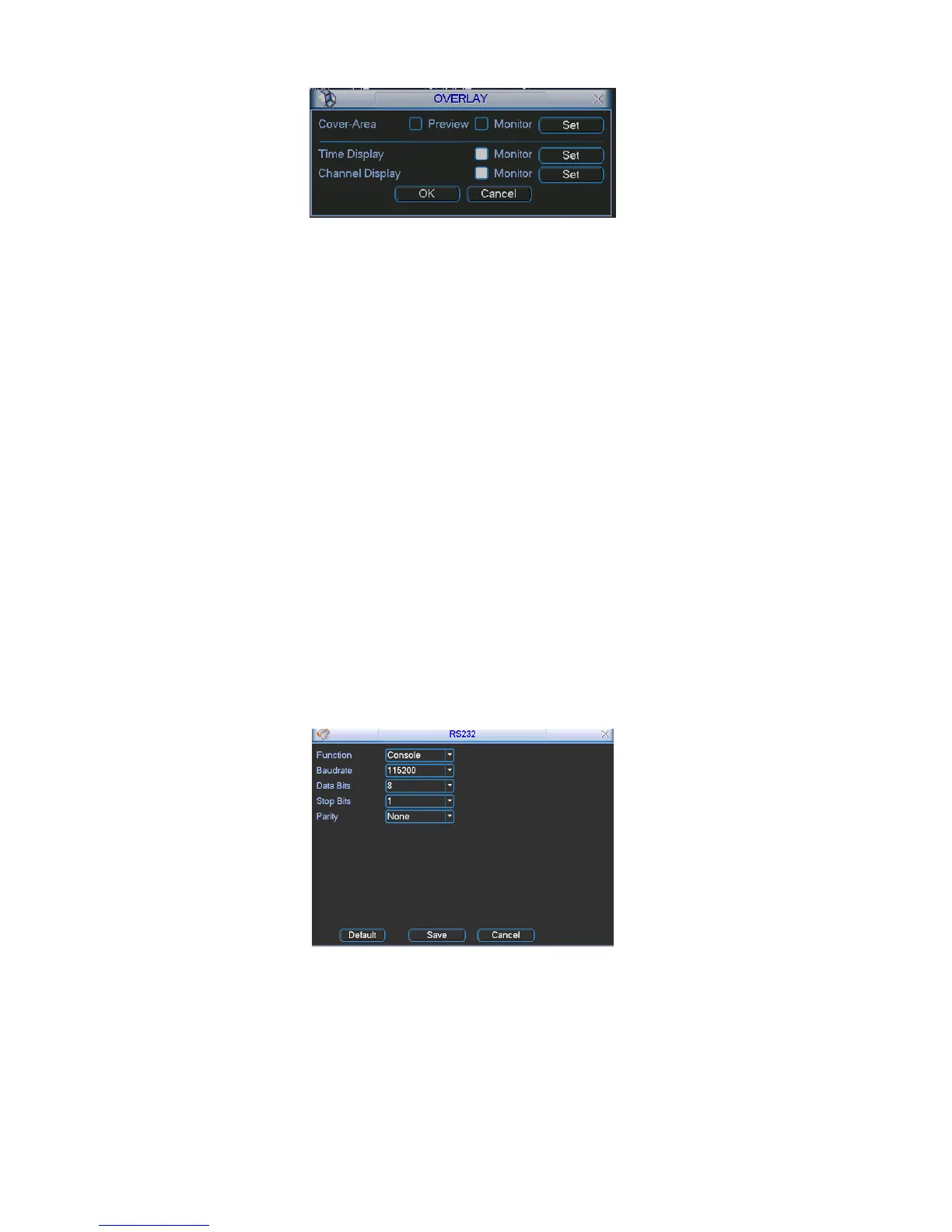

Figure 5-7
5.3.3 Schedule
Please refer to chapter 4.4 schedule.
5.3.4 RS232
RS232 interface is shown as below. There are five items. SeeX363H363H363H326H Figure 5-8
z Function: There are various devices for you to select. Console is for serial port or min-end
platform to upgrade program. Keyboard is for you to use special keyboard to control current
device.
z Baud rate: You can select proper baud rate.
z Data bit: You can select proper data bit. The value ranges from 5 to 8.
z Stop bit: There are three values: 1/1.5/2.
z Parity: there are three choices: none/odd/even.
System default setup is:
z Function: Console
z Baud rate:115200
z Data bit:8
z Stop bit:1
z Parity: None
After completing all the setups please click save button, system goes back to the previous menu.
Figure 5-8
5.3.5 Network
Here is for you to input network information. See X364H364H364H327HFigure 5-9.X
z IP address: Here you can input IP address.
z DHCP: It is to auto search IP. When enable DHCP function, you can not modify IP/Subnet mask
/Gateway. These values are from DHCP function. If you have not enabled DHCP function,
