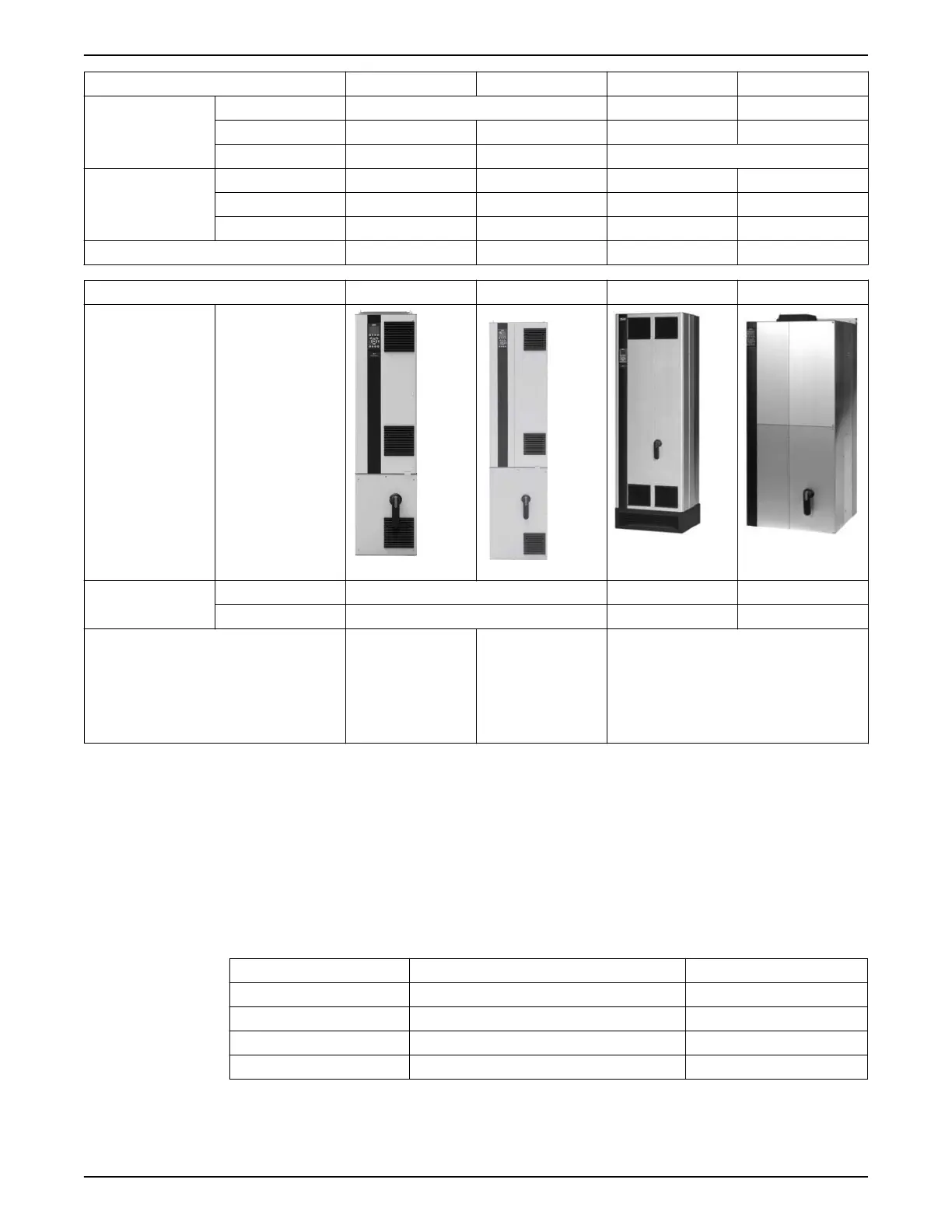

Frame size D5 D7 E1 E2
Shipping dimensions
in. (mm)
Height 25.98 (660) 31.65 (840) 32.72 (831)
Width 71.65 (1820) 97.24 (2470) 86.5 (2197) 67.13 (1705)
Depth 20.08 (510) 23.23 (590) 28.98 (736)
Drive dimensions
in. (mm)
Height 52.13 (1324) 77.87 (1978) 78.74 (2000) 60.91 (1547)
Width 12.8 (325) 16.54 (420) 23.62 (600) 23 (585)
Depth 15 (381) 15.2 (386) 18.45 (494) 9.61 (498)
Max. Weight lbs (kg) 255 (116) 440 (200) 690 (313) 611 (277)
Frame size D5 D7 E1 E2
Enclosure protection IP 00 21/54 00
NEMA Chassis Type 1/Type 12 Chassis
Normal overload rated power — 110% overload
torque
150–250 HP (110–
160 kW) at 400 V
(380–480 V)
150–200 HP (132–
160 kW) at 400 V
(380–480 V)
300–450 HP (200–
315 kW) at 400 V
250–400 HP (200–
400 kW) at 690 V
(525–690 V)
500–600 HP (355–450 kW) at 400 V (380–480
V)
450–600 HP (450–560 kW) at 690 V (525–690
V)
NOTE:
• The typical power loss is at nominal load conditions and expected to be within ±15%
(tolerance relates to variety in voltage and cable conditions).
• The losses are based on the default switching frequency. The losses increase
significantly at higher switching frequencies.
• D5h-D8h frames for IP21 and IP54 are based upon D1h and D2h ratings added with
the options cabinet for disconnect and fuse respectively, shown in the following table.
• The NEMA 3R cover kit is for D1h and D2h enclosure.
Table 3: D5h-D8h frames
Frame size Description Max. weight, kg (lbs)
D5h D1h ratings+disconnect and/or brake chopper 116 (255)
D6h D1h ratings+contactor and/or circuit breaker 129 (285)
D7h D2h ratings+disconnect and/or brake chopper 200 (440)
D8h D2h ratings+contactor and/or circuit breaker 225 (496)
3 Product Description
22 Aquavar
®
Intelligent Pump Controller - 150 HP to 600 HP INSTRUCTION MANUAL
