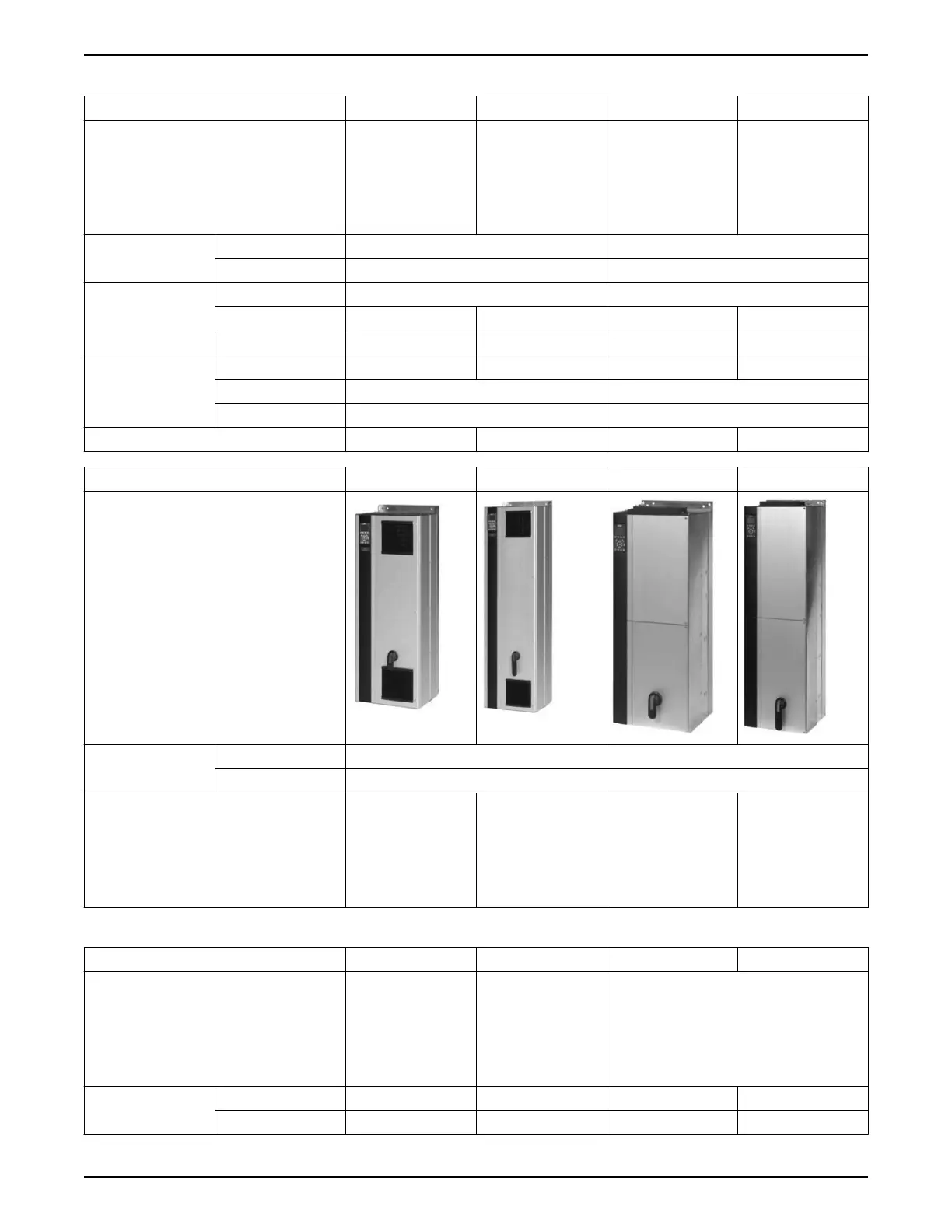

Table 1: Mechanical dimensions and rated power for D1, D2, D3, D4
Frame size D1 D2 D3 D4
Normal overload rated power 110% overload
torque
150–250 HP (110–
160 kW) at 400 V
150–200 HP (132–
160 kW) at 690 V
(525–690 V)
300–450 HP (200–
315 kW) at 400 V
250–400 HP (200–
400 kW) at 690 V
(525–690 V)
150–250 HP (110–
160 kW) at 400 V
(380–480 V)
150–200 HP (132–
160 kW) at 400 V
(380–480 V)
300–450 HP (200–
315 kW) at 400 V
250–400 HP (200–
400 kW) at 690 V
(525–690 V)
Enclosure protection IP 21/54 00
NEMA Type 1/Type 12 Chassis
Shipping Dimension
in. (mm)
Height 23.11 (587)
Width 39.25 (997) 46.06 (1170) 39.25 (997) 46.06 (1170)
Depth 18.11 (460) 21.06 (535) 18.11 (460) 21.06 (535)
Drive dimension
in. (mm)
Height 47.6 (1209) 62.56 (1589) 41.18 (1046) 52.24 (1327)
Width 16.54 (420) 16.06 (408)
Depth 14.96 (380) 14.76 (375)
Max. Weight lbs (kg) 229.3 (104) 332.9 (151) 200.62 (91) 304.24 (138)
Frame Size D1 D2 D3 D4
Enclosure protection IP 21/54 00
NEMA Type 1 / Type 12 Chassis
Normal overload rated power — 110% overload
torque
150–250 HP (110–
160 kW) at 400 V
(380–480 V)
150–200 HP (132–
160 kW) at 400 V
(380–480 V)
300–450 HP (200–
315 kW) at 400 V
250–400 HP (200–
400 kW) at 690 V
(525–690 V)
150–250 HP (110–
160 kW) at 400 V
(380–480 V)
150–200 HP (132–
160 kW) at 400 V
(380–480 V)
300–450 HP (200–
315 kW) at 400 V
250–400 HP (200–
400 kW) at 690 V
(525–690 V)
Table 2: Mechanical dimensions and rated power for D5, D7, E1, E2
Frame size D5 D7 E1 E2
Normal overload rated power 110% overload
torque
150–250 HP (110–
160 kW) at 400 V
(380–480 V)
150–200 HP (132–
160 kW) at 400 V
(380–480 V)
300–450 HP (200–
315 kW) at 400 V
250–400 HP (200–
400 kW) at 690 V
(525–690 V)
500–600 HP (355–450 kW) at 400 V (380–480
V)
450–600 HP (450–560 kW) at 690 V (525–690
V)
Enclosure protection IP 21/54 00 21/54 00
NEMA Type 1/Type 12 Chassis Type 1/Type 12 Chassis
3 Product Description
