Legend for Figure 30
A. TOP VIEW B. LEFT VIEW
1. AIR FILTER AND BRACKET ASSEMBLY
2. AIR FILTER HOSE
3. SHROUD
4. RADIATOR CAP
5. COOLANT HOSES
6. BATTERY AND BATTERY TRAY
7. BATTERY CABLE (NEGATIVE)
8. BATTERY CABLE (POSITIVE)
9. POWER DISTRIBUTION MODULE (PDM)
10. EXHAUST PIPE TO EXHAUST MANIFOLD
11. ENGINE HARNESS CONNECTOR
12. HYDRAULIC RETURN HOSE
13. CHASSIS HARNESS
14. TRANSMISSION MOUNT
15. TRANSMISSION OIL COOLER LINES
16. ELECTRONIC CONTROL MODULE (ECM) AND
BRACKET
17. FAN
18. FAN PULLEY AND FAN SPACER
19. BOTTOM RADIATOR HOSE
20. FUEL LINE
21. HYDRAULIC SUPPLY HOSE
1. BATTERY LOCKDOWN BAR
2. CAP
3. FLANGE NUT
4. LOCKWASHER
5. BATTERY
6. BATTERY TRAY
7. CAPSCREW
8. PDM
9. GROUND STRAP
10. FRAME

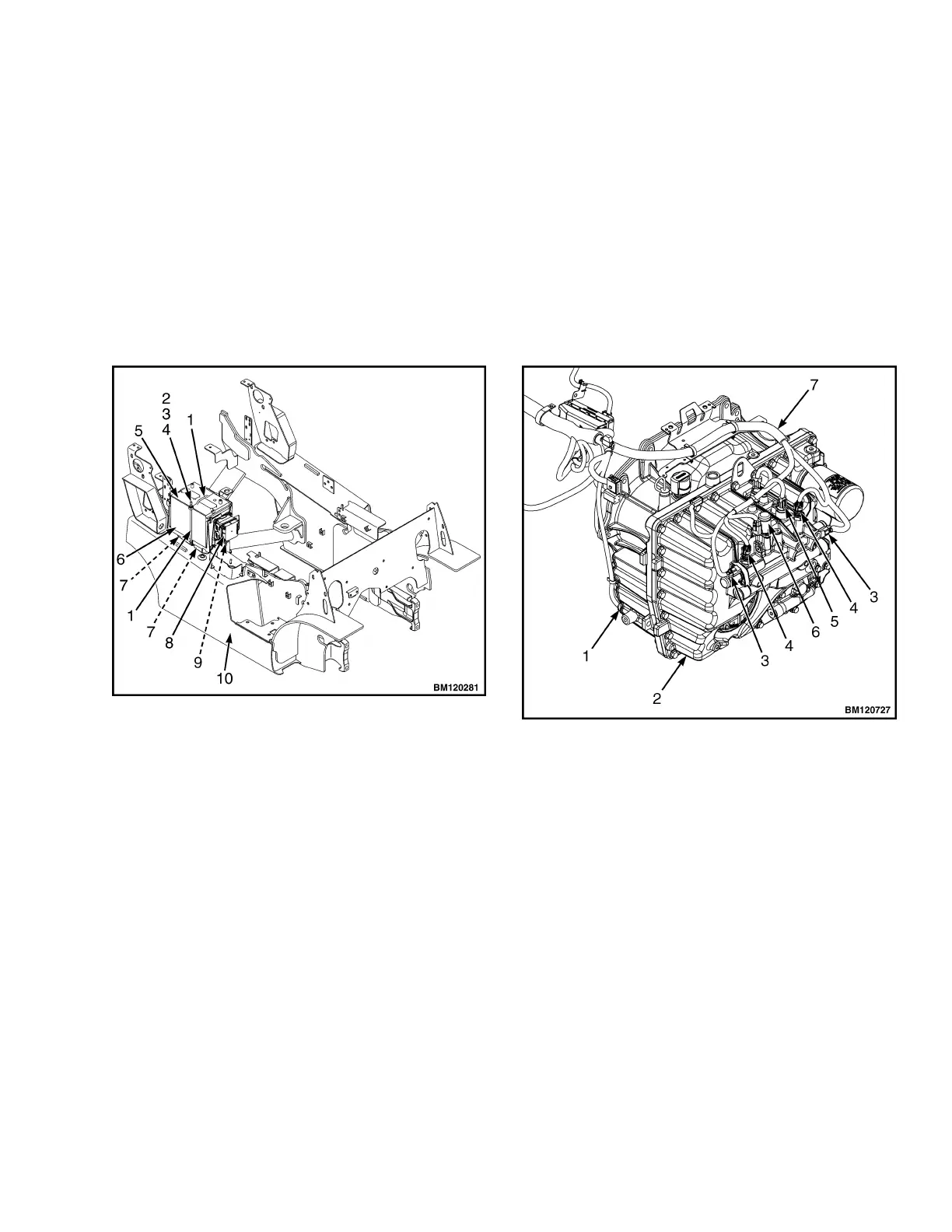

Figure 31. Power Distribution Module and Battery
Tray
1. TEMPERATURE SENSOR CONNECTOR
2. TRANSMISSION HOUSING
3. PROPORTIONAL VALVE CONNECTOR
4. TRANSDUCER CONNECTOR
5. TRANSMISSION SENSOR PLUG
6. SOLENOID VALVE CONNECTOR
7. ENGINE WIRING HARNESS
Figure 32. Transmission Electrical Connectors
0100 YRM 1766 Engine Replacement
33
