Yamaha 2010 YZF-R6 User Manual

– 7 –

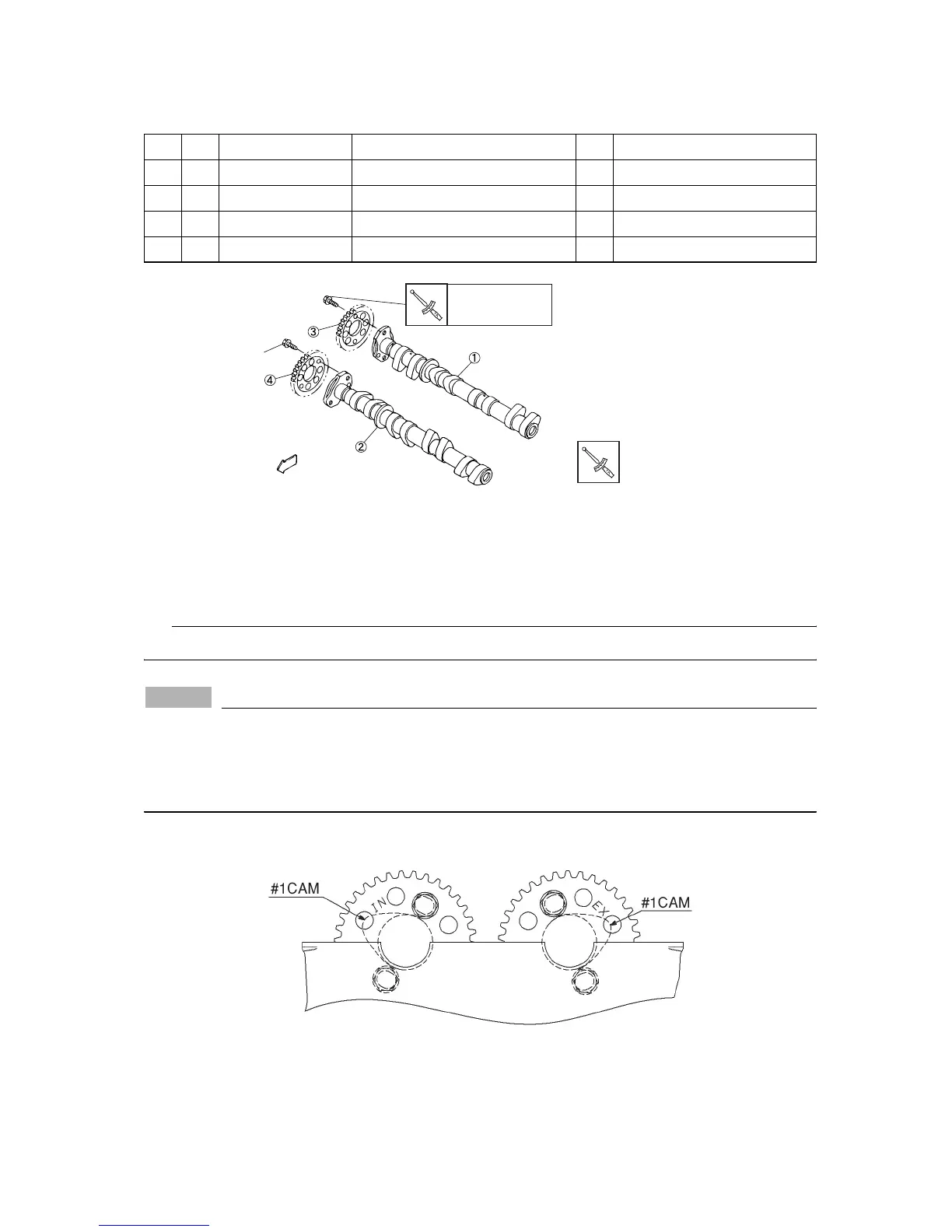

7. Cam Shaft and Cam Sprocket
Assembly of Cam Sprocket
By making the assembly holes of the cam sprocket of the racing kit long, the valve timing can
be adjusted within the range of -2º to +6 º (CA) compared with standard timing.
TIP
For valve timing adjustment, refer to the KIT TOOLS MANUAL.
NOTICE
• When fitting the camshaft, use the cam sprockets of the kit and always set the valve
timing to match. If otherwise, no intended performance can be expected and more
over, the engine may be damaged.
• When using this camshaft, use the valve spring set 2C0-A2110-70.
Parts List
No. PART No. PART NAME Q'TY REMARKS
1 2C0-12171-72 SHAFT, CAM 1 1 INT
2 2C0-12181-71 SHAFT, CAM 2 1 EXT
3 2C0-12176-80 SPROCKET, CAM 1 1 INT
4 2C0-12177-80 SPROCKET, CAM 2 1 EXT
STD
FWD.
Tightening torque
24 N•m (2.4 m•kg)
Tightening torque
Sprocket assembly position at top dead center point of #1 cylinder compression

Yamaha 2010 YZF-R6 Specifications

General

Bore x Stroke	67.0mm x 42.5mm
Compression Ratio	13.1:1
Fuel Delivery	Fuel Injection with YCC-T and YCC-I
Ignition	TCI: Transistor Controlled Ignition
Final Drive	Chain
Rear Brakes	220mm disc; single-piston caliper
Front Tire	120/70-ZR17
Rear Tire	180/55-ZR17
Length	80.3 in
Width	27.8 in
Height	43.1 in
Seat Height	33.5 in
Wheelbase	54.1 in
Fuel Capacity	4.5 gal
Wet Weight	417 lb
Engine Type	Liquid-cooled, inline 4-cylinder, DOHC, 16 valves
Transmission	6-speed
Front Suspension	41 mm inverted fork; 4.7-in travel
Rear Suspension	Single shock; 4.7-in travel
Front Brakes	Dual 310mm disc; radial-mount 4-piston calipers
