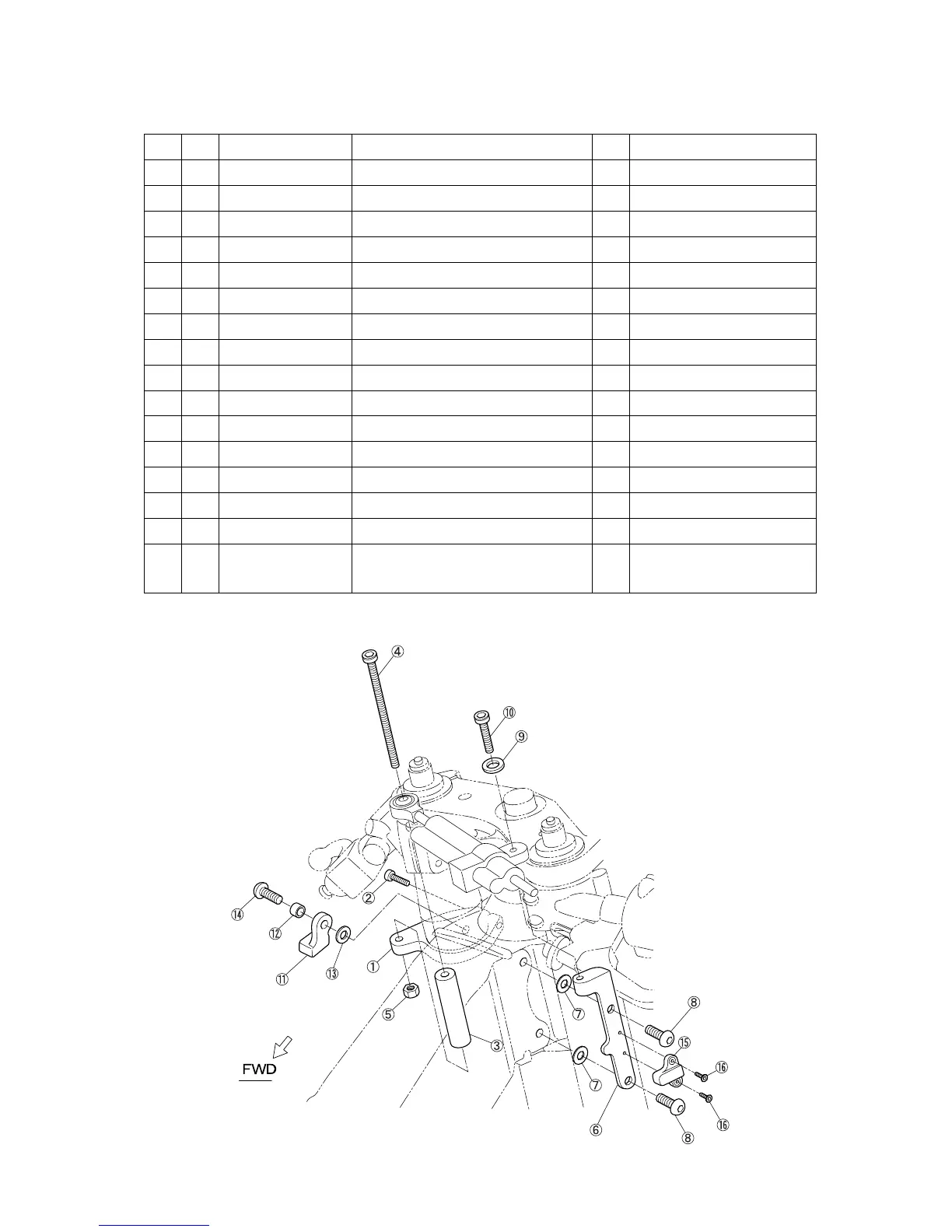

31. Steering Damper Stay Set (2C0-C3495-80)
For the steering damper, use [OHLINS SD121 STROKE 68mm].
Parts List
No. PART No. PART NAME Q'TY REMARKS
1 2C0-23495-80 STAY, DAMPER 1
* 2 91317-06025 BOLT, HEX. SOCKET HEAD 1
3 2C0-23488-80 SPACER 1
* 4 91317-08110 BOLT, HEX. SOCKET HEAD 1
5 95607-08100 NUT, U 1
6 2C0-2349T-80 BRKT., DAMPER 1
* 7 90201-07081 WASHER, PLAIN 2
* 8 90149-06302 SCREW 2
9 5VY-26398-00 WASHER, SPECIAL 1
* 10 91317-08025 BOLT, HEX. SOCKET HEAD 1
11 2C0-23439-71 STOPPER, STRG. 2 1
12 90387-06084 COLLAR 1
* 13 90201-07081 WASHER, PLAIN 1
* 14 90149-06302 SCREW 1
15 2C0-23429-70 STOPPER 1
* 16 90151-04002 SCREW, CROSSRECESSED
COUNTERSUNK
2
